System overview

Tensor STB is battery powered and communicates with the Power Focus tightening controller system
through wireless digital communication built on Industrial Radio Communication (IRC) technology.

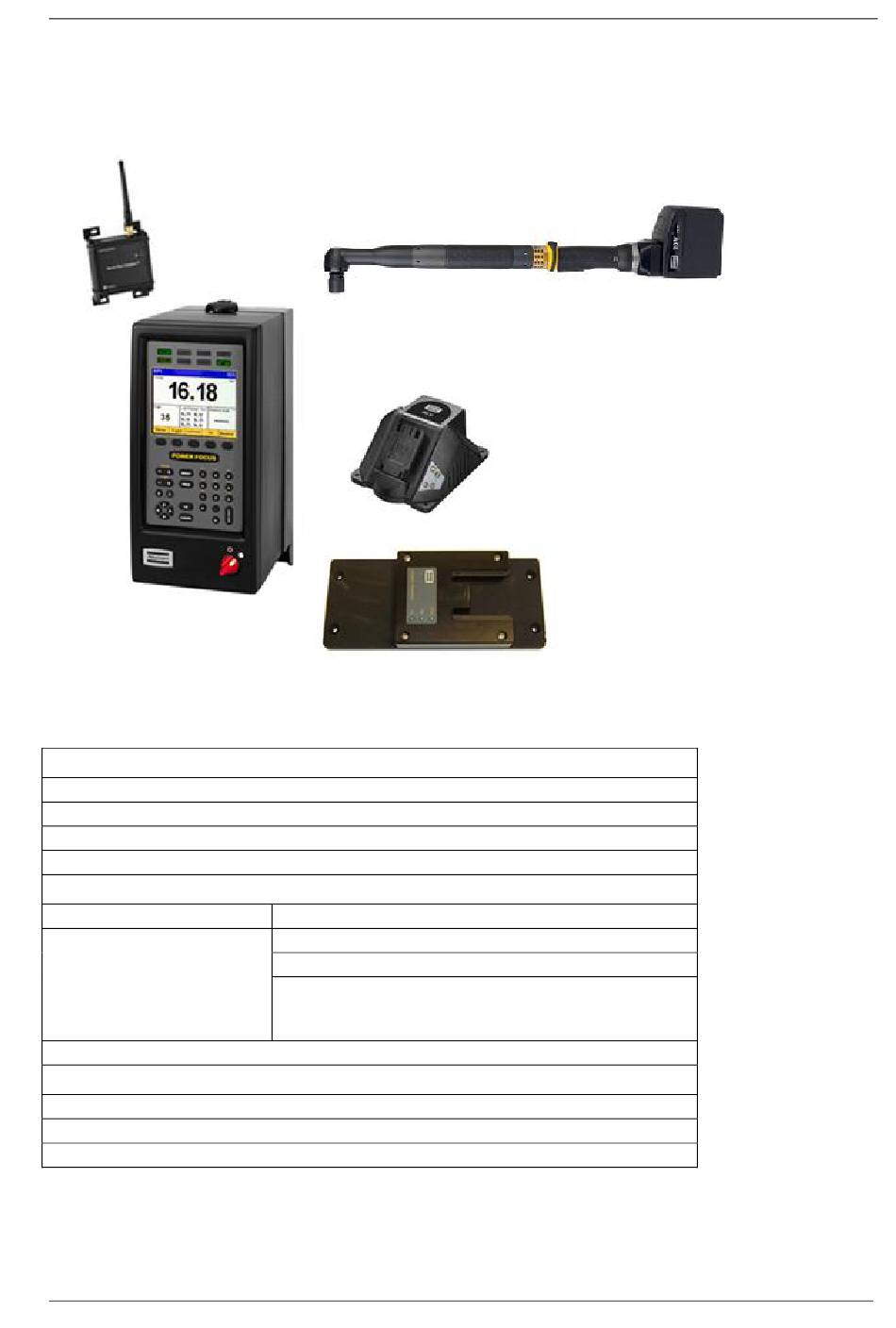

Figure 1 System overview
A Tensor STB system includes the following parts.
Tool
Tensor STB tool
Tool battery
Battery charger
Docking station with power supply and USB cable, for configuration of IRC-W.
Controller options
IRC Focus for IRC-B
RBU (Bronze, Silver or Gold)
Software
Tensor STB software
Power Focus software (W7.5 up to W10.10)
ToolsTalk Service, for configuration of IRC-W settings for infrastructure mode
For compatibility between software versions, see Tensor STB release notes.
9836 3043 01
Power Focus 4000 or 3100
Serial Port Adapter for IRC-B or IRC-W
Serial cable for Power Focus
Power cable for Serial Port Adapter
