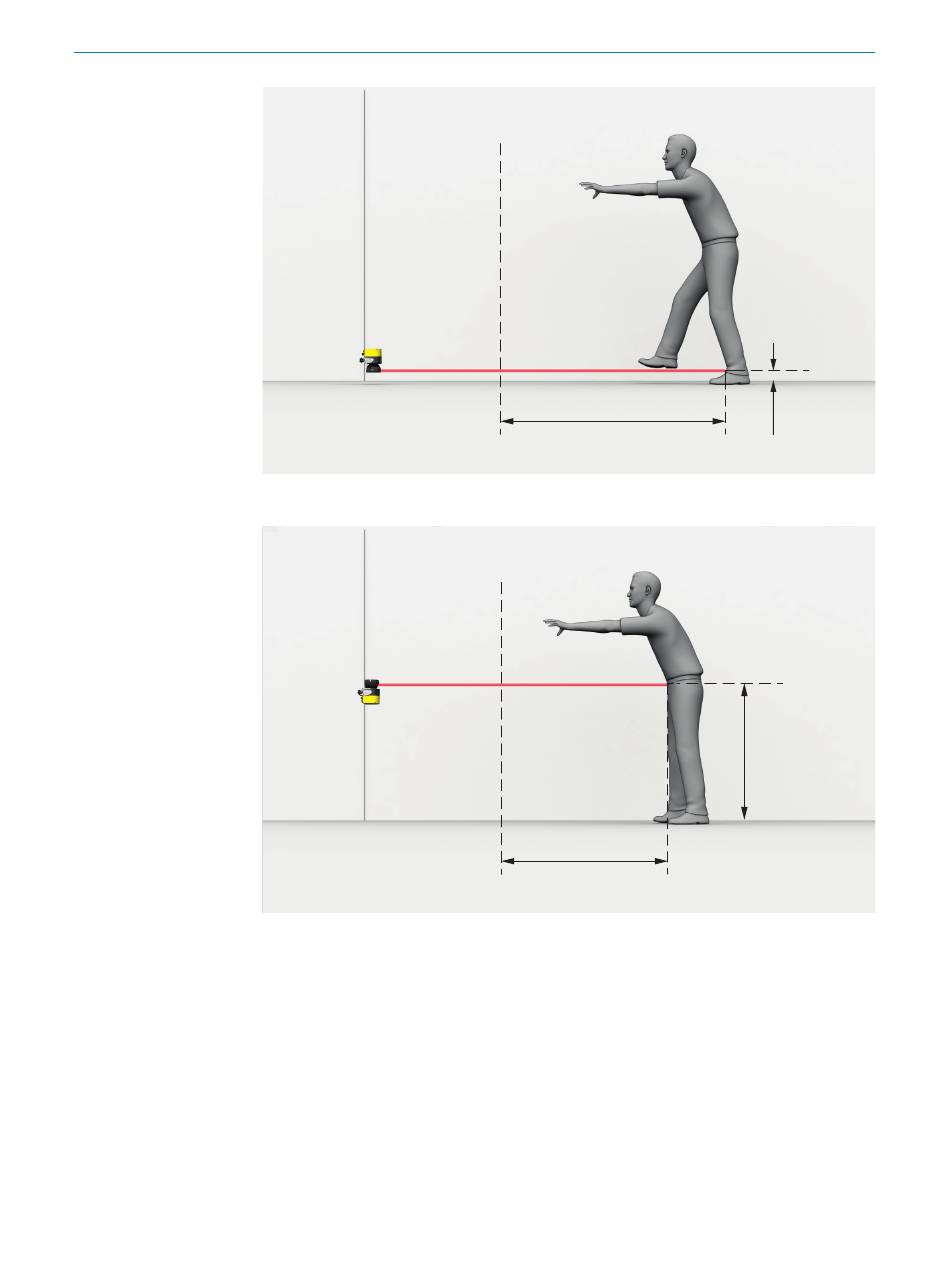

Figure 27: Protection against reaching over when mounted low (dimensions in mm)
Figure 28: Protection against reaching over when mounted high (dimensions in mm)
The necessary supplement to the minimum distance depends on the height of the
protective field's scan plane. The supplement is larger if the safety laser scanner is
affixed low-down than if it is affixed high-up.
Calculating the supplement C
If you have sufficient free space in front of your machine, use value 1,200 mm as
►
the supplement C .
RO
If you want to keep the minimum distance as low as possible, use the following
►
formula to calculate C
C = 1,200 mm – (0.4 × H
RO
where:
H = height of the protective field above the floor in millimeters (mm).
°
D
C = 1200 mm
RO
C = 850 mm
RO
RO
:
RO
)
D
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
PROJECT PLANNING
H ≈ 0 mm
D
H = 875 mm
D
