7.12.1

Using the field editor

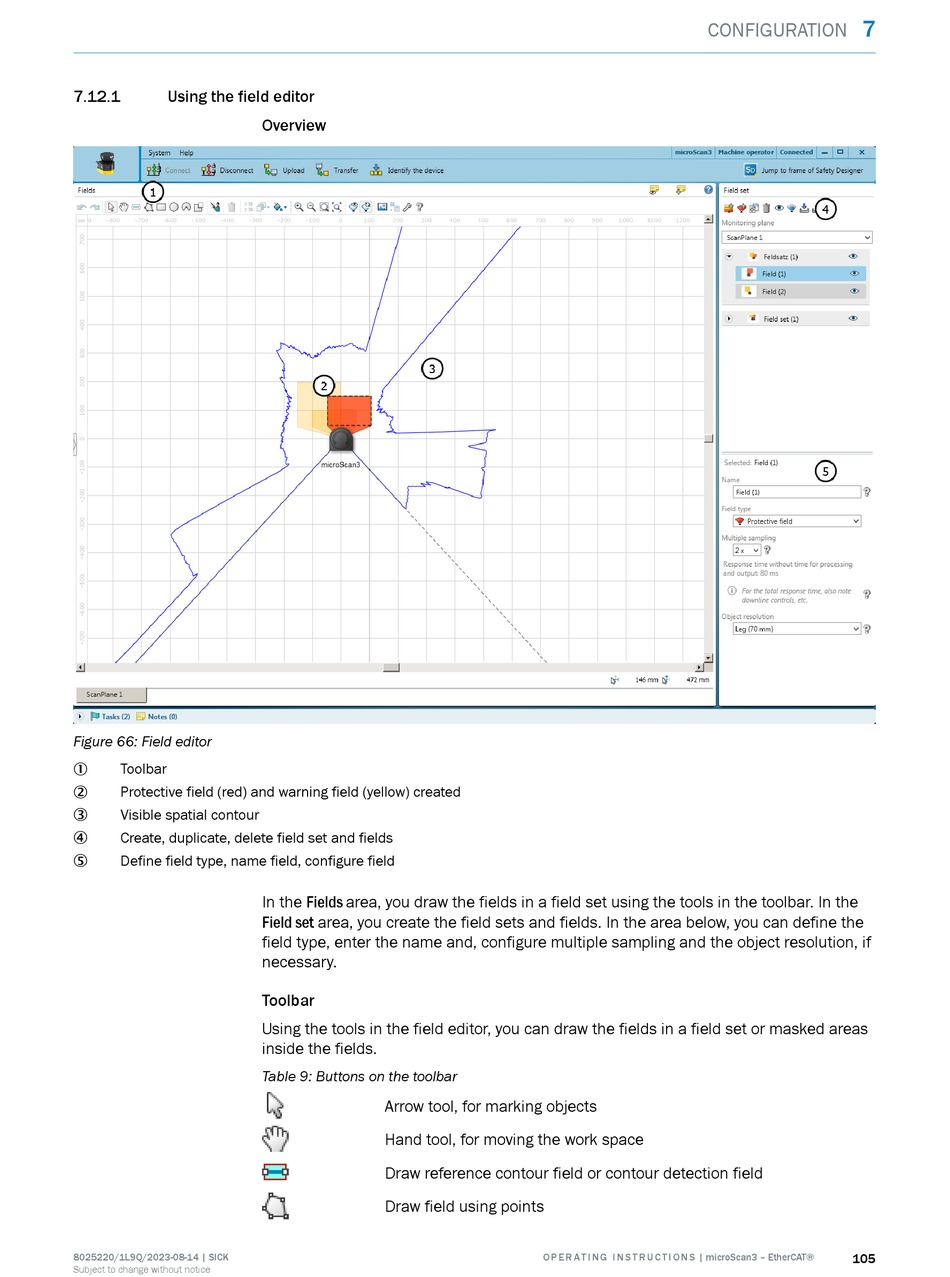

Figure 66: Field editor
Toolbar
1
Protective field (red) and warning field (yellow) created
2
Visible spatial contour
3
Create, duplicate, delete field set and fields
4
Define field type, name field, configure field
5
8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice
Overview
In the Fields area, you draw the fields in a field set using the tools in the toolbar. In the
Field set area, you create the field sets and fields. In the area below, you can define the
field type, enter the name and, configure multiple sampling and the object resolution, if
necessary.
Toolbar
Using the tools in the field editor, you can draw the fields in a field set or masked areas
inside the fields.
Table 9: Buttons on the toolbar
Arrow tool, for marking objects
Hand tool, for moving the work space
Draw reference contour field or contour detection field
Draw field using points
