8.9.1

Using the field editor

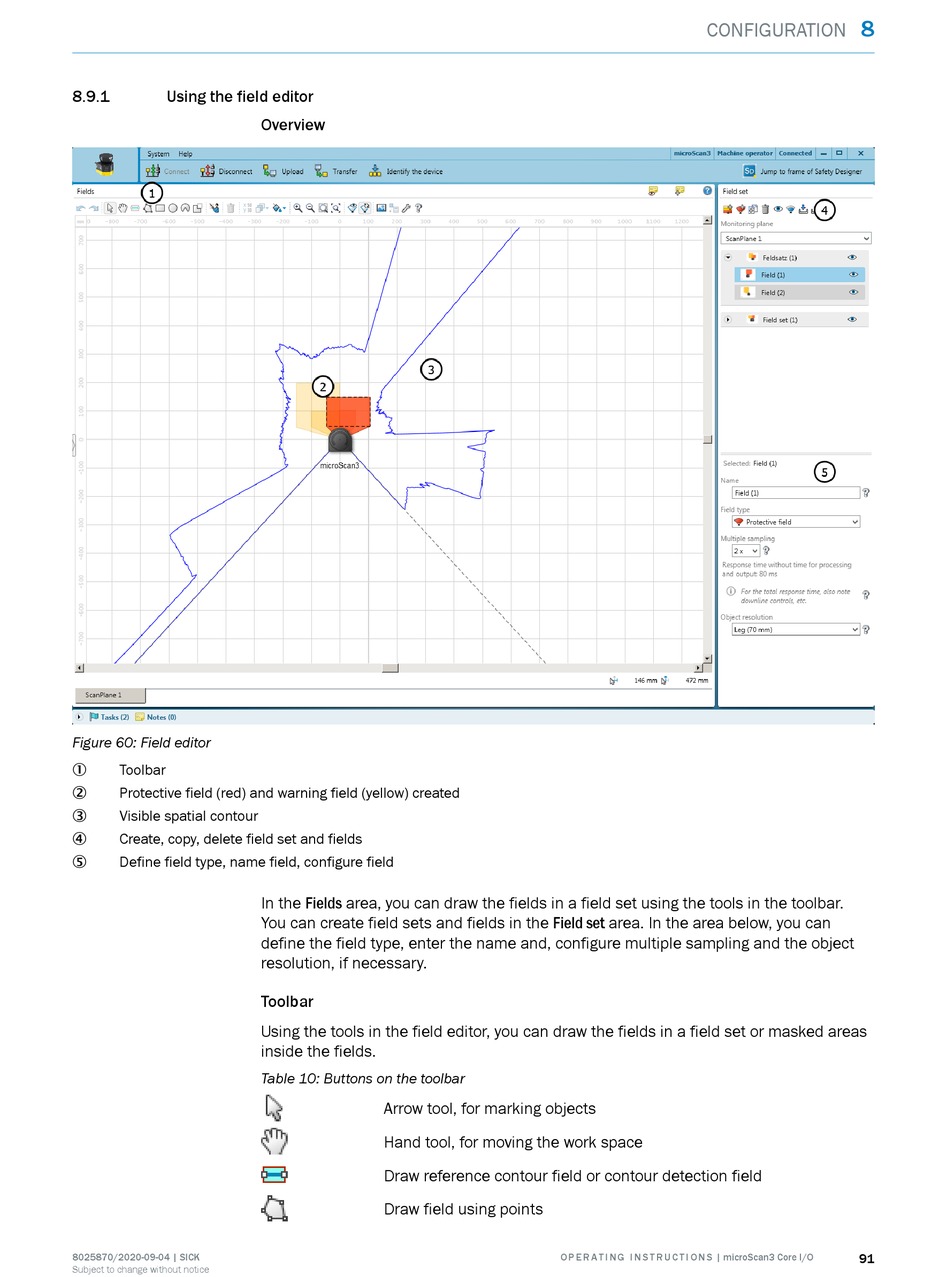

Figure 60: Field editor
Toolbar
1
Protective field (red) and warning field (yellow) created
2
Visible spatial contour
3
Create, copy, delete field set and fields
4
Define field type, name field, configure field
5
8025870/2020-09-04 | SICK
Subject to change without notice
Overview
In the Fields area, you can draw the fields in a field set using the tools in the toolbar.
You can create field sets and fields in the Field set area. In the area below, you can
define the field type, enter the name and, configure multiple sampling and the object
resolution, if necessary.
Toolbar
Using the tools in the field editor, you can draw the fields in a field set or masked areas
inside the fields.
Table 10: Buttons on the toolbar
Arrow tool, for marking objects
Hand tool, for moving the work space
Draw reference contour field or contour detection field
Draw field using points
