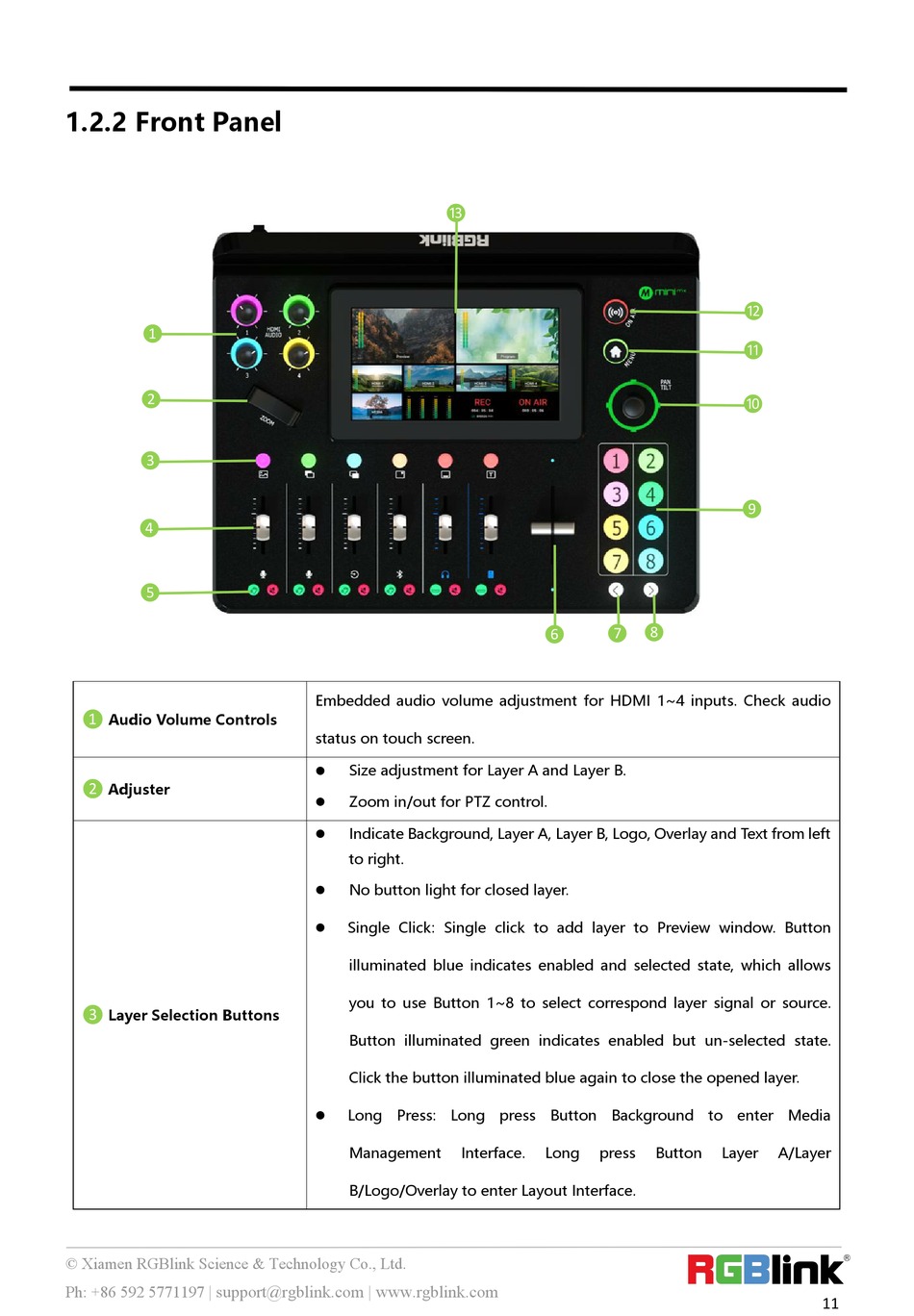

1.2.2 Front Panel

❶
❷
❸
❹
❺
❶
Audio Volume Controls
❷
Adjuster
❸
Layer Selection Buttons
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
⓭
Embedded audio volume adjustment for HDMI 1~4 inputs. Check audio
status on touch screen.
Size adjustment for Layer A and Layer B.

Zoom in/out for PTZ control.

Indicate Background, Layer A, Layer B, Logo, Overlay and Text from left

to right.
No button light for closed layer.

Single Click: Single click to add layer to Preview window. Button

illuminated blue indicates enabled and selected state, which allows
you to use Button 1~8 to select correspond layer signal or source.
Button illuminated green indicates enabled but un-selected state.
Click the button illuminated blue again to close the opened layer.
Long Press: Long press Button Background to enter Media

Management Interface.
B/Logo/Overlay to enter Layout Interface.
❼ ❽
❻
Long press Button
⓬
⓫
❿
❾
Layer A/Layer
