Hardware Orientation

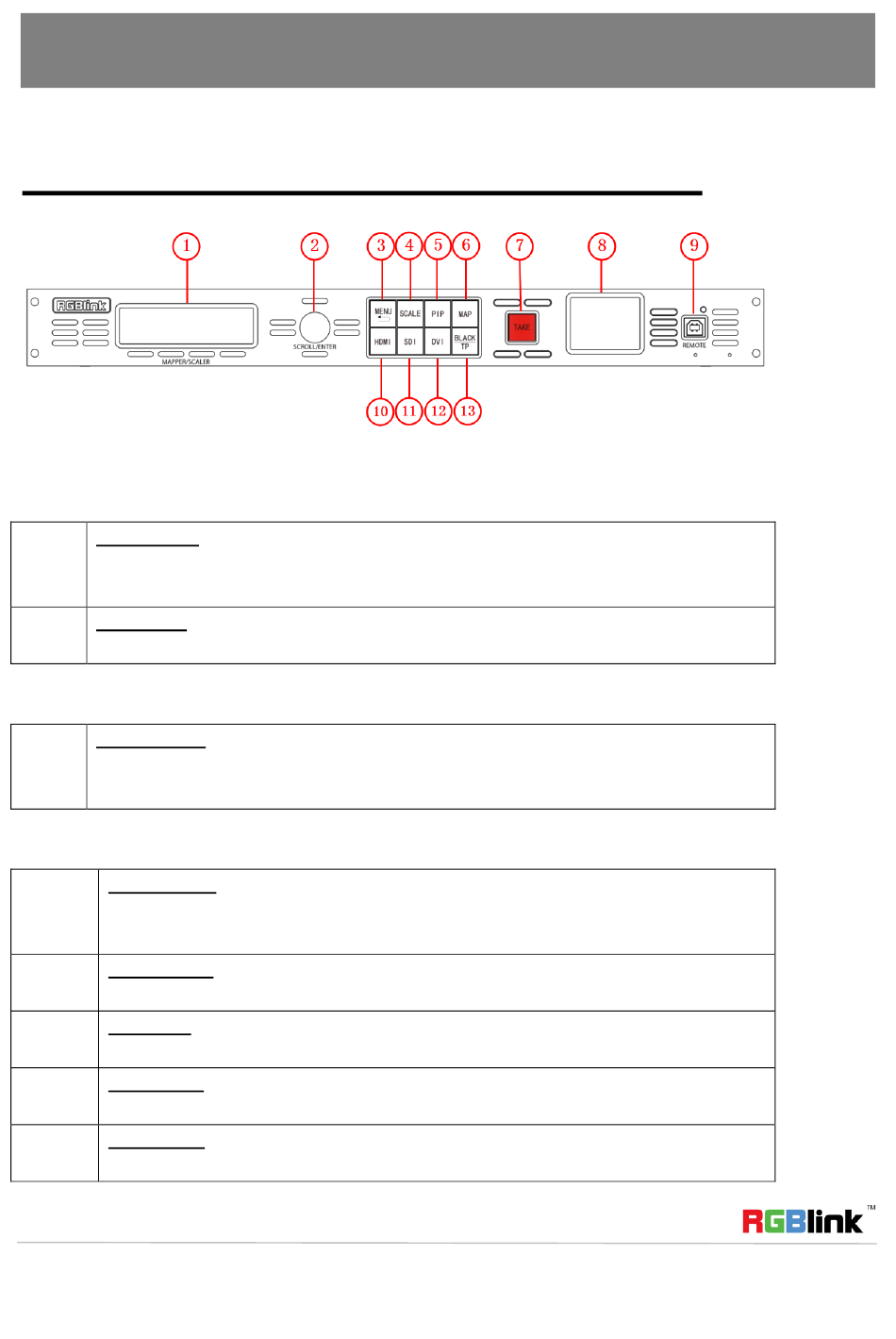

Front Panel
Display
OLED Display
1
Displays current status of the product, and for feature selections provides interactive
choices in conjunction with buttons on the front panel.
LCD Display
8
Displays the video, for preview.
Multi-Function Buttons
Rotary Button
2
This button used for menu selections and confirmation.
The button is both rotary (turn to left and right), and push-button (confirm selection)
Illuminated Buttons
MENU Button
3
This button used for menu selections.
Push the button again will return to the last level menu or exit the menu.
SCALE Button
4
This button used for size and position adjusting.
PIP Button
5
This button used for single and double image switching.
MAP Button
6
This button used for sender card controlling.
TAKE Button
7
This button used for seamless effect switching.
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
4
Tel: 00865925771197
Email: sales@rgblink.com
Fax: 00865925788216
http://www.rgblink.cn
