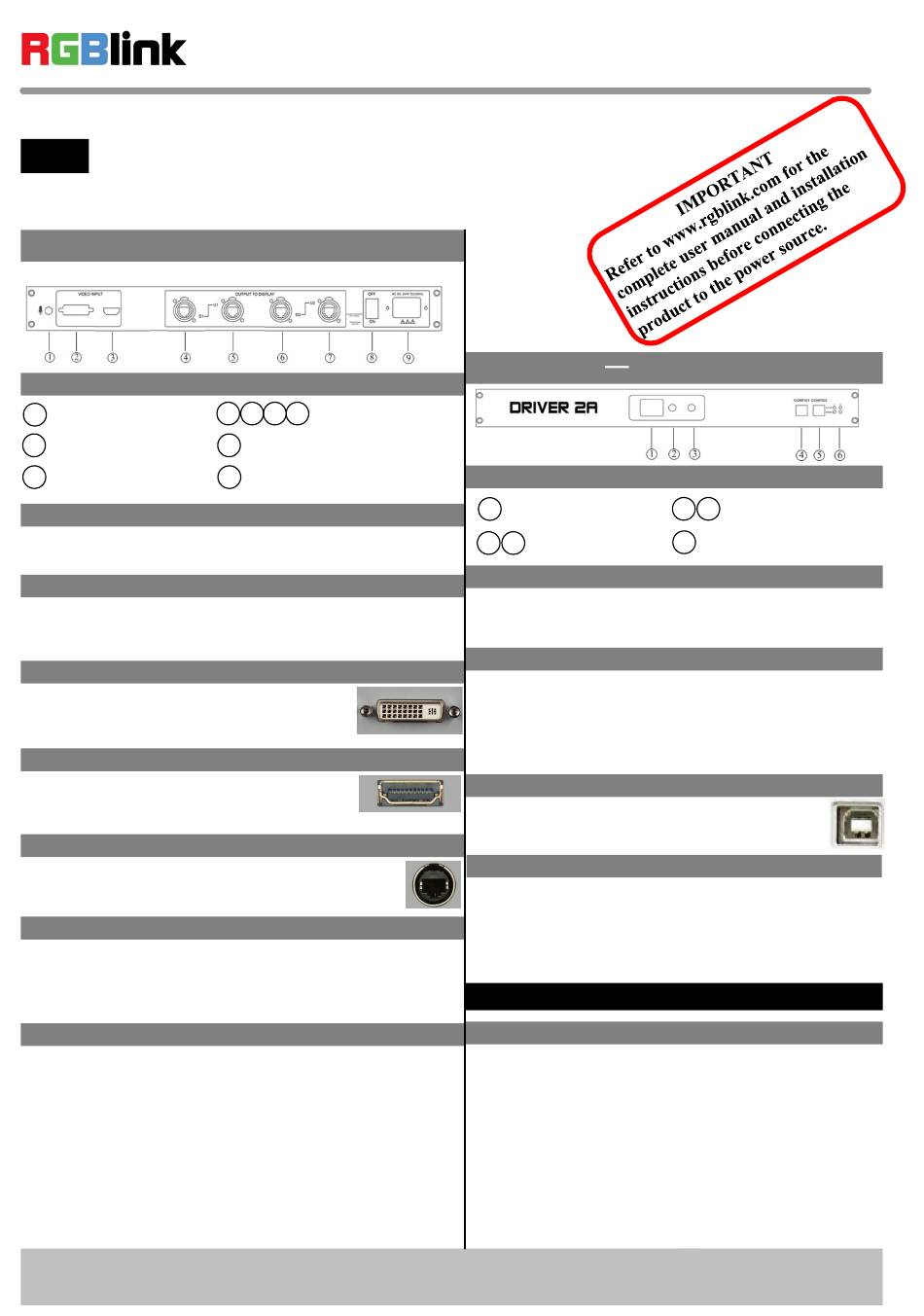

RGBlink Driver 2A Quick Start

Driver 2A
For full installation, configuration, and operation details, please refer to
NOTE
the Driver 2A user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer
to set up and operate the Driver 2A.
Installation and cabling features
Rear Panel
Connections
1
Audio Input Interface
DVI Input Interface
2
3
HDMI Input Interface
Step 1-Mounting
Turn off or disconnect all equipment power sources.
Step 2-Audio Input
Connect to microphone or the device with audio
interface.
Step 3-DVI Input
Use to input DVI from DVI player or
computer with DVI connector.
Step 4-HDMI Input
Can receive video signal from HD player,
DVD and computer.
Step 5-Gigabit Copper Port
Connect to LED screen through cable.
Step 6-Power
Plug in power cord which has IEC connector, Driver 2A
supports AC power from 85 to 264V, 50-60Hz, which
means world wide compatible.
Power On
Connect one end of the power with the device, the other
end into a socket, and push power switch to ON
position. Red power indicator light means the device
works normally.
Address: S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian Province, P.R.C
Tel: 00865925771197
Email: sales@rgblink.com
VIEW SIZE THE WORLD
Quick Start
4 6
Gigabit Copper Port
5 7
Switch
8
9 Power
Fax:00865925771202
http://www.rgblink.cn
Local Control Front Panel Operation
Function Button
1
Nixie Tube
2
3
Function Button
Nixie Tube
Can control the brightness of LED sending card, and
the nixie tube will display the brightness value.
Function Button
Button 2: Down key, can switch to the top level
brightness value.
Button 3: Up key, can switch to the next level
brightness value.
USB Control Port of Sending Card
User can connect PC via USB cable and
control sending card software.
LED Indicator
Red: Power indicator, it lights when device has power
supply.
Green: Signal indicator, it lights when device has
signal input.
Operation Manual
How to connect
Connect the HD player, DVD or computer to the
HDMI input interface with HDMI cable.
Connect the DVI player or computer with DVI
interface to the DVI interface with DVI cable.
Connect the computer to the USB control port of
sending card with USB cable.
Connect the receiving card of LED Display to the
Gigabit Copper Port with cable.
USB control Port of
4 5
Sending Card
6
LED Indicator
Driver 2A Quick Start
Rev 1.0
Page 1 of 2
