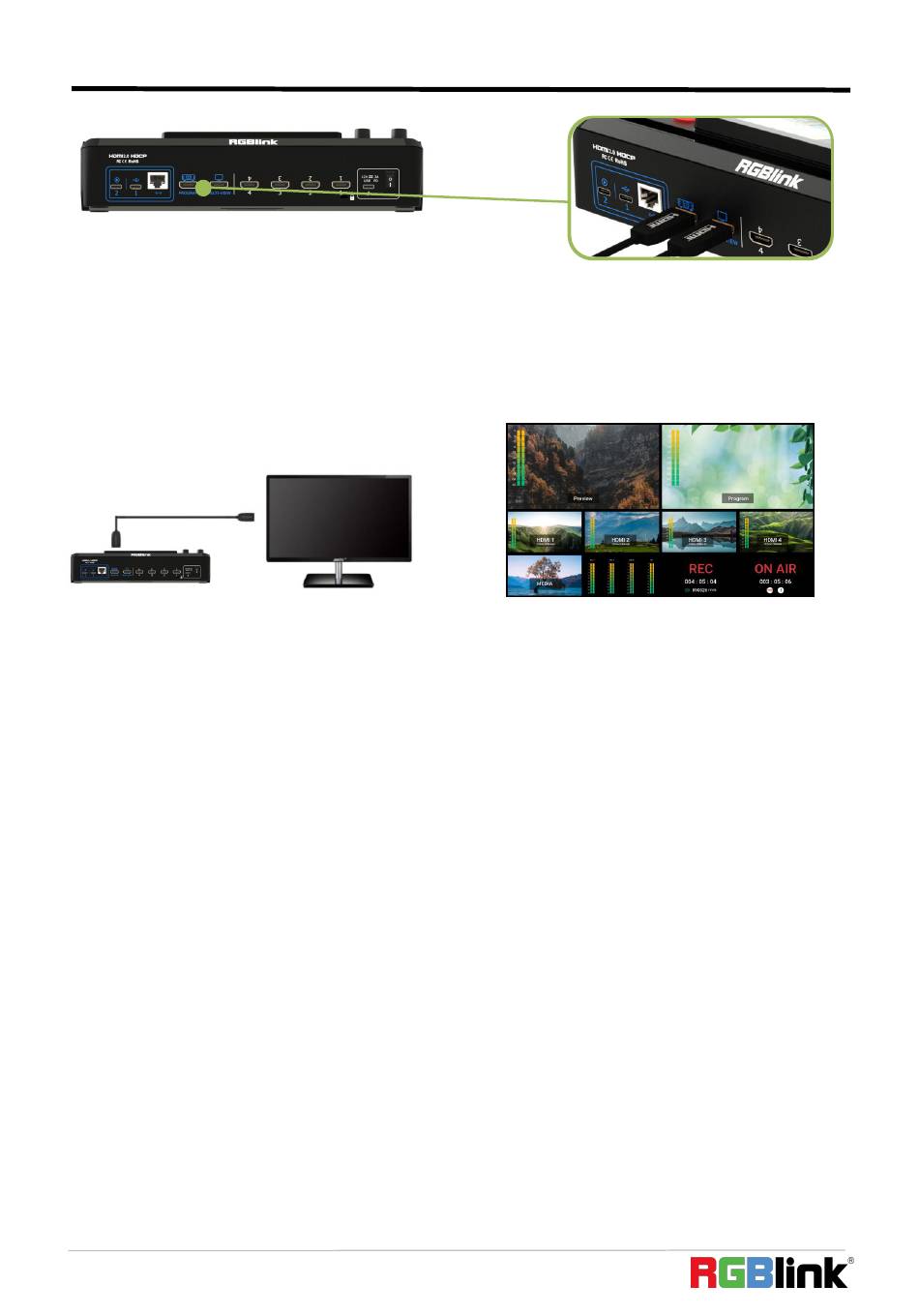

The default output of MULTI-VIEW port is multi-screen Preview view, so user can see the audio
and video conditions of all input signal sources, check current status of each function of mini-mx
and see the Preview view.
Users can switch screen mode and select HDMI output resolution by pressing【OUTPUT】on the
main menu.
MULTI-VIEW supports output in multi-view, HDMI 1~4 signal source or program.
PROGRAM supports output in multi-view, program and test pattern.
2.3 Connecting Microphone and External
Monitoring Devices
On the right panel of mini-mx, there are five audio jacks in total.
mini-mx features THREE high-quality audio input jacks on the right panel, TWO of which adopt
Neutrik jacks (MIC in 1 supports 48V phantom power). The other one adopts Line-in 6.35mm TRS
jack, which can be directly connect to the mobile phone, computer and console.
