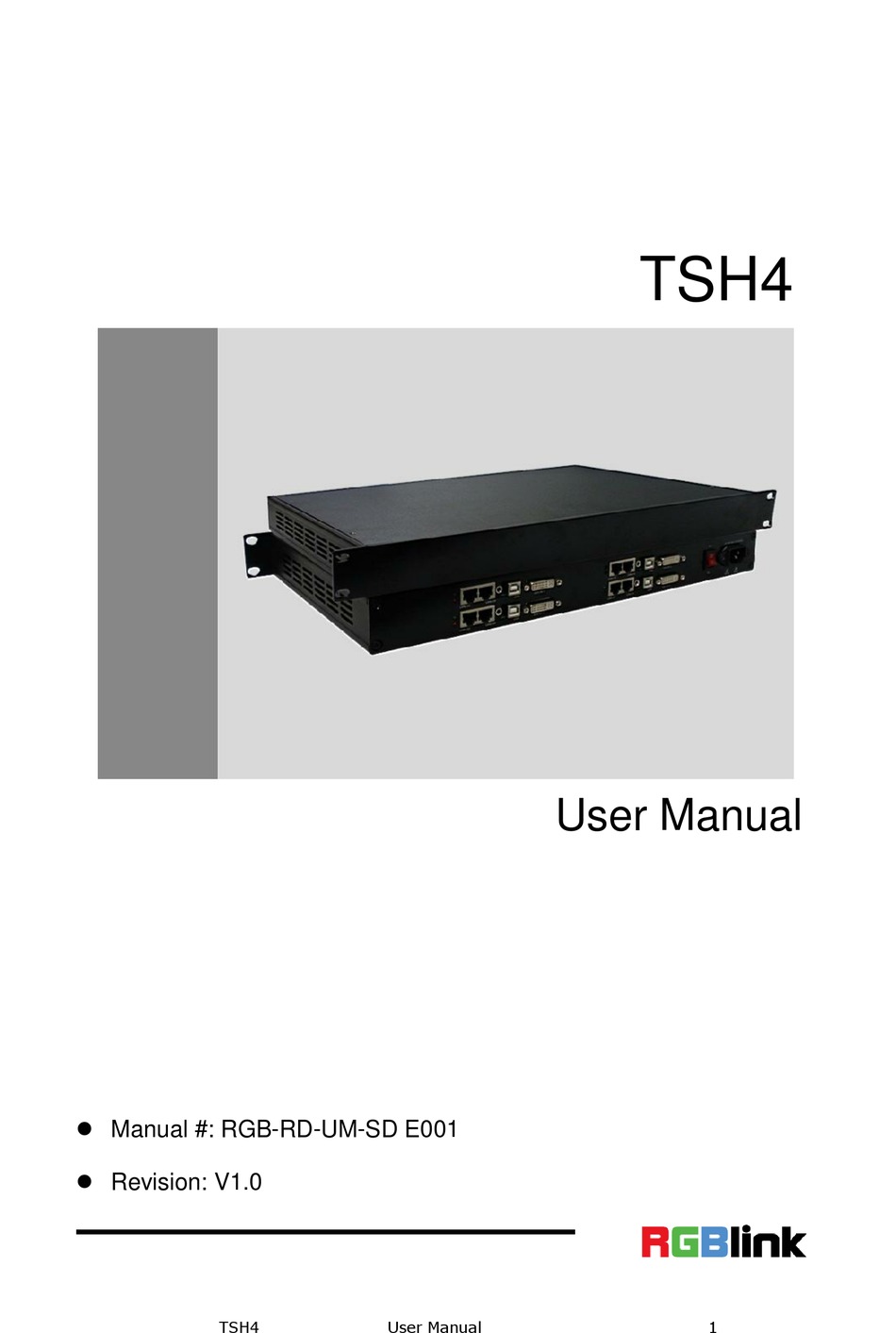

- Page 1 TSH4 User Manual Manual #: RGB-RD-UM-SD E001 Revision: V1.0 TSH4 User Manual...
- Page 2 TSH4· User Manual Thank you for choosing our products! In order to allow you to learn how to use TSH4 quickly, we bring you the detailed user manual. You can read the introduction and directions before using TSH4, please read all the information we provide carefully to use our products correctly.
- Page 3 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period.
- Page 4 Company Address Xiamen RGBlink Science & Technology Co., Ltd. Headquarter: S603~604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C Shenzhen office: Floor 11, A1 Building, Baiwang R&D Building, Shahe West Road, Xili Town, Nanshan District, Shenzhen, Guangdong Province, P.R.C...
- Page 5 To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. TSH4 User Manual...
- Page 6 Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. TSH4 User Manual...
- Page 7 Change History The table below lists the changes to the TSH4. Format Time ECO# Description Principal 2013-12-14 0000 Release Vira TSH4 User Manual...
-
Page 8: Table Of Contents
System Overview ..................19 2. Hardware Orientation ..............21 In This Chapter .................... 21 TSH4 Back Panel ..................22 1、3: Outputs of Sending Card ............... 22 2、4: DVI Input Port of Sending Card ............22 5、6: Power Interface and Switch ..............22 3. - Page 9 5. Common Questions and Solution ........... 28 In This Chapter ..................28 No Output in Large Screen ..............29 Display shows no bottom half part ............29 LED Display Shakes ................29 A Specification ................30 B Contact Information ..............31 TSH4 User Manual...
-
Page 10: Introduction
Introduction This chapter is designed to introduce you to the TSH4 User Manual. Areas to be covered are: Chapter Structure How to Use This Manual Terms and Definitions System Overview Application Questions TSH4 User Manual... -
Page 11: Chapter Structure
1. Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of TSH4 operations: Chapter 1 Introduction Chapter 2 Hardware Orientation Chapter 3 Operation Manual Chapter 4 Hardware Installation Chapter 5 Common Questions and Solution Appendix A... -
Page 12: How To Use This Manual
Use the Table of Contents bookmarks to navigate a desired topic. Click any item to instantly jump to that section of the guide. You can also use the Index to jump to specific topics within a chapter. Each page number in the Index is a hyperlink. TSH4 User Manual... -
Page 13: Terms And Definitions
Telecommunications Wiring Standard. “Color bars”: A standard test pattern of several basic colors (white, yellow, cyan, green, magenta, red, blue, and black) as a reference for system alignment and testing. In NTSC video, the most commonly TSH4 User Manual... - Page 14 “Frame”: In interlaced video, a frame is one complete picture. A video frame is made up of two fields, or two sets of interlaced lines. In a film, a frame is one still picture of a series that makes up a motion picture. TSH4 User Manual...
- Page 15 This alternation helps cancel out phase errors. For this reason, the hue control is not needed on a PAL TV set. PAL, in many transmission forms, is widely used in Western Europe, Australia, Africa, the Middle East, and Micronesia. PAL uses 625-line, TSH4 User Manual...
- Page 16 This is a 10-bit, scrambled, polarity independent interface with common scrambling for both component ITU-R 601 and composite digital video and four channels of (embedded) digital audio. “Seamless Switching”: A feature found on many video switchers. This TSH4 User Manual...
- Page 17 31.5 kHz and vertical frequency of 70 Hz (Mode 1, 2) and 60 Hz (Mode 3). The signal is non-interlaced in modes 1, 2, and 3 and interlaced when using the 8514/A card (35.5 kHz, 86 Hz) in mode 4. It TSH4 User Manual...
- Page 18 640×480 with a color palette of 16 bits and 256,000 colors. “YCrCb”: Used to describe the color space for interlaced component video. “YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component video. TSH4 User Manual...
-
Page 19: System Overview
1. Introduction System Overview System Overview TSH4 can built in 4 sending cards. It supports Linsn 801/802, Nova MSD300, Colorlight Q7 and DBstar Q2011 sending card. Also, it accepts a wide variety of video signals, including computer video, HDTV video. It combines seamless, fade in fade out switching with advanced scaling technologies, which meet the requirements of high quality, high resolution video presentations. - Page 20 1. Introduction Application Questions Application Questions RGBlink offers solutions to demanding technical problems. Any application questions, or required further information, please contact with our customer Support Engineers. Refer to Appendix B for contact details. TSH4 User Manual...
-
Page 21: Hardware Orientation
Hardware Orientation In This Chapter This chapter provides detailed information about the TSH4 hardware. The following topic is discussed: TSH4 Back Panel TSH4 User Manual... -
Page 22: Tsh4 Back Panel
Connect to DVI player or computer with DVI connector. 5、6: Power Interface and Switch AC 100-240V 3A 50/60Hz IEC-3 power interface. Currently, TSH4 is only available for Linsn 801/802, Nova MSD300, Colorlight Q7 and DBstar Q2011 sending card. TSH4 User Manual... -
Page 23: Operation Manual
Operation Manual In This Chapter This chapter provides detailed operation manual about TSH4. The following topics are discussed: How to Connect How to Work TSH4 User Manual... -
Page 24: How To Connect
1. Connect the device or computer with DVI interface to the DVI input port of sending card in above row of TSH4 with DVI cable. 2. Connect outputs of sending card in above row of TSH4 to LED display with cable. -
Page 25: How To Work
How to Work Push power button to ON position, and input DVI signal to DVI inputs of sending card, then outputs of sending card will output the signal to LED display. TSH4 User Manual... -
Page 26: Hardware Installation
Hardware Installation In This Chapter This chapter provides comprehensive installation instruction for TSH4 hardware: Following is the size of TSH4 for your reference: TSH4 User Manual... -
Page 27: Safety Precautions
Unpacking and Inspection Before opening TSH4 shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip. If you find any shortages, contact your sales representative. -
Page 28: Common Questions And Solution
Common Questions and Solution In This Chapter This chapter provides the common questions and solution for TSH4. The following topics are provided: No Output in Large Screen Display shows no bottom half part LED Display Shakes TSH4... -
Page 29: No Output In Large Screen
Sending card input recognition is not correct It usually occurs when use sending card improperly or hot plug. It is normal before, but LED display shakes after change the output resolution. Generally, it will normally operate if reboot the device. TSH4 User Manual... -
Page 30: A Specification
8（Depend on the sending card quantity） Ethernet interface Connector Supported Resolution 640 x 480@60Hz ~ 2048 x 1152@60Hz（Depend on the sending card） Extras Power Supply AC 100-240V 3A IEC-3 0℃~+40℃ Working Environment Stored Environment 10%~85% Size 480mm*268mm*88mm TSH4 User Manual... -
Page 31: B Contact Information
3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
