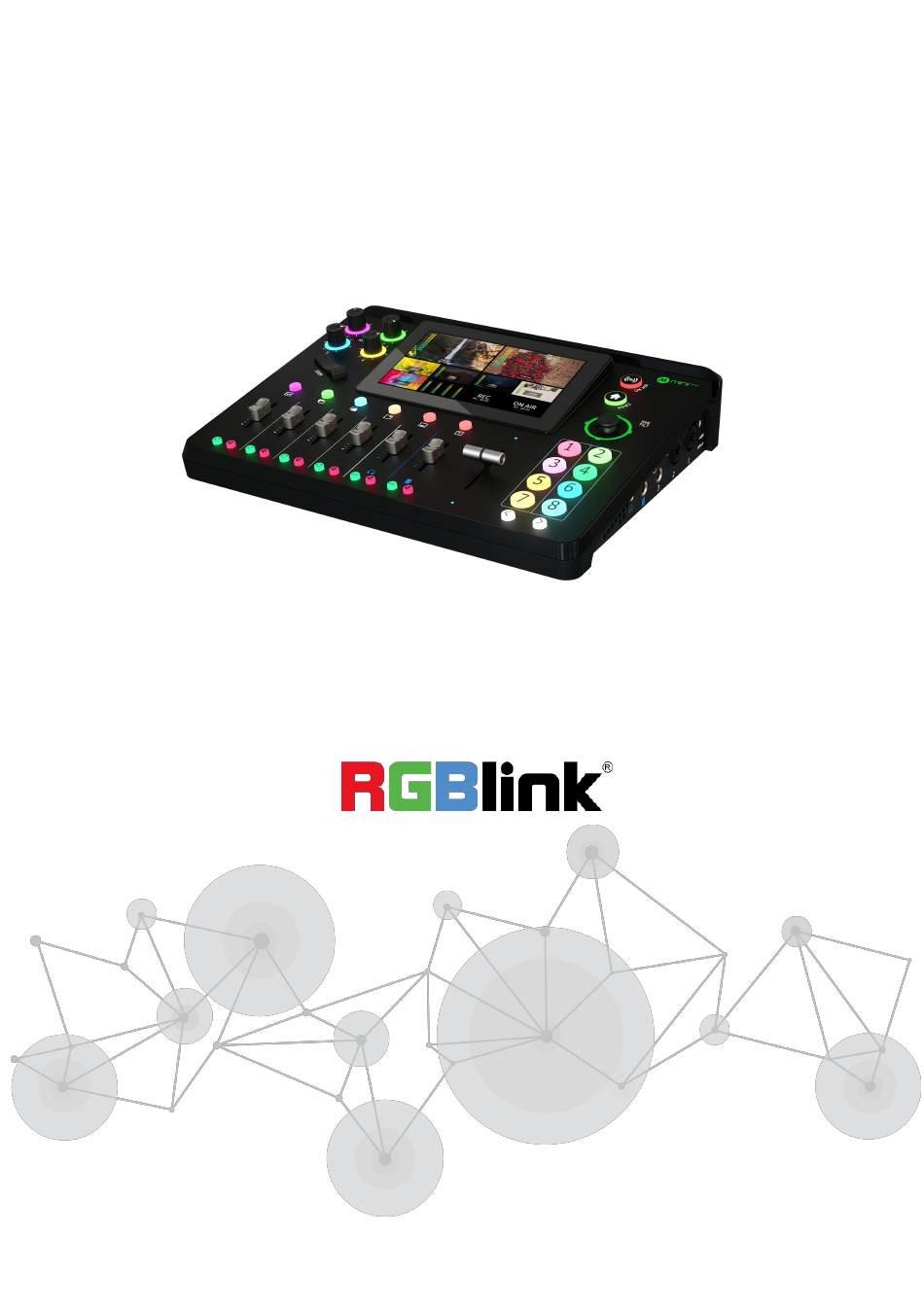

- Page 1 Quick Start...
-
Page 2: Table Of Contents
Preview Interface ....................9 Main Interface ......................10 MENU ........................11 Switch Effect Setting .....................12 PIP ........................12 PTZ Control ......................13 Load and Save ...................... 14 Chroma Key ......................14 Audio Setting ......................15 Video Output ....................... 15 Settings ........................ 16 Contact Information .....................18 mini-mx Quick Start... -
Page 3: About Your Product

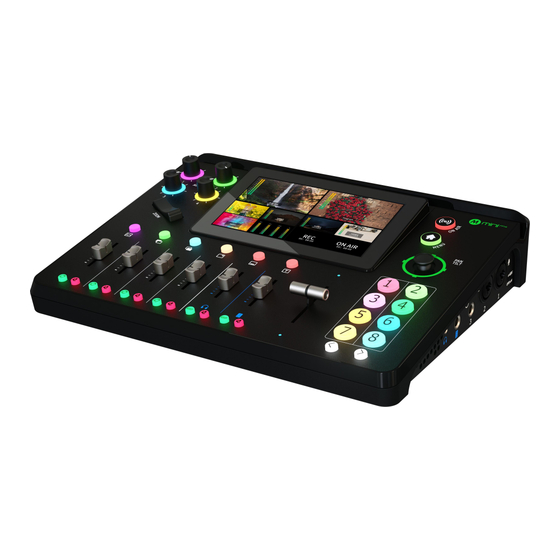

About Your Product Product Overview Mix to the max. The all-in-one mini-mx video enables accessible professional multi-source video productions with cameras, laptops and multiple audio sources. For live presentation and streaming, do it all with ease from the unique and fully featured mini-mx. -
Page 4: Key Features
5-direction joystick for controlling up to 4 PTZ cameras ● Save and store up to 16 scene presets. One-click for preset recall ● Control via computer and software ● Support Chroma Key ● One-key quick switch between portrait and landscape screen mini-mx Quick Start... -
Page 5: Hardware Orientation
●Embedded audio volume adjustment of HDMI 1-4 Audio Volume input signals. User can check audio status via touch Control Knob screen. ●Knob color adjustable. ●Zoom in/out when PTZ control is enabled. Adjuster ●Adjust size of sub-picture when it is under position mini-mx Quick Start... - Page 6 ●PVW and PGM views can be transitioned manually T-Bar by pushing the T-bar bidirectionally from the top to the bottom or from the bottom to the top. Page UP ●Press to return to the previous page. Page Down ●Press to enter the next page. mini-mx Quick Start...
-
Page 7: Interface Panel
●Streaming status can be checked on LCD screen ON AIR through indicator light: steady red shows ON AIR; flashing red shows unstable network ON AIR; unlit shows streaming is finished. 5.5-inch Touch menu operation multi-view window Screen monitoring. Interface Panel mini-mx Quick Start... - Page 8 Name Description ●Audio and video stream output port. ●Connect mini-mx to a laptop for instant recognition UVC (WEBCAM) as webcam for streaming or video conference. ●Use with USB-C cable provided to share network with mobile phone. ● Insert SSD or U disk to USB 3.0 recording output USB-C interface for recording.
-
Page 9: Dimension
●XLR/TRS NEUTRIK MIC IN Port with 48V Phantom MIC IN 1 Power supported. ●48V Phantom Power supported. +48V Dip Switch ●Defaults to OFF. Dimension Following is the dimension of mini-mx for your reference: 280mm × 222.6mm × 63.5mm. mini-mx Quick Start... -
Page 10: Use Your Product
Import pictures、LOGO、texts、videos and other materials. ●Monitor 3 analog audio inputs, including MIC1、MIC2、 Audio Status Monitoring LINE, and 1 Bluetooth audio input. ●Tap to quickly enter audio setting interface. Recording Status Display Check recording duration. Streaming Status Display Check streaming duration. mini-mx Quick Start... -
Page 11: Main Interface
● Icon in green indicates editing status; icon in blue indicates the item is in PVW; ● To close the opened item, tap icon first, wait for light turns into green, then tap it again to close. mini-mx Quick Start... -
Page 12: Menu
LCD screen will quickly enter the main corresponding menu icon and the LCD menu interface. The right part of the screen will enter corresponding interface. screen displays the main menu interface, as shown in the right figure. mini-mx Quick Start... -
Page 13: Switch Effect Setting
2. There are 7 layout options can be 1. Click【PIP】or Button【2】 to enter selected. Click Advanced Setting icon to the menu. adjust Size, Position and ZOOM. Click Reset to restore the value to the default settings. mini-mx Quick Start... -
Page 14: Ptz Control
1. Click 【PTZ】or Button 【3】 number of camera and then set the IP to enter the menu. address ( mini-mx and camera should be in the same LAN ). You can adjust the zoom and focus in the menu. The rotation angle of the... -
Page 15: Load And Save
Button 【 4 】 to enter the current PREVIEW scene in VIEW and click menu. for deletion. 3. Select View to load the saved presets directly. Chroma Key mini-mx Quick Start... -
Page 16: Audio Setting
Audio Setting bar. 2. mini-mx supports audio output mix of multiple channels. You can turn on/off analog audio output and the volume can be adjusted 1. Click 【AUDIO】 or Button 【6】 to enter by Channel Fader. -
Page 17: Settings
4. Click 【 About】 to check device information Four gears for you to choose from, and and upgrade device. Users can also set you can also turn on【Auto】to achieve Auto PVW time and perform Factory Reset. automatic adjustment of the fan speed. mini-mx Quick Start... - Page 18 5. Click【Key Color】to set color and whole 6. 【 Bluetooth 】 defaults to ON. Turn on brightness for buttons of different areas. Bluetooth to make mini-mx be recognized mobile phone. After successful connection of mini-mx and mobile phone, interface will display connected phones.
-
Page 19: Contact Information
All products are designed and tested to the highest quality standard and backed by 1 year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs...
