⓬
ON AIR
⓭
5.5-inch Touch Screen

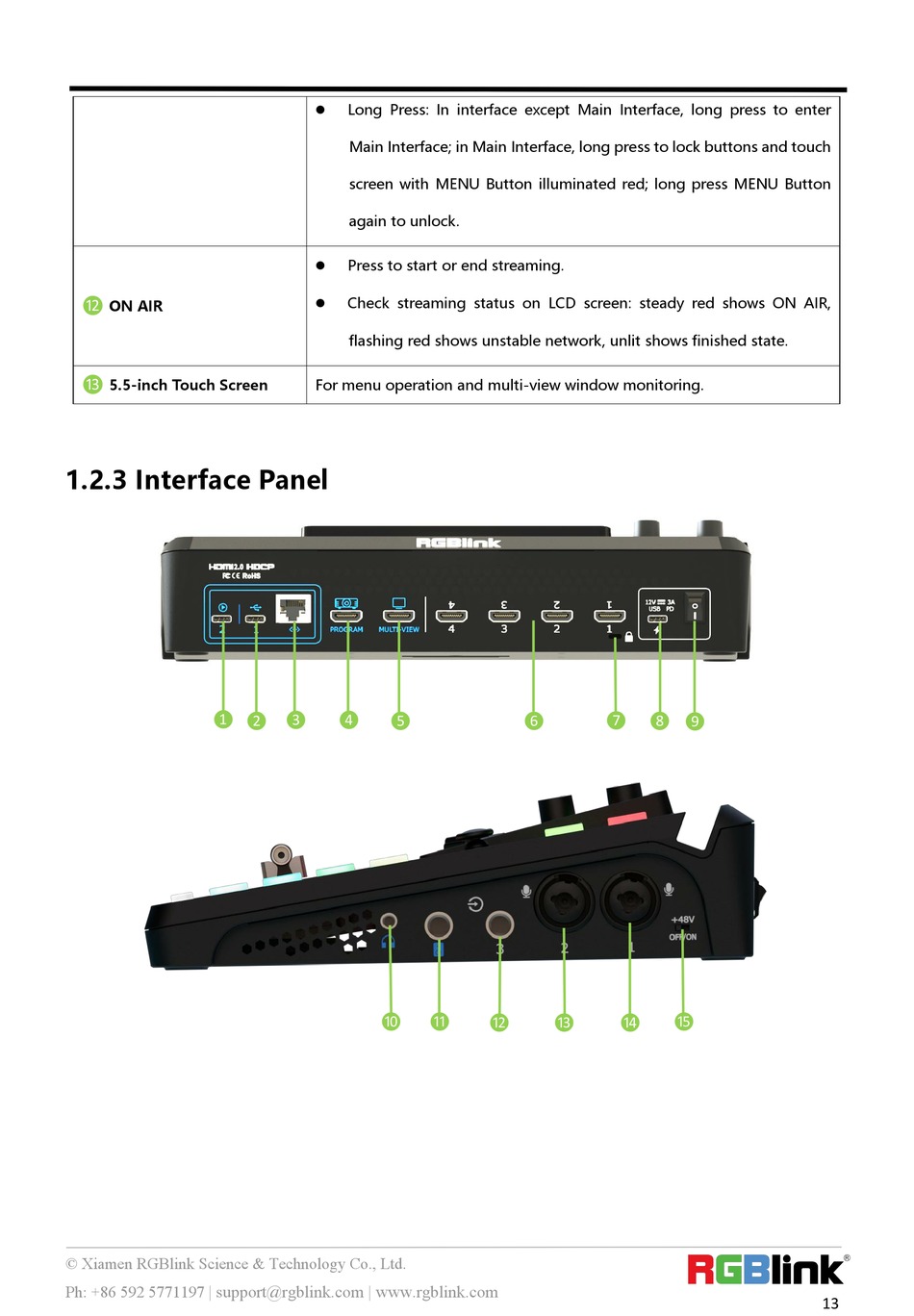

1.2.3 Interface Panel

❶
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
Long Press: In interface except Main Interface, long press to enter

Main Interface; in Main Interface, long press to lock buttons and touch
screen with MENU Button illuminated red; long press MENU Button
again to unlock.
Press to start or end streaming.

Check streaming status on LCD screen: steady red shows ON AIR,

flashing red shows unstable network, unlit shows finished state.
For menu operation and multi-view window monitoring.
❹
❸
❷ ❺
❿
❻
⓫
⓬ ⓭
❼ ❽ ❾
⓯
⓮
