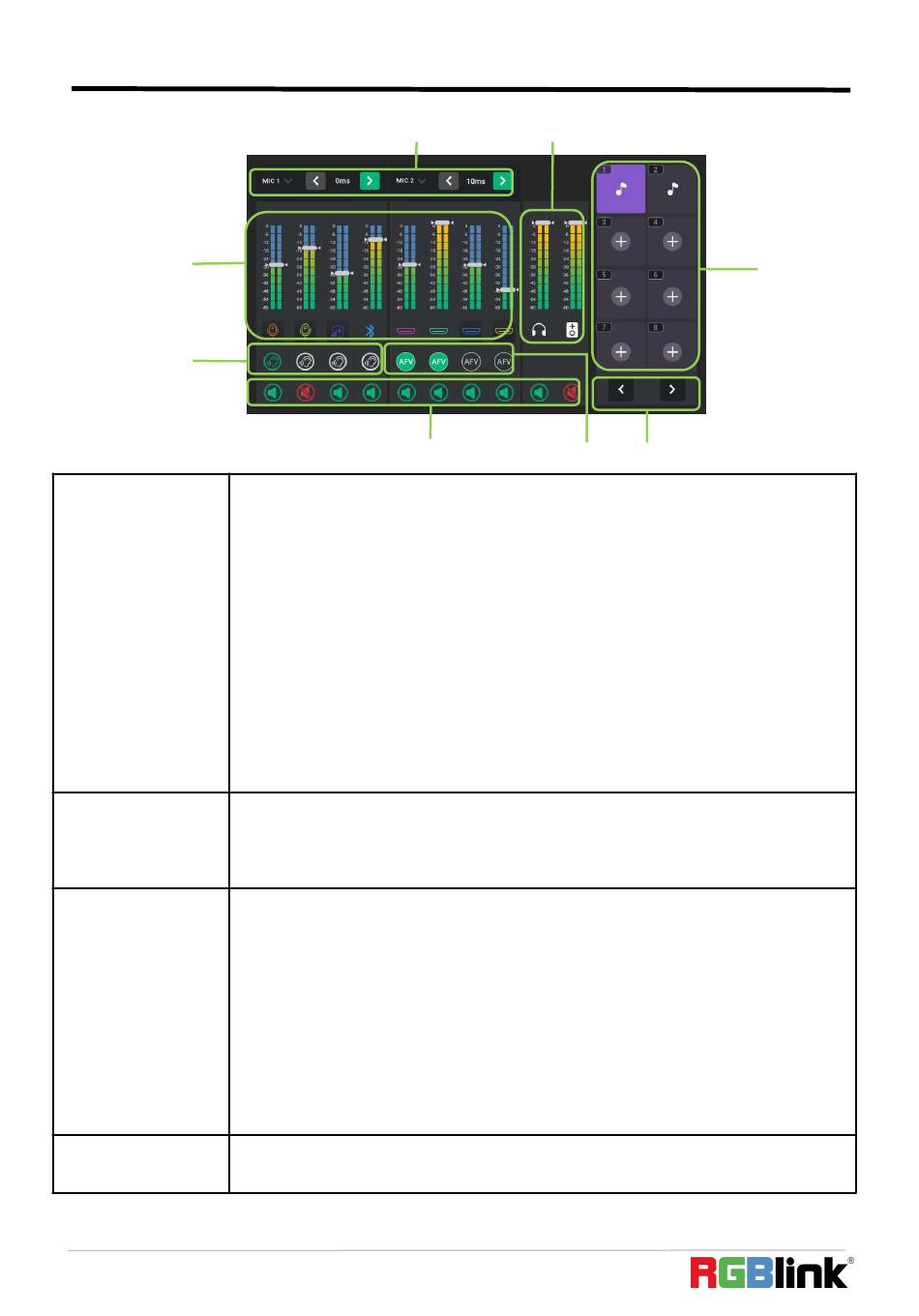

❶ Input Audio Meters
❷ Analog Input
Monitoring Switch
❸ Mute Buttons
❹ AFV
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
❽
● Indicate MIC 1、MIC 2、Line-in、Bluetooth、HDMI 1、HDMI 2、HDMI 3、HDMI 4.
● Icon below virtual slider will display different colors:
- Icon in gray indicates no input for Bluetooth、HDMI 1、HDMI 2、HDMI 3 or HDMI 4.
- Icon in corresponding color indicates there is an active input signal.
● Use channel fader or white virtual slider to adjust volume.
● 1~4 HDMI inputs support embedded audio adjustment via control knob on front panel.
● MIC 1、MIC 2、Line-in、Bluetooth support audio adjustment via channel fader on front
panel.
● Default to OFF.
● Press to turn on with icon illuminated green.
● Press to turn on/off: Icon illuminated green indicates OFF and red indicates ON.
● Mute analog input, the channel is muted only on Program out.
● Mute HDMI input, the HDMI channel is muted on Program out; users can also monitor
audio if there is HDMI input in the Preview out.
● Mute PVW out, audio cannot be captured in Preview out.
● Mute PGM out, audio cannot be captured in Program out.
● AFV stands for audio follows video. Enable AFV, the audio follows the video switch to
