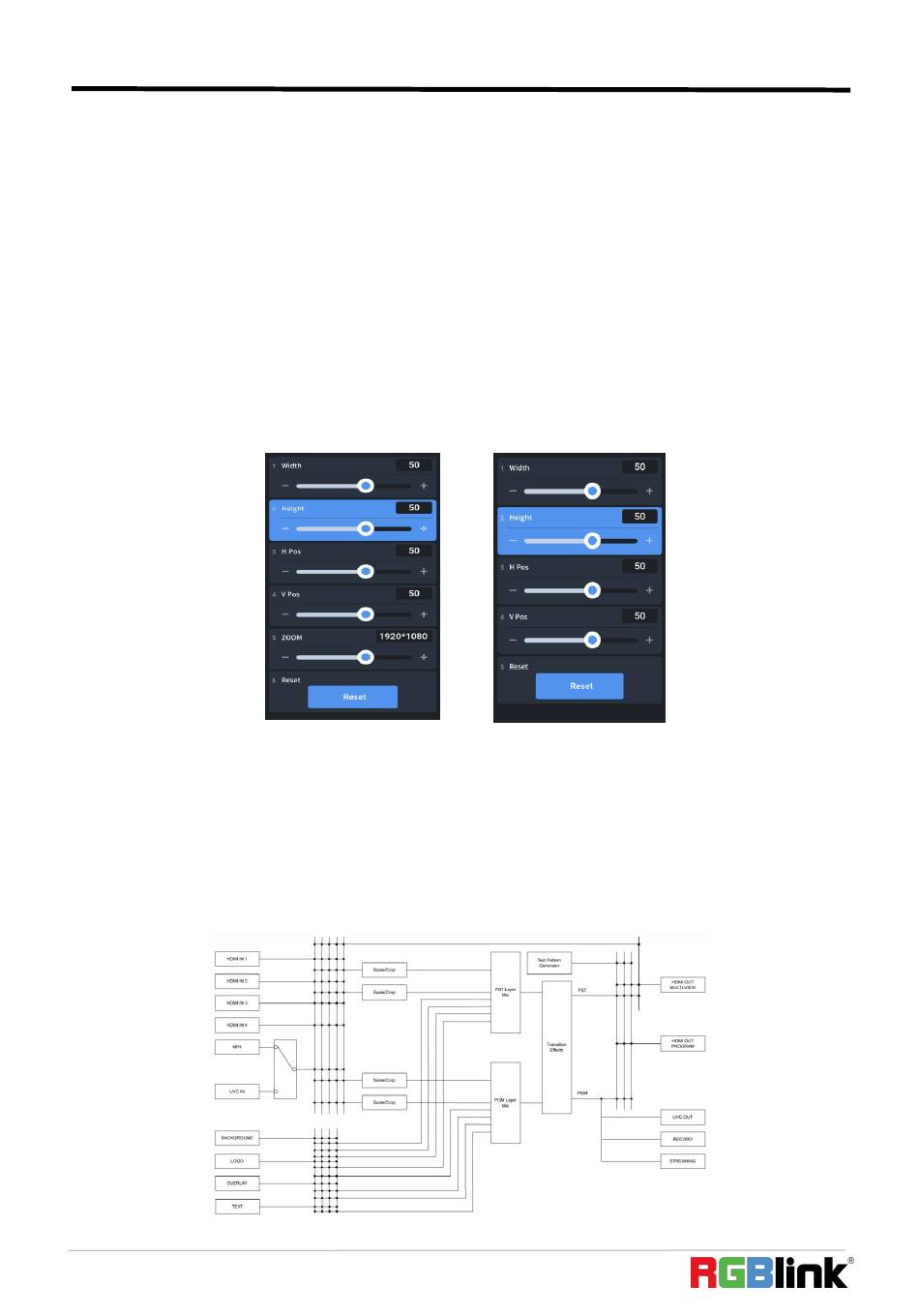

Click Option 【8】 Advanced Setting to do more specific parameter settings for layer cropping and
scaling. As shown in the figures below, use joystick to choose item and then do settings by using
slide bar or adjuster.
In Layer Scaling interface, users can adjust Width, Height, Horizontal Position, Vertical Position
and set Zoom ratio.
In Layer Cropping interface, Width, Height, Horizontal Position and Vertical Position can be set.
Click Reset at the bottom to clear wrong settings so as to restore to the default values.

3.5 Adding Layers

mini-mx allows users to import layers, such as BACKGROUND, LOGO, OVERLAY, etc. You can refer
to Video Diagram below for application.
