Summary of Contents for RGBlink mini-mx

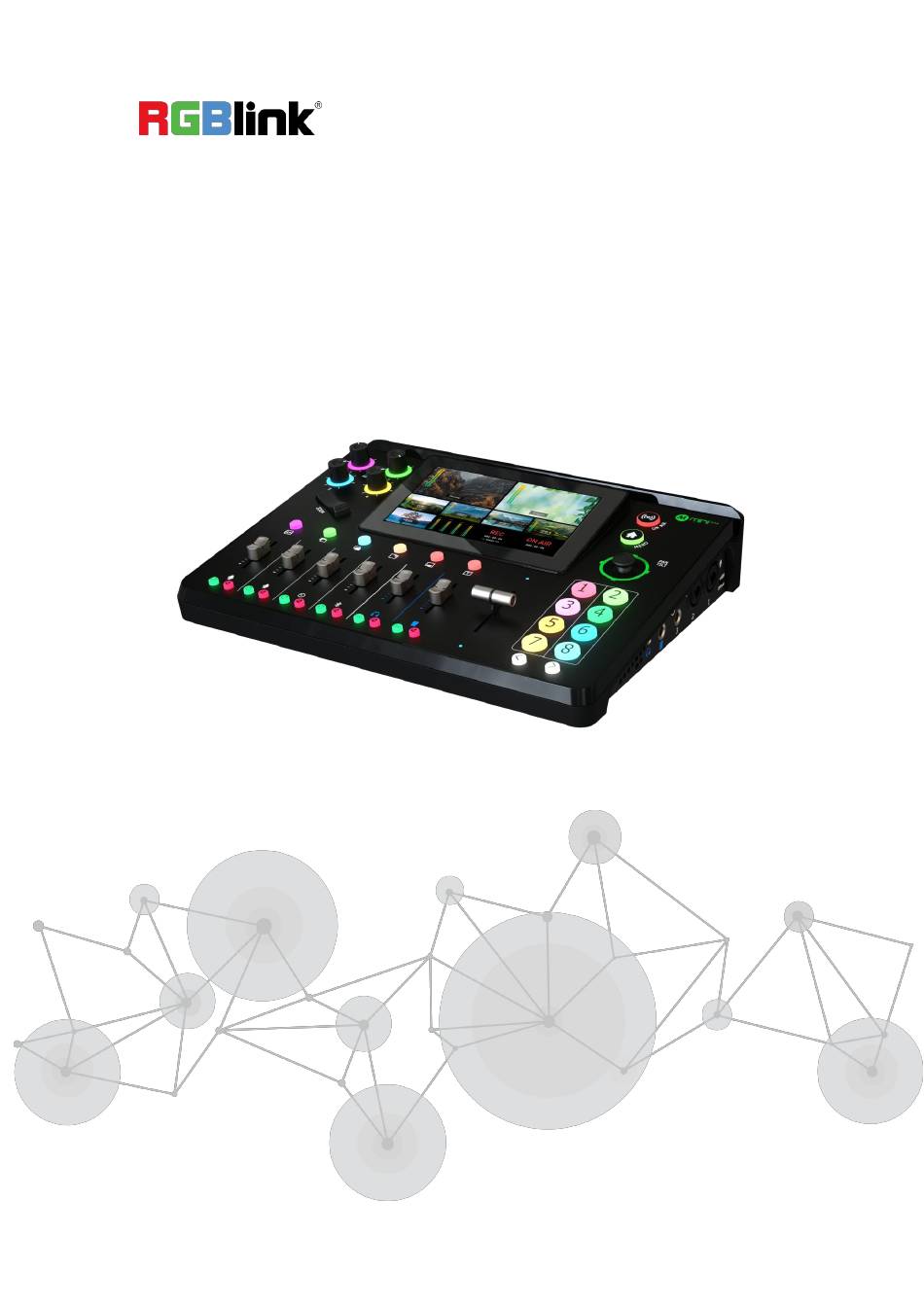

- Page 1 Streaming Video Mixer Quick Start...
-
Page 2: Table Of Contents
Content Product Overview .......................... 1 Key Features ..........................1 Front Panel ..........................2 Interface Panel ........................5 Using mini-mx ..........................7 Adding Background ......................7 Adding Layer A ........................8 Adding Layer B ........................10 Adding Logo ......................... 11 Controlling PTZ Cameras ....................12 Saving Scenes ........................ -
Page 3: Product Overview
● Save and store up to 16 scene presets. One-click for preset recall ● Support Chroma Key ● One-key quick switch between portrait and landscape screen ● Support web control, compatible with mobile devices and computers, compatible with multiple operating systems www.rgblink.com... -
Page 4: Front Panel
Button illuminated green indicates enabled but un-selected state. Click the button illuminated blue again to close enabled layer. Long Press: Long press Button Background to enter Media Management Interface. Long press Button www.rgblink.com... - Page 5 MENU, click to enter Main Interface; in interface except MENU and Main Interface, click to return back ⓫ MENU Button to previous page. Long Press: In interface except Main Interface, long press to enter Main Interface; in Main Interface, long www.rgblink.com...
- Page 6 Press to start or end streaming. Check streaming status on LCD screen: steady red ⓬ ON-AIR Button shows ON AIR, flashing red shows unstable network, unlit indicates finished streaming state. ⓭ 5.5" HD Touchscreen For menu operation and multi-view window monitoring. www.rgblink.com...
-
Page 7: Interface Panel
Ethernet Port connection for streaming, remote control, upgrade and camera signal transmission. ❹ PROGRAM Output Default to output real-time scene, can set as Multi-view Port Preview or Test Pattern. ❺ MULTI-VIEW Output Default as multi-view preview output, can set as www.rgblink.com... - Page 8 XLR/TRS Neutrik MIC in port with 48V Phantom Power MIC in 1 ⓮ supported. 48V Phantom Power supported. +48V DIP Switch ⓯ Defaults to OFF. Warning： Except condenser microphones that require phantom power, please Turn Off phantom power switch when connecting other devices. www.rgblink.com...
-
Page 9: Using Mini-Mx
Using mini-mx Adding Background Inserting a U Disk Insert a U disk into the USB port labeled number 1 to import background sources. How to enter Background Interface Tap BACKGROUND picture in Source Selection Area 、 long press BACKGROUND icon in Layer Selection Area 、... -
Page 10: Adding Layer A
Adding Layer A Turning on Layer A Push Layer A button on the front panel to edit the layer. This operation also simultaneously enables Layer A. Selecting Input Signal Push Button 1~4 on the front panel to select the input. www.rgblink.com... - Page 11 Select required layout for Layer A and display it on the background. Layer Scaling and Cropping Tap Option 8 to set more specific parameters. Use joystick to choose item and then do settings by using slide bar or adjuster. www.rgblink.com...
-
Page 12: Adding Layer B
Push MENU Button to enter Menu, tap【CHROMA KEY】in Menu to enter the Chroma Key interface. Chroma Key switch defaults to OFF. Turn on Chroma Key to perform matting on Layer B. Warning: Enabling Chroma Key defaults to perform matting on Layer B. www.rgblink.com... -
Page 13: Adding Logo
Warning: Sources should meet the following requirements: 1. No space and symbols in picture name. 2. png (32-bit depth) , resolution within 1920x1080, subject to the actual output resolution. Turning on Logo Push Logo button on the front panel to enable it. www.rgblink.com... -
Page 14: Controlling Ptz Cameras
Use the joystick to quickly adjust the horizontal position and vertical position. Controlling PTZ Cameras Controlling PTZ mini-mx supports simultaneous control of up to four cameras. Warning: Please check if the port number of the controlled camera is set to 1259. If the port number is not 1259, please enter correct port number of controlled camera in the box. -
Page 15: Saving Scenes
PROGRAM window in Main Interface to enter Scene Interface for preset calling or saving. Saving Scenes mini-mx allows user to save 16 presets in total to the corresponding View 1~16. Click for page down. Long press Preview Window in Editing Interface or Main Interface to choose whether to form a static picture of the current scene and save it or not. -
Page 16: Loading And Switching Scenes
PROGRAM window for direct loading. Selecting Switching Effect 15 transition effects available. Selecting Switching Mode mini-mx provides 2 switching mode, including T-Bar PVW Mode and CUT Mode. Tap the Setting icon on Menu or Button 8, then ‘ System ’ > ‘ Mode ’. - Page 17 CUT Mode Use Button 1~4 on the operation board to switch 4 HDMI inputs. The Button 1~4 corresponds to the 4 HDMI inputs one-to-one. www.rgblink.com...
-
Page 18: Audio Mixer
HDMI inputs support embedded audio volume adjustment. Using the Physical and Virtual Faders mini-mx features four physical faders and eight virtual faders. The physical faders function like any other mixer: use the sliders to adjust the level for that channel. -
Page 19: Understanding The Audio Outputs
When“listen”function is triggered, the button on the front panel and icon on the audio setting will be illuminated green. Understanding the Audio Outputs Default Configuration mini-mx comes with two separate outputs, including one Headphone Output and one Program Output. www.rgblink.com... - Page 20 Using the Physical and Virtual Faders mini-mx features two physical faders and two virtual faders. Same operations as described before: use the sliders to adjust the level for the output channel and the virtual fader position will be mirrored in real-time on audio setting interface.
-
Page 21: Streaming And Recording
Choose correct network mode when using local network for streaming. （Tap the Setting icon on Menu or push Button 8, then‘Network’ >‘Network Mode’ >‘Cable’） Recording Connecting a USB Storage Device mini-mx supports recording streaming media content to an external USB storage device, such as U disk or SSD through the USB port labeled number 1. - Page 22 Xiamen RGBlink Science & Technology Co Ltd. ● Tel: +86-592-5771197 ● Fax: +86-592-5788216 ● Customer Hotline: 4008-592-315 ● Web: http://www.rgblink.com ● E-mail：support@rgblink.com ● Headquarter: Room 601A, No. 37-3 Banshang community, Building 3, Xinke Plaza, Torch Hi-Tech Industrial Development Zone, Xiamen, China...
