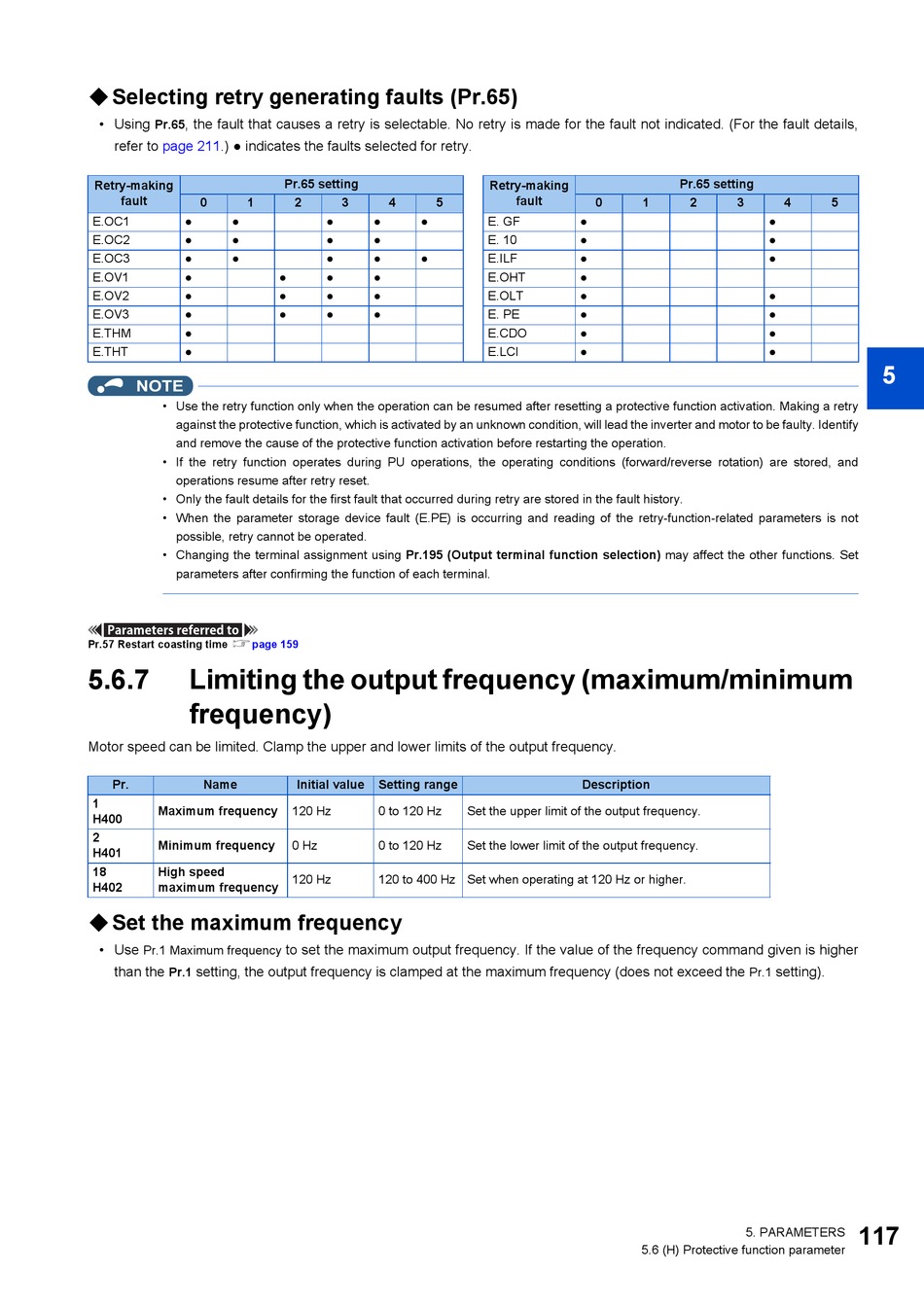

Selecting retry generating faults (Pr.65)
• Using
, the fault that causes a retry is selectable. No retry is made for the fault not indicated. (For the fault details,
Pr.65
refer to
page
211.) ● indicates the faults selected for retry.
Retry-making
fault
0
1
E.OC1
●
●
E.OC2
●
●
E.OC3
●
●
E.OV1
●
E.OV2
●
E.OV3
●
E.THM
●
E.THT
●
NOTE
• Use the retry function only when the operation can be resumed after resetting a protective function activation. Making a retry
against the protective function, which is activated by an unknown condition, will lead the inverter and motor to be faulty. Identify
and remove the cause of the protective function activation before restarting the operation.
• If the retry function operates during PU operations, the operating conditions (forward/reverse rotation) are stored, and
operations resume after retry reset.
• Only the fault details for the first fault that occurred during retry are stored in the fault history.
• When the parameter storage device fault (E.PE) is occurring and reading of the retry-function-related parameters is not
possible, retry cannot be operated.
• Changing the terminal assignment using Pr.195 (Output terminal function selection) may affect the other functions. Set
parameters after confirming the function of each terminal.
Parameters referred to
page 159
Pr.57 Restart coasting time
5.6.7
Limiting the output frequency (maximum/minimum
frequency)
Motor speed can be limited. Clamp the upper and lower limits of the output frequency.
Pr.
Name
1
Maximum frequency
H400
2
Minimum frequency
H401
18
High speed
H402
maximum frequency
Set the maximum frequency
• Use
Pr.1 Maximum frequency
than the
setting, the output frequency is clamped at the maximum frequency (does not exceed the
Pr.1
Pr.65 setting
2
3
4
5
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Initial value
Setting range
120 Hz
0 to 120 Hz
0 Hz
0 to 120 Hz
120 Hz
120 to 400 Hz Set when operating at 120 Hz or higher.
to set the maximum output frequency. If the value of the frequency command given is higher
Retry-making
fault
0
E. GF
●
E. 10
●
E.ILF
●
E.OHT
●
E.OLT
●
E. PE
●
E.CDO
●
E.LCI
●
Description
Set the upper limit of the output frequency.
Set the lower limit of the output frequency.
5.6 (H) Protective function parameter
Pr.65 setting
1
2
3
4
●
●
●
●
●
●
●
setting).
Pr.1
5. PARAMETERS
2
2
5
3
4
5
6
7
8
9
10
117
