2.2

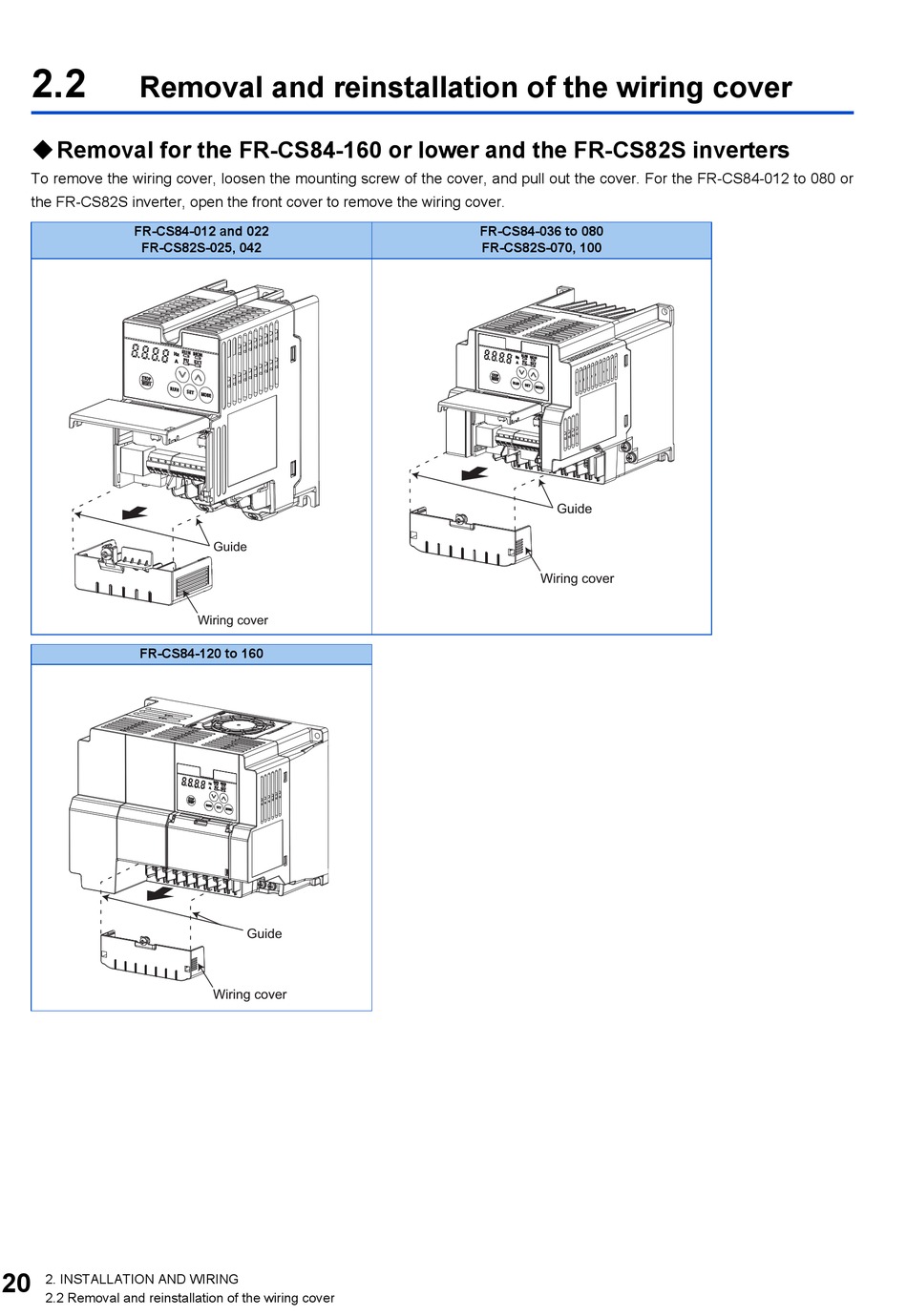

Removal and reinstallation of the wiring cover
Removal for the FR-CS84-160 or lower and the FR-CS82S inverters
To remove the wiring cover, loosen the mounting screw of the cover, and pull out the cover. For the FR-CS84-012 to 080 or
the FR-CS82S inverter, open the front cover to remove the wiring cover.
FR-CS84-012 and 022
FR-CS82S-025, 042
FR-CS84-120 to 160
20
2. INSTALLATION AND WIRING
2.2 Removal and reinstallation of the wiring cover
Guide
Wiring cover
Guide
Wiring cover
FR-CS84-036 to 080
FR-CS82S-070, 100
Guide
Wiring cover
