Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

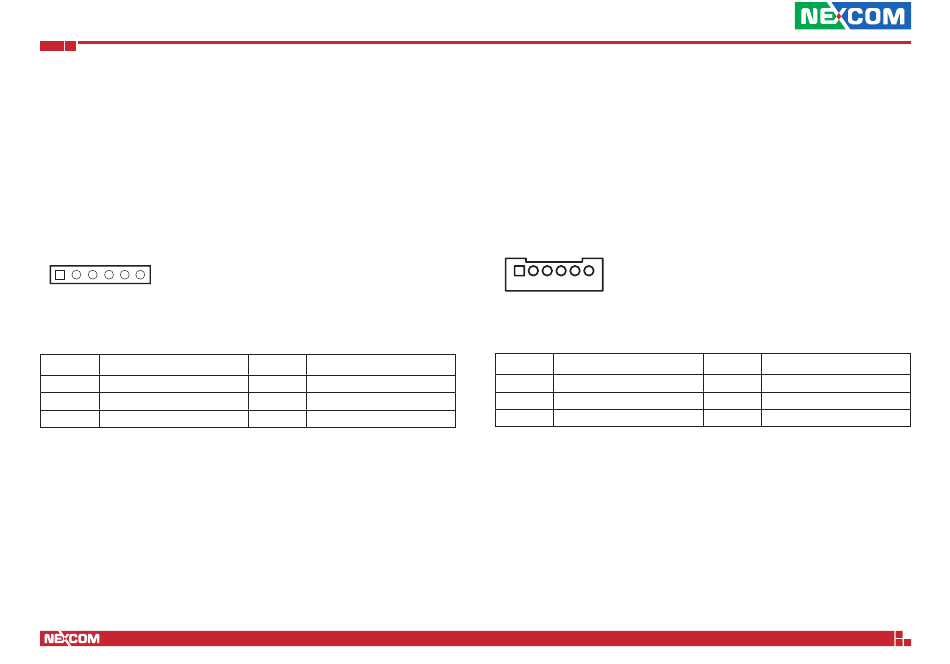

CPLD Burn-in Header

Connector type: 1x6 6-pin Wafer, 2.54mm pitch
Connector location: J1
1 6
Pin Definition
1 P3V3_CPLD
3 JTAG_PLD_TCK
5 JTAG_PLD_TDI
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 JTAG_PLD_TDO
6 JTAG_PLD_TMS

Internal USB Header (For Debugging)

Connector type: 1x6 6-pin header, 2.0mm pitch
Connector location: J11
1 6
Pin Definition
1 5V power
3 USB port2 P
5 USB port4 P
15
Pin Definition
2 USB port2 N
4 USB port4 N
6 GND
