Chapter 2: Jumpers and Connectors

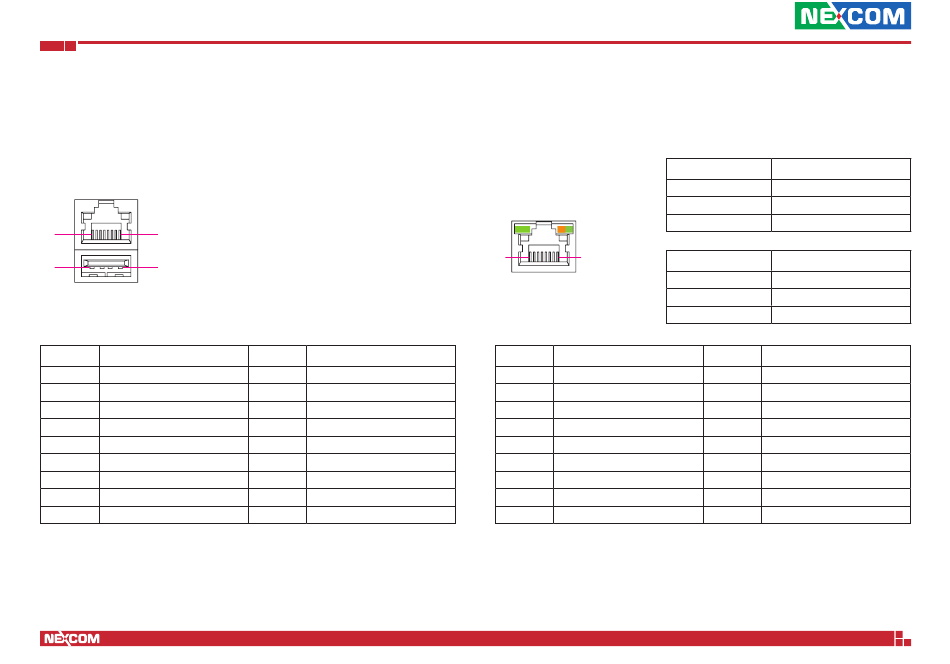

Console and USB Port

Connector type: RJ45 port for RS-232 and USB 2.0, Type A
Connector location: LAN1
12 5
1 4
Pin Definition
1 +5V
3 USB_1P_C
5 RTS (console)
7 TXD (console)
9 GND
11 DSR (console)
MH1 LAN_GND
MH3 LAN_GND
MH5 LAN_GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB_1N_C
4 GND
6 DTR (console)
8 DCD (console)
10 RXD (console)
12 CTS (console)
MH2 LAN_GND
MH4 LAN_GND
MH6 LAN_GND

WAN Port

Connector type: RJ45 with LEDs
Connector location: LAN3
ACT LINK
8 1
Pin Definition
1 Eth0_MDI0P
3 Eth0_MDI1P
5 ESD path
7 Eth0_MDI2P
9 Eth0_MDI3P
11 Eth0 100M_ACT_N
13 Eth0_LINK_N
MH1 LAN_GND
NH1 No connect
11
Act Status
Steady Green Connected
Flashing Green Data activity
Off No activity
Link Status
Steady Orange 1G network link
Steady Green 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 Eth0_MDI0N
4 Eth0_MDI1N
6 ESD path
8 Eth0_MDI2N
10 Eth0_MDI3N
12 Eth0 1000M_ACT_N
14 3.3V power
MH2 LAN_GND
NH2 No connect
