Chapter 2: Jumpers and Connectors

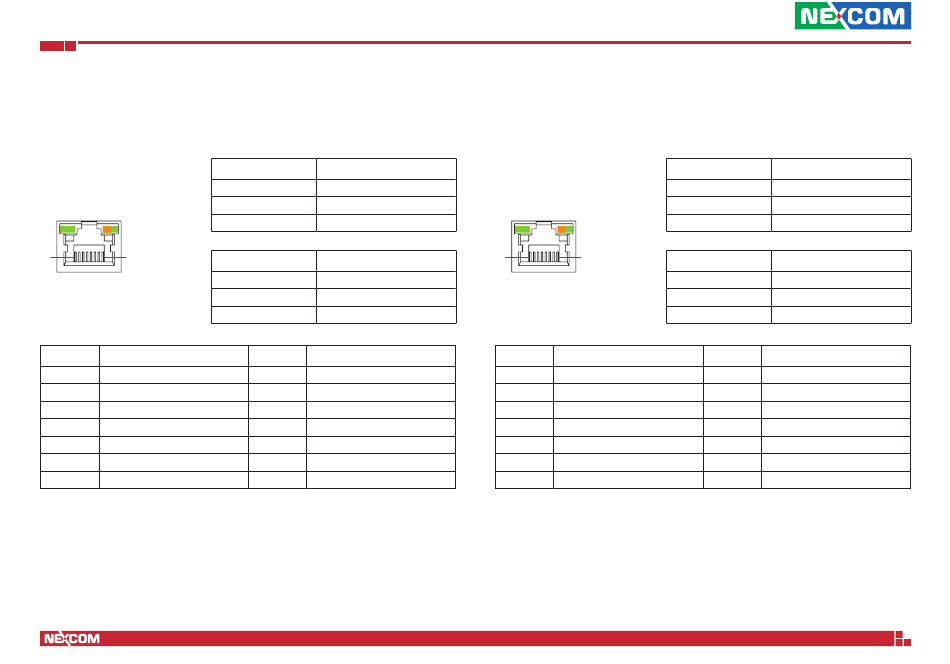

LAN3 Port

Connector type: RJ45 with LEDs
Connector location: LAN2C
ACT LINK
8 1
Pin Definition
C1 Eth3_MDI0P
C3 Eth3_MDI1P
C5 ESD path
C7 Eth3_MDI2P
C9 Eth3_MDI3P
C11 3.3V power
C13 Eth3 100M_ACT_N
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Act Status
Steady Green Connected
Flashing Green Data activity
Off No activity
Link Status
Steady Orange 1G network link
Steady Green 100Mbps network link
Off 10Mbps or no link
Pin Definition
C2 Eth3_MDI0N
C4 Eth3_MDI1N
C6 ESD path
C8 Eth3_MDI2N
C10 Eth3_MDI3N
C12 Eth3_LINK_N
C14 Eth3 1000M_ACT_N

LAN4 Port

Connector type: RJ45 with LEDs
Connector location: LAN2D
ACT LINK
8 1
Pin Definition
D1 Eth4_MDI0P
D3 Eth4_MDI1P
D5 ESD path
D7 Eth4_MDI2P
D9 Eth4_MDI3P
D11 3.3V power
D13 Eth4 100M_ACT_N
13
Act Status
Steady Green Connected
Flashing Green Data activity
Off No activity
Link Status
Steady Orange 1G network link
Steady Green 100Mbps network link
Off 10Mbps or no link
Pin Definition
D2 Eth4_MDI0N
D4 Eth4_MDI1N
D6 ESD path
D8 Eth4_MDI2N
D10 Eth4_MDI3N
D12 Eth4_LINK_N
D14 Eth4 1000M_ACT_N
