Chapter 1: Product Introduction

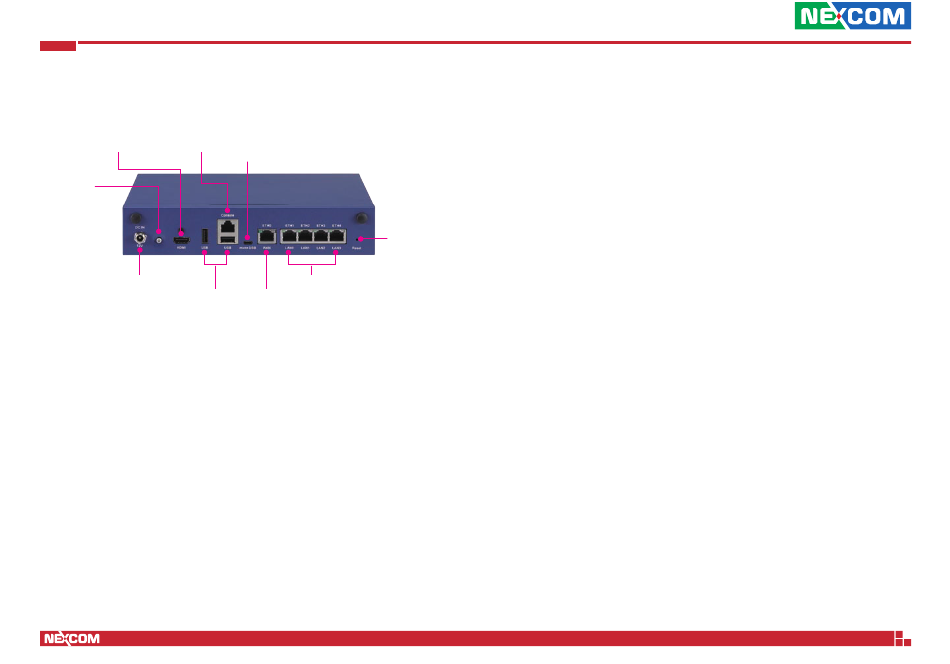

Rear Panel

RJ45
HDMI Console
Power
Button
12V DC
Input USB 2.0
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Micro-USB
Reset
Button
LAN 1 to LAN 4
WAN Ports
Port
12V DC Input
Used to plug a DC power cord.
Power Button
Press to power-on or power-off the system.
HDMI
Used to connect an HDMI interface monitor.
USB 2.0 Ports
Used to connect USB 2.0 devices.
RJ45 Console Port
Used to connect RJ45 type console port.
Micro-USB
Used to connect a Micro-USB interface device.
WAN Port
Used to connect the system to a wide area network.
LAN 1 to LAN 4 Ports
Used to connect network devices.
Reset Button
Press this button to restart the system.
