Figure 2-4. Inverter Control Panel
A LCD Display
B Navigation Keys
C
REbus Status LED
D Inverter LED
E Shutdown
F Shutdown LED
G Internet LED
See 2-4. The PWRcell system is controlled
Figure
through the PWRcell inverter control panel. The inverter
control panel is used for adjusting system settings and for
interacting with devices.
Installation Manual for Generac PWRcell Inverter
C
D
B

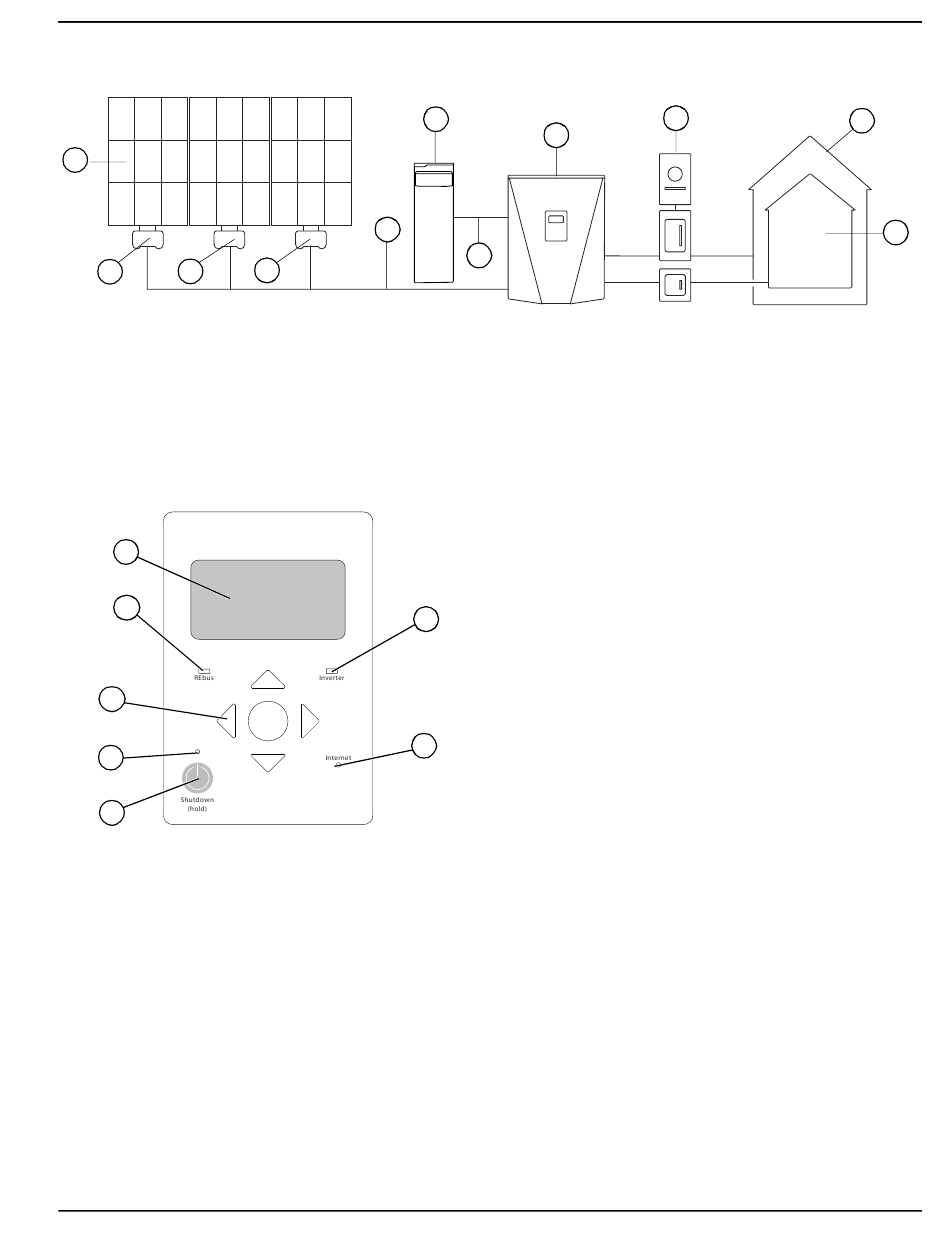

Figure 2-3. Generac PWRcell System Example
D REbus
E PWRcell Inverter
F
Grid
D
G
009894
E
D
G Loads
H Protected Loads
REbus Status LED
REbus Status LED (C) communicates REbus nanogrid
status through LED color.
•
Green – all devices are functioning normally and
are generating power on REbus.
•
Yellow – no PV Links are generating power from
PV on Rebus.
•
Red – one or more REbus device has a fault that
requires attention before operation will continue.
NOTE: A red LED can also indicate a fault with the
REbus wiring itself. See display (A) for more information
about the specific fault detected.
Inverter LED
Inverter LED (D) communicates the status of the utility
grid and / or inverter through LED color and state.
•
Green – utility is connected and within normal
operational voltage and frequency.
•
Yellow – utility grid is not within normal conditions
and the inverter is in a waiting state. User
intervention typically is not required. The inverter
will restart as soon as the utility grid returns to
normal conditions.
•
Red – a serious fault with the utility grid or inverter
has been detected and user attention is required
before the unit will resume operation. See display
(A) for more information about the fault detected.
•
No light – the inverter is disabled, islanded, or
powered off.
