2.0

Installation

This section describes procedures for connecting power, load cells and data communication cables to a 380/381 Synergy Series
indicator. An assembly drawing and parts list are included for the service technician.
WARNING
AVERTISSEMENT
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to state and
local regulations.
ATTENTION: Risque d'explosion si la batterie est remplacée par un type incorrect. Mattre au rebus les batteries usagées
selon les règlements d'état et locaux.
Specified optional power adapters are the only external power sources allowed to be used for the 380/381 Synergy Series
indicators.
• 380-2D ― (PN 206433)
• 381-2D-AA ― (PN 215734)
• 381-2D-NiMh ― (PN 185064) The 381-2D-NiMh cannot be powered on with the adapter connected
IMPORTANT: Leaving the charger attached to the 381-2D-NiMh while not plugged in will discharge the battery even if the
indicator is powered off.
WARNING: Failure to heed the following statements could result in serious injury or death.
• Procedures requiring work inside the product enclosure must be performed by qualified service personnel only.
• Use a grounding wrist strap to protect components from electrostatic discharge (ESD) damage when working inside the
product enclosure.
• The power outlet must be near the equipment and must be easily accessible.
2.1

Unpacking

Immediately after unpacking, visually inspect the 380/381 to ensure all components are included and undamaged. The 380
shipping carton contains the indicator, this manual and a parts kit
a power adapter, the stand and a quick start guide. If parts were damaged in shipment, notify Rice Lake Weighing Systems and
the shipper immediately.
2.2

380 Product Dimensions

B
C
A
9.50 in (241 mm)
Risk of electrical shock.
Risque de choc.
D
A
ZERO GROSS TARE
PRINT
NET UNITS
T
B/N

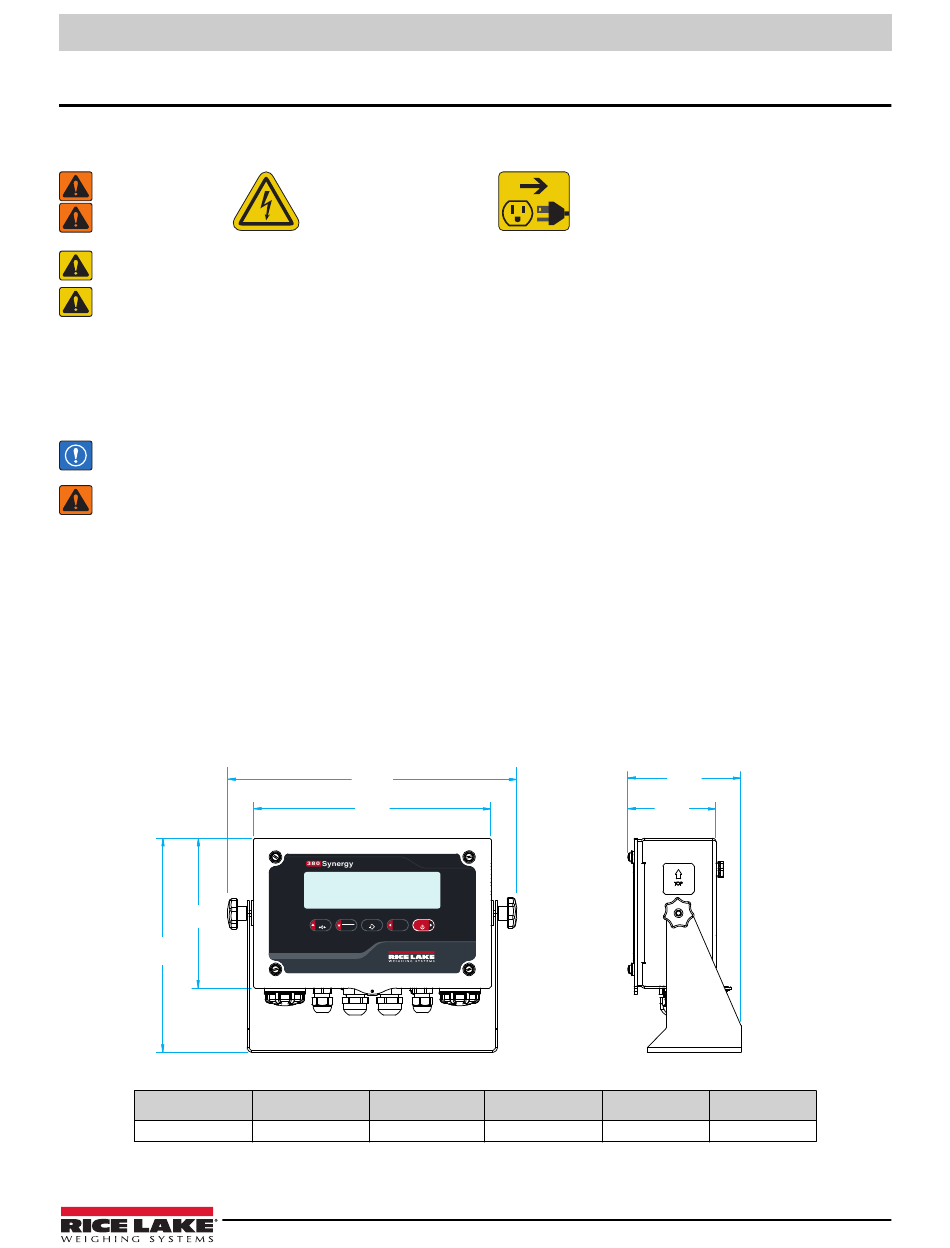

Figure 2-1. 380 Product Diagram
B C
6.00 in (152 mm) 8.57 in (218 mm)
Table 2-1. 380 Product Dimensions
© Rice Lake Weighing Systems ● All Rights Reserved
Disconnect power before servicing.
Débranchez l'alimentation avant l'entretien.
(Section 2.11 on page 20). The 381 shipping carton contains
F
D E
11.58 in (294 mm) 4.53 in (115 mm) 3.53 in (90 mm)
Installation
E
F
