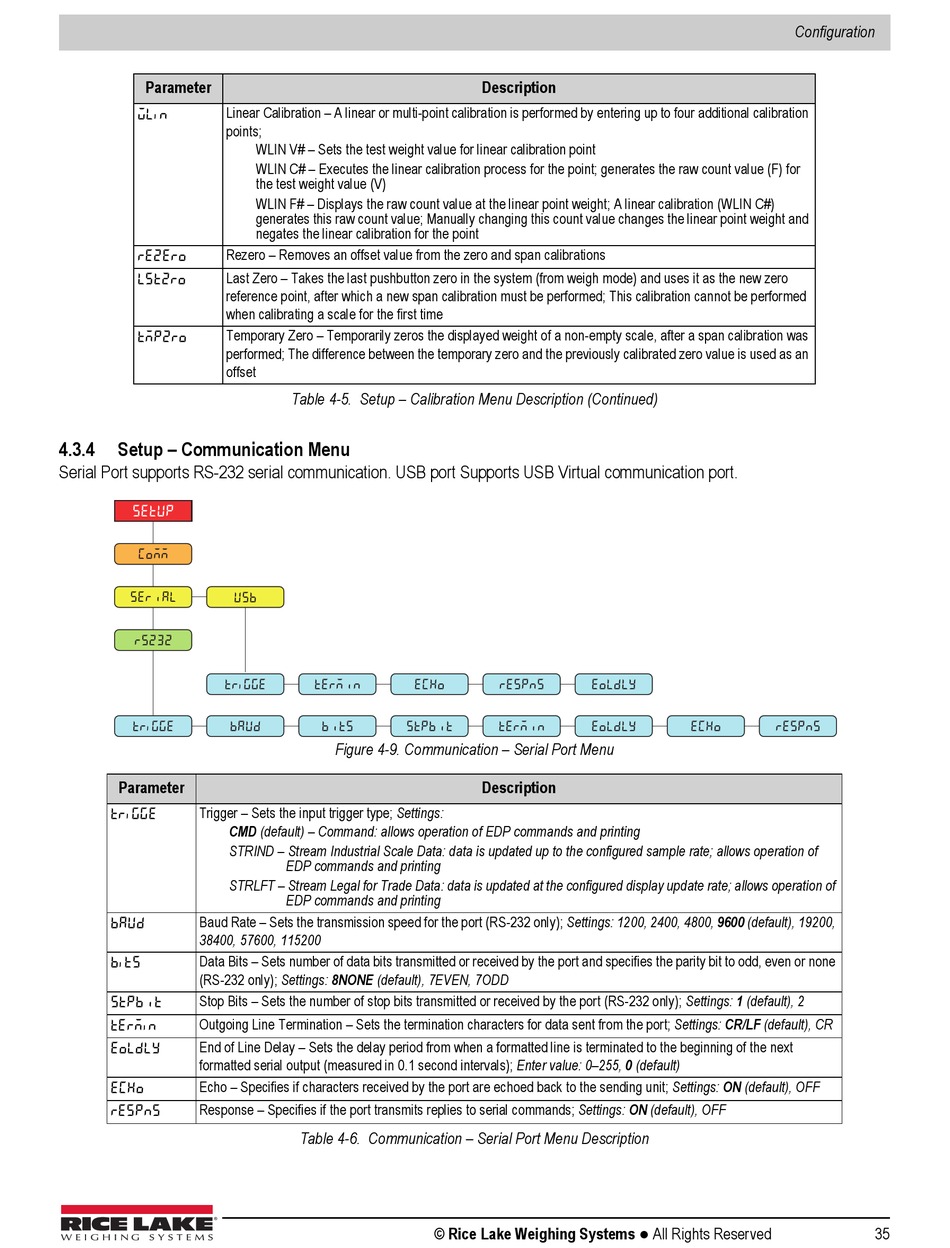

Parameter
Linear Calibration – A linear or multi-point calibration is performed by entering up to four additional calibration
wlin
points;
Rezero – Removes an offset value from the zero and span calibrations
rezero
Last Zero – Takes the last pushbutton zero in the system (from weigh mode) and uses it as the new zero
LSTZRO
reference point, after which a new span calibration must be performed; This calibration cannot be performed
when calibrating a scale for the first time
Temporary Zero – Temporarily zeros the displayed weight of a non-empty scale, after a span calibration was
TMPZRO
performed; The difference between the temporary zero and the previously calibrated zero value is used as an
offset
4.3.4 Setup – Communication Menu
Serial Port supports RS-232 serial communication. USB port Supports USB Virtual communication port.
Setup
Comm
SERIAL
usb
RS232
trigge
trigge BAUD
Parameter
Trigger – Sets the input trigger type; Settings:
trigge
CMD (default) – Command: allows operation of EDP commands and printing
STRIND – Stream Industrial Scale Data: data is updated up to the configured sample rate; allows operation of
STRLFT – Stream Legal for Trade Data: data is updated at the configured display update rate; allows operation of
Baud Rate – Sets the transmission speed for the port (RS-232 only); Settings: 1200, 2400, 4800, 9600 (default), 19200,
baud
38400, 57600, 115200
Data Bits – Sets number of data bits transmitted or received by the port and specifies the parity bit to odd, even or none
bits
(RS-232 only); Settings: 8NONE (default), 7EVEN, 7ODD
Stop Bits – Sets the number of stop bits transmitted or received by the port (RS-232 only); Settings: 1 (default), 2
STPBIT
Outgoing Line Termination – Sets the termination characters for data sent from the port; Settings: CR/LF (default), CR
termin
End of Line Delay – Sets the delay period from when a formatted line is terminated to the beginning of the next
eoldly
formatted serial output (measured in 0.1 second intervals); Enter value: 0–255, 0 (default)
Echo – Specifies if characters received by the port are echoed back to the sending unit; Settings: ON (default), OFF
echo
Response – Specifies if the port transmits replies to serial commands; Settings: ON (default), OFF
RESPNS
WLIN V# – Sets the test weight value for linear calibration point
WLIN C# – Executes the linear calibration process for the point; generates the raw count value (F) for
the test weight value (V)
WLIN F# – Displays the raw count value at the linear point weight; A linear calibration (WLIN C#)
generates this raw count value; Manually changing this count value changes the linear point weight and
negates the linear calibration for the point
Table 4-5. Setup – Calibration Menu Description (Continued)
TERMIN ECHO
BITS StpBIT
Figure 4-9. Communication – Serial Port Menu
EDP commands and printing
EDP commands and printing
Table 4-6. Communication – Serial Port Menu Description
© Rice Lake Weighing Systems ● All Rights Reserved
Description
ReSPNS EOLDLY
TERMIN EOLDLY
Description
Configuration
ECHO ReSPNS
35
