880 Performance Series
Panel Mount Controller/Indicator
Version 1.0
Operator's Manual
152240

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 880 Performance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rice Lake 880 Performance Series

Summary of Contents for Rice Lake 880 Performance Series

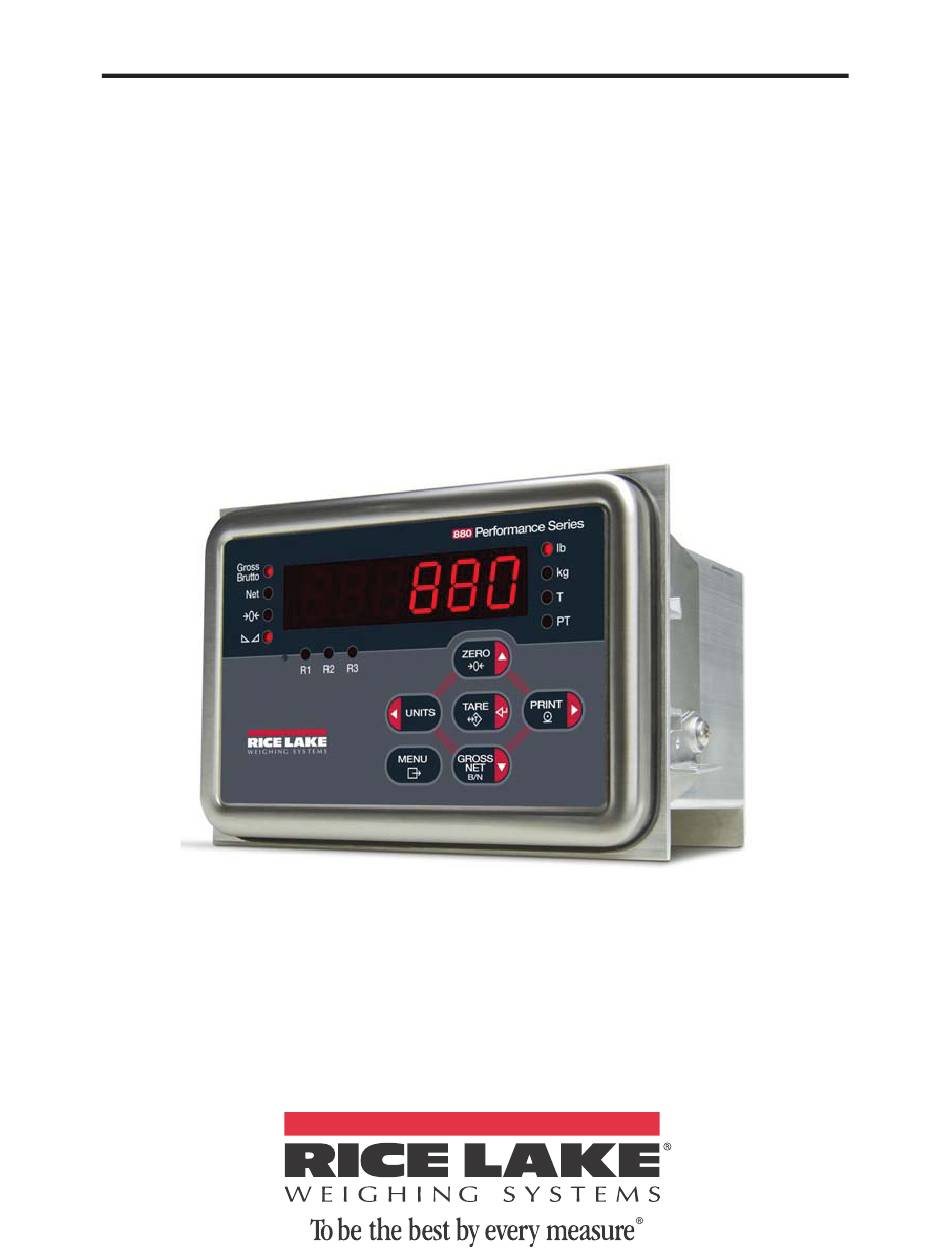

  • Page 1 880 Performance Series Panel Mount Controller/Indicator Version 1.0 Operator’s Manual 152240...

  • Page 2: Table Of Contents

    2.7 Battery Replacement....... . . 18 © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America.
  • Page 3 Configuration ................19 3.1 Configuration Methods ....... 19 3.1.1 Revolution® Configuration ......19 3.1.2 EDP Command Configuration .

  • Page 4: About This Manual

    About This Manual This manual is intended for use the operator of the 880 digital weight indicators and applies to indicators using Version 1.0 of the 880 software. The Technical/Service manual (PN 158387) that is referred to throughout this manual and is available online.

  • Page 5: Safety

    Do not operate or work on this equipment unless you have read and understand the instructions and warnings in this manual. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. Proper care is your responsibility.

  • Page 6: Operating Modes

    Operating Modes The 880 has three modes of operation: Normal mode Normal mode is the weighing mode of the indicator. The indicator displays gross or net weights as required, and annunciators to indicate scale status and the type of weight value displayed. Setup mode Most of the procedures described in this manual require the indicator to be in setup mode, including configuration and calibration.
  • Page 7 Gross Brutto ZERO TARE PRINT UNITS MENU GROSS Figure 1-1. 880 Front Panel Display Function Sets the current gross weight to zero. ZERO Also used to navigate to different menu levels or used to increment a number when editing a value. Sends “on-demand”...
  • Page 8 Function Gross/Brutto LED Gross Brutto Gross weight mode (or Brutto in OIML mode) Net LED Net weight mode. Center of Zero LED Indicates that the current gross weight reading is within +/- 0.25 display divisions of the acquired zero, or is within the center of zero band.

  • Page 9: Indicator Operations

    Indicator Operations Basic 880 operations are summarized below: 1.4.1 Toggle Gross/Net Mode GROSS 1. Press to toggle the display mode between gross and net. Net mode is only available if a tare value has been entered or acquired, Note the net value is the gross weight minus the tare. If no tare has been entered or acquired, the display remains in gross mode.

  • Page 10: Preset Tare (Keyed Tare)

    1.4.6 Preset Tare (Keyed Tare) Note Tare mode muste be set to keyed or both for the preset tare caommand to function. 1. With the scale empty and display showing zero weight, press TARE 2. Display will show (000000); the focused digit will flash. 3.

  • Page 11: Displaying Audit Trail Information

    1.4.9 Displaying Audit Trail Information The Audit Trail Configuration and Calibration counters can be viewed through the User Menu. MENU 1. Press , AUDIT is displayed. 2. Press to display the Legally Relevant Firmware version. 3. Press to display CALIB. 4.
  • Page 12 4. Press to toggle through each setpoint that is operator accessible. 5. Press , VALUE is displayed. 6. Press again to display or edit the value. To edit the value: • Press to increment or decrement the value of the flashing digit.

  • Page 13: Set Time And Date

    1.4.11 Set Time and Date , AUDIT is displayed. MENU 1. Press until T&D is displayed. 2. Press 3. Press , TIME is displayed. 4. Press , to enter time. 5. To edit the value ( 24 hour format): • Press to select the digit.

  • Page 14: Clear The Accumulator

    1.4.13 Clear the Accumulator to enter the user setup mode, AUDIT is displayed. MENU 1. Press until ACCUM is displayed. 2. Press until CLR Y is displayed. 3. Press , then press to clear the accumulator, CLEAR will display briefly TARE Press and display returns to CLR Y .

  • Page 15: Installation

    The shipping carton should contain the controller, display, Operator's manual, CD and parts kit. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Panel Mount Installation The controller can be mounted to the display DIN rail or mounted Note remotely up to 250 ft away from display.
  • Page 16 4.25 " 0.88 " 5/32 " Ø 3.38 " 7/8 " Ø Use DIN Rail mount plate as a template for drilling mounting holes in panel. 6.00 " Figure 2-2. Pattern for Cutting Holes Install the gasket on the display assembly. It must be seated correctly on display before mounting to ensure tight seal.

  • Page 17: Mounting The Controller Assembly Remotely

    Connect the cable assembly to the controller assembly. Place the controller assembly on the DIN rail as shown in Figure 2-4. Secure to DIN rail by rotating the left and right hooks up connecting with the bottom rail. Connect Cable assembly to Controller Assembly controller assembly Rotate hooks to secure...

  • Page 18: Cable Connections

    Cable Connections The 880 has three external connectors, a terminal connector for the power cord, and a cutout for installed options. Enclosure disassembly is not required to make connections to load cells, communications, digital inputs, and digital outputs. These connectors are all externally mounted on the back of the controller. 2.3.1 Load Cells To attach cable from a load cell or junction box, route the cable to the external J1connector.

  • Page 19: Serial Communications

    2.3.3 Serial Communications Connector J3 provides connections for the RS-232 or the two-wire RS-485. Table 2-2 shows the pin assignments. RS-232 RS-485 Table 2-2. Serial Communications to Connector J7 Pin Assignments For RS-232, all four switches on SW3 (see Figure 2-7) must be in the OFF Note position.

  • Page 20: Cpu Board

    CPU Board Audit Jumper Figure 2-7. 880 CPU Board Connectors • Load cell (J1) • USB Host (J5) • DIO (J2) • Ethernet TCP/IP (J6) • Comm 1 (J3) • Opt Header (J8) • USB Micro Device (J4) • Power Board (J7) selectable with The Comm 1 port supports RS-232 or RS-485 communications;...

  • Page 21: Digital I/O

    2.5.1 Digital I/O Digital inputs can be set to provide many indicator functions, including all keypad functions. Digital inputs are active (on) with low voltage (0 VDC), inactive (off) at 5 VDC. Use the DIG IN menu to configure the digital inputs. Digital outputs are typically used to control relays that drive other equipment.

  • Page 22: Configuration

    Configuration To configure the 880 indicator, the indicator must be placed in setup mode. The setup switch is accessed through a small hole on the enclosure backplate, insert a nonconductive tool into the access hole and press the configuration switch. Indicator display changes to show CONFIG Use caution when inserting the nonconductive tool into the...

  • Page 23: Edp Command Configuration

    3.1.2 EDP Command Configuration The EDP command set can be used to configure the 880 indicator using either a personal computer or terminal. Like Revolution, EDP command configuration sends commands to the indicator EDP port; unlike Revolution, EDP commands can be sent using any external device capable of sending ASCII characters over a serial connection.
  • Page 24 ZERO TARE PRINT UNITS MENU GROSS Figure 3-3. Five-Key Keypad Functions in Setup Mode Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 3-3). The ( ) and ( ) keys scroll left and right UNITS PRINT (horizontally) on the same menu level;...

  • Page 25: Alphanumeric Entry Procedure

    3.1.4 Alphanumeric Entry Procedure Because of its limited keypad, the 880 will use the following scheme for alphanumeric entry. Level 1 Level 1 Parameter Parameter Level 2 Level 2 Parameter Parameter Display first 6 Scroll left in format string Scroll right in format string characters of format Press to accept the changes...

  • Page 26: Setup Menu

    3.2.2 Setup Menu AUDIT SETUP T & D ACCUM SETPTS TARE SCALE FEATUR PORTS PFORMT SETPTS DIGIO ALGOUT VERS Figure 3-7. Setup Menu Structure 3.2.3 Scale Menu ..SETUP ..SCALE SPLIT FORMAT ZTRKBN ZRANGE MOTBAN OVRLOA SSTIME DSPRAT GRADS 0-100 0-100...
  • Page 27 Format Menu ..SETUP ..SCALE ..FORMAT DSPDIV UNITS DSPDIV UNITS DECPNT DECPNT 888888 88888.8 888880 888888 8.88888 888888 88.8888 8.88888 888.888 88.8888 NONE 8888.88 888.888 NONE 88888.8 8888.88 If SPLIT = OFF ..SETUP ..SCALE ..
  • Page 28 Calibration Menu ..SETUP ..SCALE ..CALIBR WVAL WSPAN WLIN REZERO LAST TEMP WZERO Previous A/D raw Previous A/D raw Calibrating, please wait Calibrating, please wait Display and edit Calibrating, please wait counts are shown counts are shown test weight value Press Enter to Press enter to recall...

  • Page 29: Feature Menu

    3.2.4 Feature Menu ..SETUP CONFIG ..FEATUR REGION CONSC# PASSWD 000000 CURVAL RESVAL USER SETUP Figure 3-12 KEYLCK LOCALE LATUDE ELEVAT 0-90 -9999 to +9999 Shown if LOCALE is ON ZERO GRSNET UNITS PRINT TARE MENU UNLOCK UNLOCK UNLOCK UNLOCK UNLOCK...
  • Page 30 Region Menu ..SETUP ..FEATUR REGION REGWOR DECFMT TIME DATE REGULA NTEP GROSS DFORMT D SEP CANADA BRUTTO COMMA MMDDY4 SLASH 000000 INDUST DDMMY4 DASH NONE Y4MMDD SEMI OIML Y4DDMM TFORMT T SEP MMDDY2 12 HOUR COLON XX.XXAM DDMMY2 See INDUST 24 HOUR...

  • Page 31: Ports Menu

    3.2.5 Ports Menu ..SETUP ..PORTS USBCOM ETHNET FLDBUS DHCP SWAP DVCNET PRFBUS IPADRS NONE Address Address Figure 3-14 NETMSK BYTE number number DFTGWY BOTH DNSPRI DNSSEC PORT RMOTIP RMOTPT ECHO Figure 3-13. Ports Menu Structure Configuration 28...
  • Page 32 Com and USBCOM Menu ..SETUP ..PORTS USBCOM TRIGGE BAUD BITS STOP B TERMIN ECHO RESPNS CR/LF COMAND 9600 8NONE STRIND 19200 7EVEN 7ODD STRLFT 28800 REMOTE 38400 57600 115200 Not available in USBCOM 1200 2400 4800 EOLDLY TYPE ADDRES...

  • Page 33: Print Format Menu

    3.2.6 Print Format Menu ..SETUP ..PFORMT GFMT NFMT ACCFMT SPFMT HDRFMT format PORT format USBCOM Figure 3-15. Print Format Menu Structure 3.2.7 Setpoint Menu ..SETUP ..SETPTS SP CFG BATCHG AUTO MANUAL SETPT1 SETPT2-20 Same as SETPT1 See Figure 3-17 GROSS...
  • Page 34 Setpoint Menu – Layout A GROSS, NET, -GROSS, -NET, %REL VALUE TRIP BANDVAL HYSTER PREACT PREVAL number number number number HIGHER LOWER If PREACT is If TRIP= If TRIP= ON or LEARN INBAND LEARN INBAND or HIGHER or OUTBAND LOWER OUTBAN PREADJ PRESTA...
  • Page 35 Setpoint Menu – Layout B PAUSE, DELAY, WAITSS, COUNTR, AUTJOG CLRACM CLRTAR PSHACM PSHPRT PSHTAR VALUE number ONQUIE WAITSS DELAY, WAITSS and AUTJOG setpoints only. ACCESS NAME SLOT DIGOUT SENSE BRANCH NONE 6ALPHA NORMAL BIT 1-4 SLOT 0 INVERT 1-20 Based on which DIGIO are config as OUTPUT SLOT 1...

  • Page 36: Digital Input/Output Menu

    3.2.8 Digital Input/Output Menu ..SETUP ..DIGIO SLOT 0 BIT 2-4 BIT 1 Same as SLOT 0 PRINT BIT 1 ZERO TARE UNITS DSPTAR BATRUN BATRST CLEAR NT/GRS BATSTR BATSTP DSPACC CLRCN BATPAS OUTPUT Figure 3-20. Digital Input/Output Menu Structure 3.2.9 Analog Output Menu The ALGOUT menu is used only if the analog output option is installed.

  • Page 37: Print Formatting

    Print Formatting The 880 provides five print formats. Formats will be printed in a GFMT NFMT ticket format based on the current mode of operation when the PRINT key is pressed (see Table 4-2 on page 36). can be inserted into any other ticket format HDRFMT using the <H1>...
  • Page 38 Ticket Format GFMT/ NFMT/ Command Description ACCFMT SPFMT <TI> Time <DA> Date <TD> Time and date <UID> Unit ID number (See note 3) <CN> Consecutive number (See note 3) <H1> Ticket header (HDRFMT) <NLnn> New line (nn = number of termination (<CR/LF>...

  • Page 39: Default Ticket Formats

    Default Ticket Formats Table 4-2 shows the default print formats for the 880 and lists the conditions under which each print format is used. The HDRFMT format is used to specify header information that can be used by the other ticket formats. The contents of the HDRFMT format can be inserted into any other ticket format using the <H1>...

  • Page 40: Specifications

    Specifications Power Line Voltages Input Voltage – 100-240VAC, 9-36VDC Input Frequency – 47-63Hz Power Consumption AC: 15 watts DC: 20 watts Analog Specifications Full Scale Input Signal -45 mV to +45 mV Excitation Voltage 10 VDC ±, 8 x 350 or 16 x 700 load cells Sense Amplifier Differential amplifier with 4- and 6-wire sensing...
  • Page 41 RS-485 Half Duplex USB Type A Connector 2.0 USB Micro A/B Connector 2.0 EtherNet EtherNet TCP/IP Operator Interface Display LED, Six 0.56 inch (14 mm), 14 Segment with Decimal or Comma Keyboard 6-key membrane panel Environmental Operating Temperature 14°F to 104°F (–10 to +40°C) (legal-for-trade applications); 14°F to 122°F (–10 to +50°C) (industrial applications) Storage Temperature –25 to +70°C...

  • Page 42: 880 Limited Warranty

    RLWS and the Buyer. © Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved. RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET • RICE LAKE, WISCONSIN 54868 •...
