381 Product Dimensions; Mounting Instructions - Rice Lake Revolution Synergy Series Technical Manual

380/381 Synergy Indicator
2.3

381 Product Dimensions

B
C
A
6.77 in (172 mm)
2.4

Mounting Instructions

All 380/381 Synergy Series indicators include a universal mount stand. The 380 universal mount stand has 4 holes and the 381
stand has two holes. The stand can be mounted on a wall, tabletop or a flat surface. The instructions below are to be used as
an example for all models.
NOTE: The universal mount stand comes attached to the 380. Rice Lake Weighing Systems recommends removing the
indicator from the stand prior to mounting.
1. Using the mount as a template, mark the screw locations.
2. Drill holes for the screws.
3. Secure the universal mount using the appropriate length 1/4 in or M6 hardware (not included).
4. Reattach the 380/381 to the universal mount stand.
NOTE: The 380 parts kit includes rubber grommets to insert into the four screw holes of the universal mount stand for a
non-mounted application.
10 Visit our website
A
D

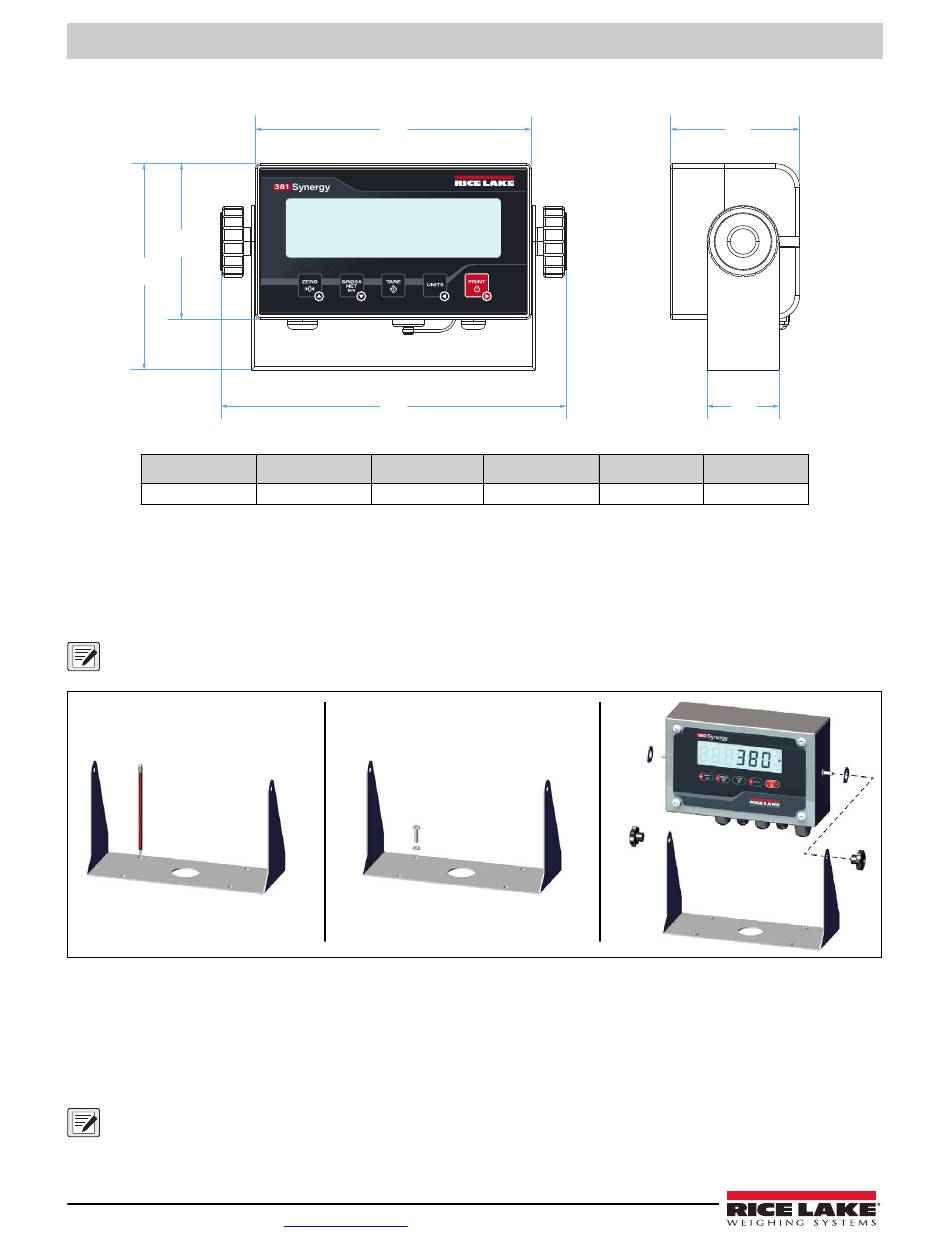

Figure 2-2. 381 Product Diagram
B C
3.82 in (97 mm) 5.06 in (129 mm)
Table 2-2. 381 Product Dimensions
Figure 2-3. Mounting the Indicator
www.RiceLake.com
D E
8.50 in (216 mm) 3.17 in (81 mm)
E
F
F
1.77 in (45 mm)
