380/381 Synergy Indicator

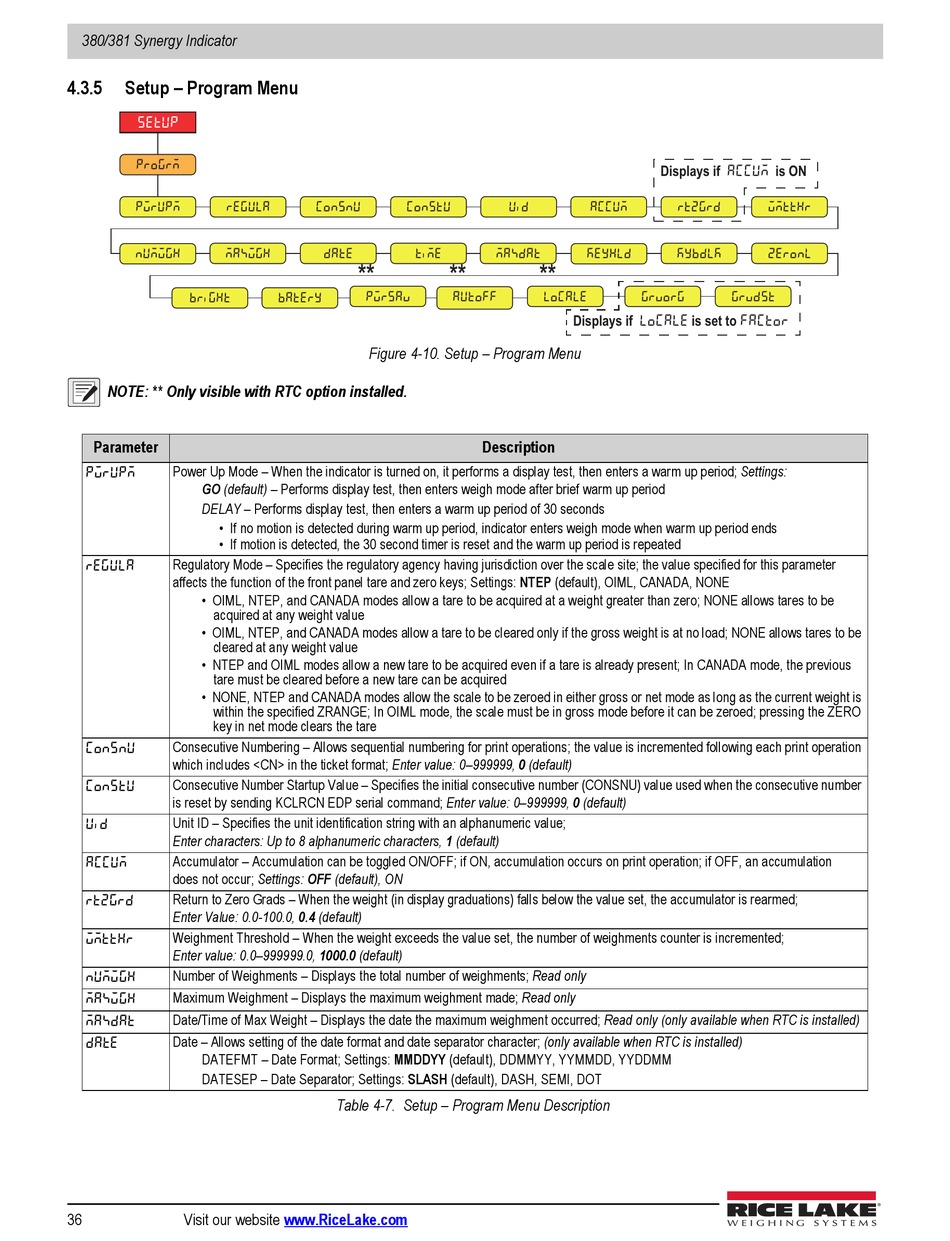

4.3.5 Setup – Program Menu
Setup
Progrm
Pwrupm Regula
numwgh maxwgh
bright
NOTE: ** Only visible with RTC option installed.
Parameter
Power Up Mode – When the indicator is turned on, it performs a display test, then enters a warm up period; Settings:
pwrupm
GO (default) – Performs display test, then enters weigh mode after brief warm up period
DELAY – Performs display test, then enters a warm up period of 30 seconds
• If no motion is detected during warm up period, indicator enters weigh mode when warm up period ends
• If motion is detected, the 30 second timer is reset and the warm up period is repeated
Regulatory Mode – Specifies the regulatory agency having jurisdiction over the scale site; the value specified for this parameter
regula
affects the function of the front panel tare and zero keys; Settings: NTEP (default), OIML, CANADA, NONE
• OIML, NTEP, and CANADA modes allow a tare to be acquired at a weight greater than zero; NONE allows tares to be
acquired at any weight value
• OIML, NTEP, and CANADA modes allow a tare to be cleared only if the gross weight is at no load; NONE allows tares to be
cleared at any weight value
• NTEP and OIML modes allow a new tare to be acquired even if a tare is already present; In CANADA mode, the previous
tare must be cleared before a new tare can be acquired
• NONE, NTEP and CANADA modes allow the scale to be zeroed in either gross or net mode as long as the current weight is
within the specified ZRANGE; In OIML mode, the scale must be in gross mode before it can be zeroed; pressing the ZERO
key in net mode clears the tare
Consecutive Numbering – Allows sequential numbering for print operations; the value is incremented following each print operation
consnu
which includes <CN> in the ticket format; Enter value: 0–999999, 0 (default)
Consecutive Number Startup Value – Specifies the initial consecutive number (CONSNU) value used when the consecutive number
constu
is reset by sending KCLRCN EDP serial command; Enter value: 0–999999, 0 (default)
Unit ID – Specifies the unit identification string with an alphanumeric value;
uid
Enter characters: Up to 8 alphanumeric characters, 1 (default)
Accumulator – Accumulation can be toggled ON/OFF; if ON, accumulation occurs on print operation; if OFF, an accumulation
accum
does not occur; Settings: OFF (default), ON
Return to Zero Grads – When the weight (in display graduations) falls below the value set, the accumulator is rearmed;
rtZGrd
Enter Value: 0.0-100.0, 0.4 (default)
Weighment Threshold – When the weight exceeds the value set, the number of weighments counter is incremented;
WMTTHR
Enter value: 0.0–999999.0, 1000.0 (default)
Number of Weighments – Displays the total number of weighments; Read only
NUMWGH
Maximum Weighment – Displays the maximum weighment made; Read only
MAXWGH
Date/Time of Max Weight – Displays the date the maximum weighment occurred; Read only (only available when RTC is installed)
MAXDAT
Date – Allows setting of the date format and date separator character; (only available when RTC is installed)
date
DATEFMT – Date Format; Settings: MMDDYY (default), DDMMYY, YYMMDD, YYDDMM
DATESEP – Date Separator; Settings: SLASH (default), DASH, SEMI, DOT
36 Visit our website
Consnu constu
date time
** **
pwrsav autoff
Batery
Figure 4-10. Setup – Program Menu
Table 4-7. Setup – Program Menu Description
www.RiceLake.com
Displays if
Uid Accum
maxdat keyhld
**
Locale grvorg
Displays if locale
Description
ACCUM is ON
rtzgrd wmtthr
kybdlk zeronl
grvdst
is set to Factor
