Open Enclosure

This section includes information on opening the 380 and 381 enclosures.
2.5.1

380 Front Plate Removal

Remove the front plate of the 380 to connect cables and to gain access to the 380 board.
WARNING: Before opening the unit, ensure batteries are removed and the optional power cord is disconnected from the
power outlet.
1. Place the indicator face-up on an anti-static work mat.
2. Remove the screws holding the front plate to the enclosure.
3. Lift the front plate away from the enclosure and disconnect the ground wire from the front plate.
380 Torque Ratings
Refer to Table 2-3 throughout installation and use of product to maintain proper torque ratings for 380 components.

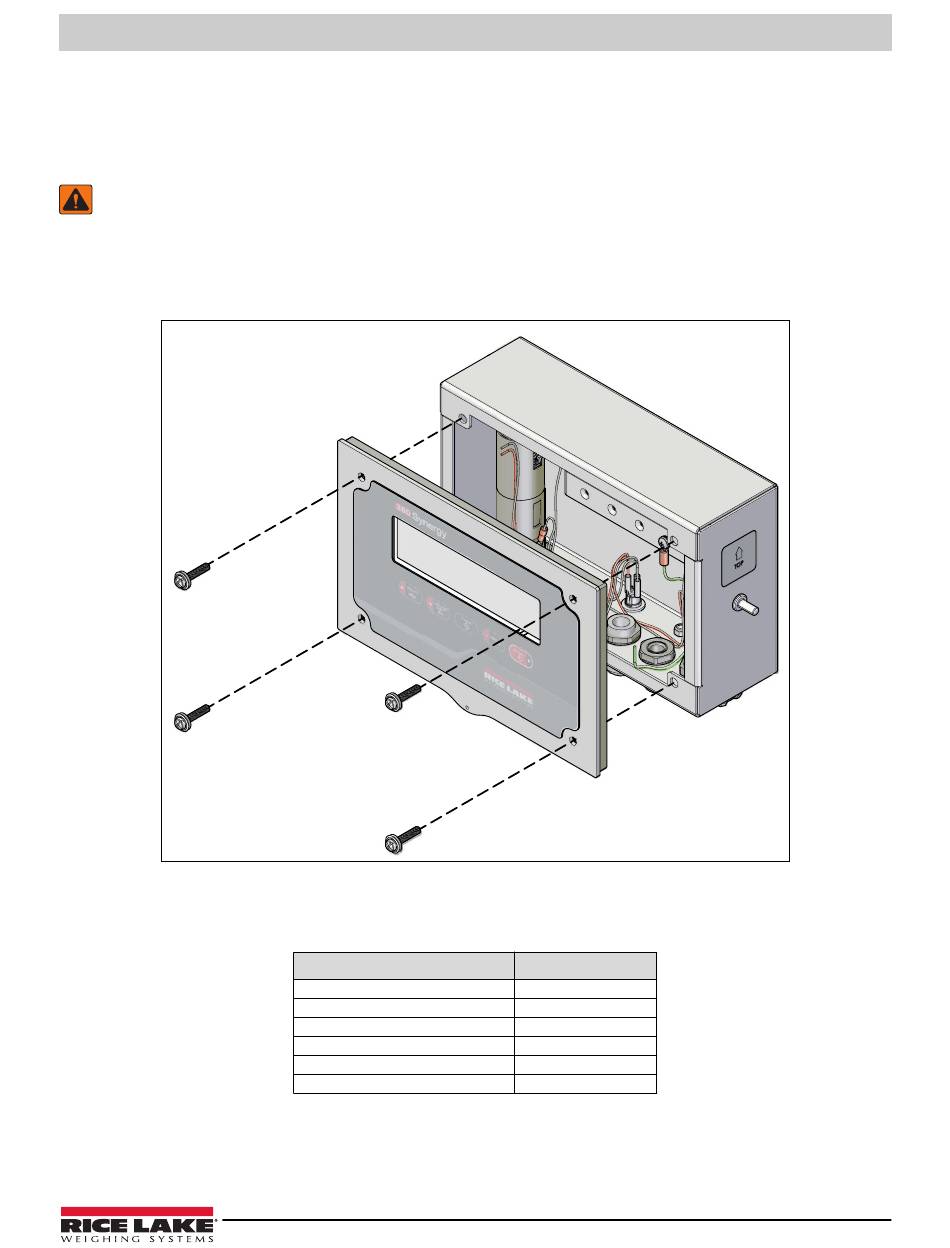

Figure 2-4. Removing the Front Plate
Component
Front Plate Screw
Cord Grip Nut (to enclosure)
Cord Grip Dome Nut (around cable)
Screw at Antenna Hole
Grounding wire
Standoff Nuts
Table 2-3. Component Torque Ratings
© Rice Lake Weighing Systems ● All Rights Reserved
Torque Rating
10 in-lb (1.1 N-m)
33 in-lb (3.7 N-m)
22 in-lb (2.5 N-m)
10 in-lb (1.1 N-m)
10 in-lb (1.1 N-m)
4 in-lb (0.45 N-m)
