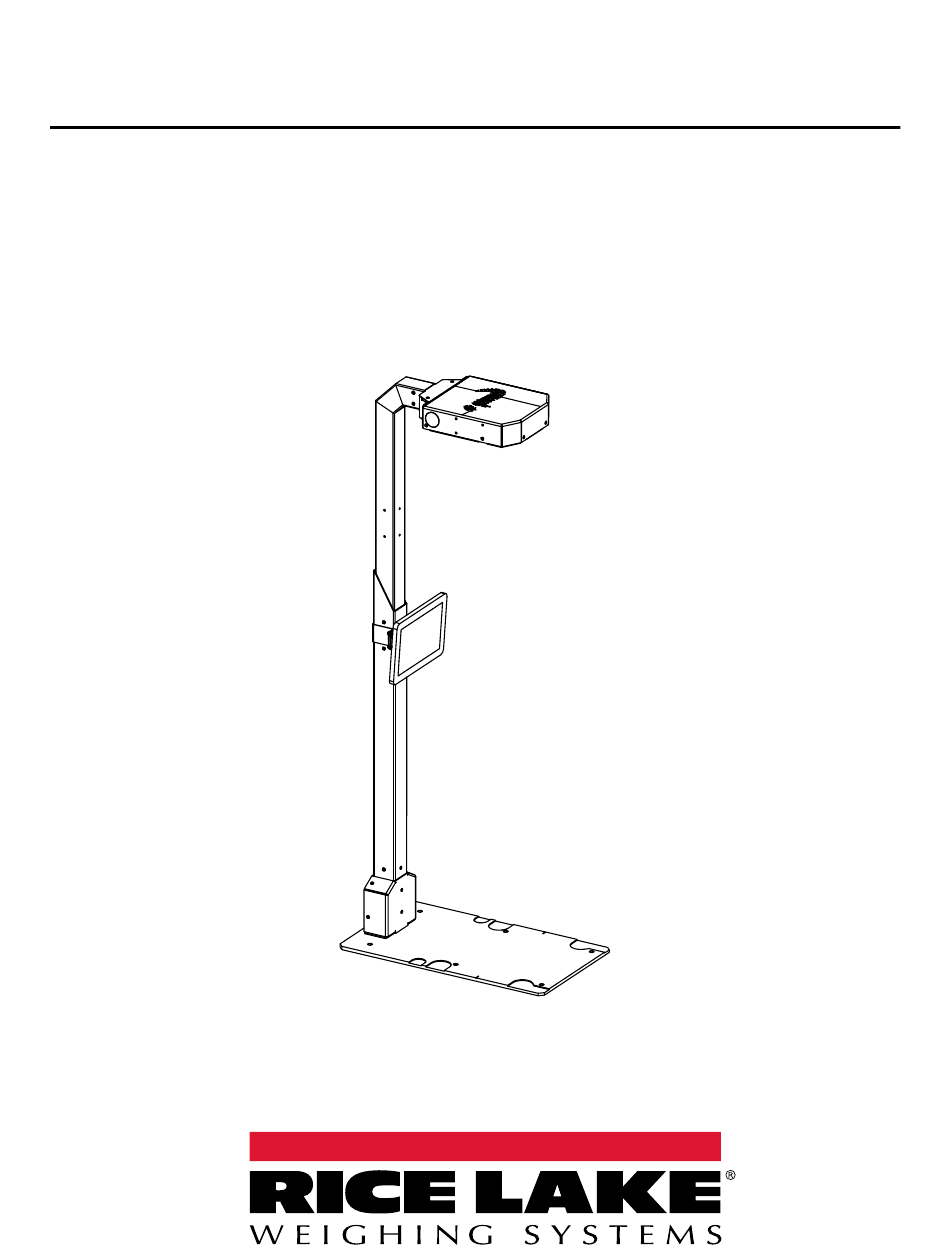

- Page 1 iDimension Plus ® Adjustable Pole Dimensioning System Assembly Instructions February 24, 2025 PN 227298 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Revision History
Description February 24, 2025 Initial release Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. -
Page 4: Table Of Contents
Column and Monitor Mounting Fasteners ............23 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
The iDimension Plus QubeVu Administrator Guide (PN 221652) provides a detailed overview of the QubeVu Manager, the firmware of the iDimension Plus. The QubeVu Manager is a software provided to set up and configure the iDimension Plus. This software is recommended for use by a technical systems administrator. -
Page 6: Disposal
Operate between 32–95º F (0–35º C). Never remove the iDimension Plus head cover or the electrical connection panels at the base of the column assembly. Never modify or attempt to repair the unit. Service must be performed by authorized Rice Lake Weighing Systems dealer or service personnel. -
Page 7: Overview
Overview Overview This section provides an overview of the parts included with the iDimension Plus with Adjustable Column Mounting System. iDimension Plus Parts The iDimension Plus is comprised of several parts, including some that are pre-installed in the column assembly. Immediately after unpacking the iDimension Plus, visually inspect the contents to ensure all components are included and undamaged. - Page 8 NOTE: This part is pre-installed. on the lower column. 192050 10 inch Display 201028 AC Power Cable 226562 Power Supply 206585 Calibration and Test Object 220008 Hex Key, 2 mm Table 2-1. Adjustable iDimension Plus Parts List www.RiceLake.com Visit our website...
- Page 9 Hex Key, 4 mm 211219 Head Spacer NOTE: This part is only used when mounting scanner head to an external frame using kit 198708. Table 2-1. Adjustable iDimension Plus Parts List © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 10: Fasteners Used During Assembly
Screw, M4x0.7x10 Hex Socket Head Full Thread Class 12.9 Black Oxide Alloy Secures scanning head to upper column and display mounting bracket to lower column. Table 2-2. iDimension Plus Parts List NOTE: Fastener illustrations are not to scale. www.RiceLake.com Visit our website... -
Page 11: Assembly
The iDimension Plus is provided with several pre-installed components including: column wiring, head mounting bracket, and display bracket, display clamp bracket. The remaining assembly includes installing the base, monitor, and scanner head. NOTE: A hex wrench set is included with the iDimension Plus and may be used for assembly. Unit Assembly The iDimension Plus is assembled in five procedures: •... -
Page 12: Adjust The Column Height
Adjust the Column Height Securing the iDimension Plus upper and lower columns changes the total height to either 48 in (1.2 m) or 60 in (1.5 m). The 60 in (1.5 m) height is recommended for most installations. Typically, 48 in (1.2 m) is reserved for installations with height restrictions. -
Page 13: Install Display Mounting Bracket
90, 180, 270 or 360 degrees. Figure 3-5. Install Display Bracket and Clamp 3. Align display mounting brackets and secure with two M4-0.7 x 16 thumb screws (226631). Figure 3-6. Install Display Mounting Bracket © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Install Display
Plus 3.1.4 Install Display 1. Attach the display to the mounting bracket (226477) with four M4-0.7x6 screws (196247). CAUTION: Do not over tighten screws. NOTE: The display mounting bracket is pre-installed on the lower column. In Figure 3-7 the column is removed for mounting hardware clarity. -
Page 15: Connect Monitor Usb Cable
3.1.5 Connect Monitor USB Cable The monitor included with the iDimension Plus contains one USB port for video input (via DisplayLink). The USB port and cable are keyed and only connect in a specific orientation. Observe the guides on each side of the USB cable and in the USB port. The USB cable guides fit under the guides in the USB port. -
Page 16: Install Scanner Head
Plus 3.1.6 Install Scanner Head 1. Attach four M4-0.7x10 mounting bolts (196863) to back of the scanner head. Do not tighten screws all the way. Figure 3-11. Scanner Head Mounting Screws 2. Locate the power, Ethernet, and three USB-A cables extending from the upper column head opening. - Page 17 6. Slide the screw heads into the keyholes in the scanner head mount. Figure 3-13. Slide Mounting Screw Heads into Keyholes 7. Slide the scanner head downward into the keyholes. Figure 3-14. Slide Scanner Head Downward © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 18: Connect Power And Accessory Cables
Figure 3-15. Tighten Scanner Head Mounting Screws 3.1.7 Connect Power and Accessory Cables 1. Connect power and optional accessory cables to the ports on the back of the iDimension Plus base (Table 3-2). IMPORTANT: Attach the power cable connector to the port, before plugging the power cable connector into an AC outlet. - Page 19 Assembly 2. A fully assembled iDimension Plus should resemble Figure 3-17. Figure 3-17. iDimension Plus Assembled © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 20: Replacement Parts
Plus Replacement Parts This section provides an overview of the replacement part available for the iDimension Plus. Electronic Replacement Parts Item Part No. Description Qty. 192050 10 inch Display 201028 AC Power Cable 226562 Power Supply Table 4-1. Adjustable iDimension Plus Parts List www.RiceLake.com... -
Page 21: Fasteners Replacement Parts
4.2.1 Heading Mounting Fasteners Figure 4-1. iDimension Plus Replacement Parts Item No. Part No. Description Qty. 196863 Screw, Cap M4x0.7x10 Hex Socket Head Full Thread Table 4-2. iDimension Plus Replacement Parts © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 22: Base Mounting Fasteners
Plus 4.2.2 Base Mounting Fasteners Figure 4-2. iDimension Plus Replacement Parts Item No. Part No. Description Qty. 196244 Screw, Cap M5-0.8x16 Flat Head Hex Drive 18-8 SST Table 4-3. iDimension Plus Replacement Parts www.RiceLake.com Visit our website... -
Page 23: Column And Monitor Mounting Fasteners
Qty. 225899 Screw, Cap, M4-0.7 x 12mm Flat Head Socket, Black Oxide Alloy Steel 226631 Thumbscrew 196863 Screw, Cap M4x0.7x10 Hex Socket Head Full Thread Table 4-4. iDimension Plus Replacement Parts © Rice Lake Weighing Systems ● All Rights Reserved... - Page 24 Plus www.RiceLake.com Visit our website...
- Page 26 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 February 24, 2025 PN 227298 Rev A www.ricelake.com...
