13.4.3 The display example of alarm information

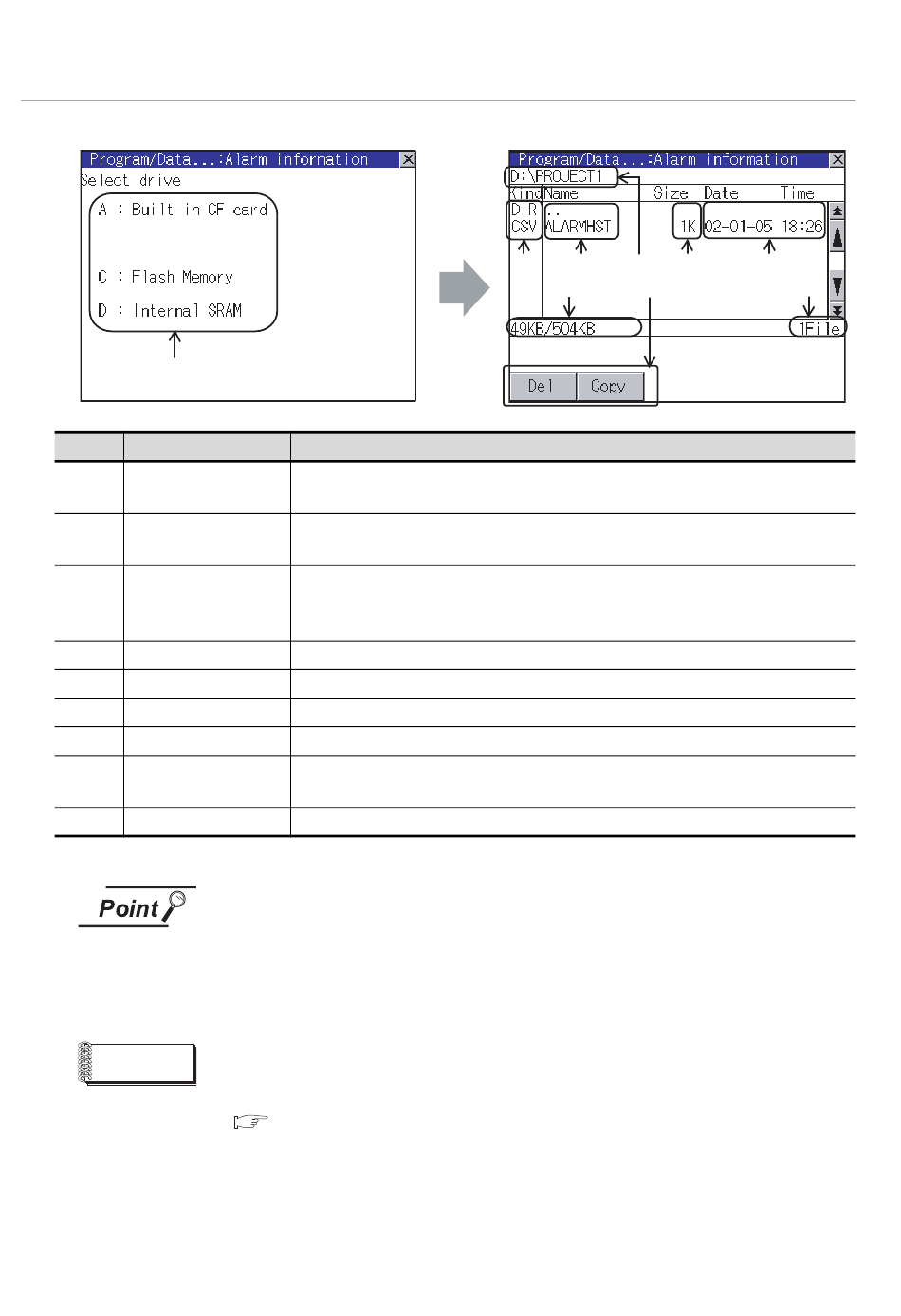

Alarm information screen
(1)
Number
(1) Select drive
(2) Kind
(3) Name
(4) Path name
(5) Size
(6) Date and time
(7) Drive size
(8) Operation switch
(9) Number of files
Remark
13 - 24
13.4 Alarm Information
13.4.3 The display example of alarm information
Item
The drive of which file or folder is displayed can be selected. When the CF card is
not installed, [A: Built-in CF card] is not displayed.
Indicates whether the displayed name is file or folder.
In case of file, displays the extension; in case of folder, displays "DIR".
Displays the file name or folder name held by the selected drive or folder.
When the file name or folder name exceeds 20 characters, the exceeding
characters (the 21th character and after) are not displayed.
Displays the path name of drive/folder which is currently displayed.
Displays the size of the file displayed in Name.
Displays the date and time when each file has been created.
Displays the size in use and the entire size of the drive selected by "Select drive".
Displays the execution switch of each function (Delete, copy) which can be
executed on the alarm information screen.
Displays the total number of the displayed files.
Display of creation date and time
The creation date and time display is not updated even if a file is created or updated
while displaying the alarm information display screen.
If close the screen currently displayed (moving the screen to the folder of the upper
hierarchy, etc.) and display the screen again, the updated contents are displayed.
Folders and files displayed
Refer to the following for the details of folders and files displayed.
Section 13.1.4 Display file
Alarm information: Storage file/folder display screen
