Utility Basic Configuration - Mitsubishi Electric GOT 1000 User Manual

9.3.2

Utility basic configuration

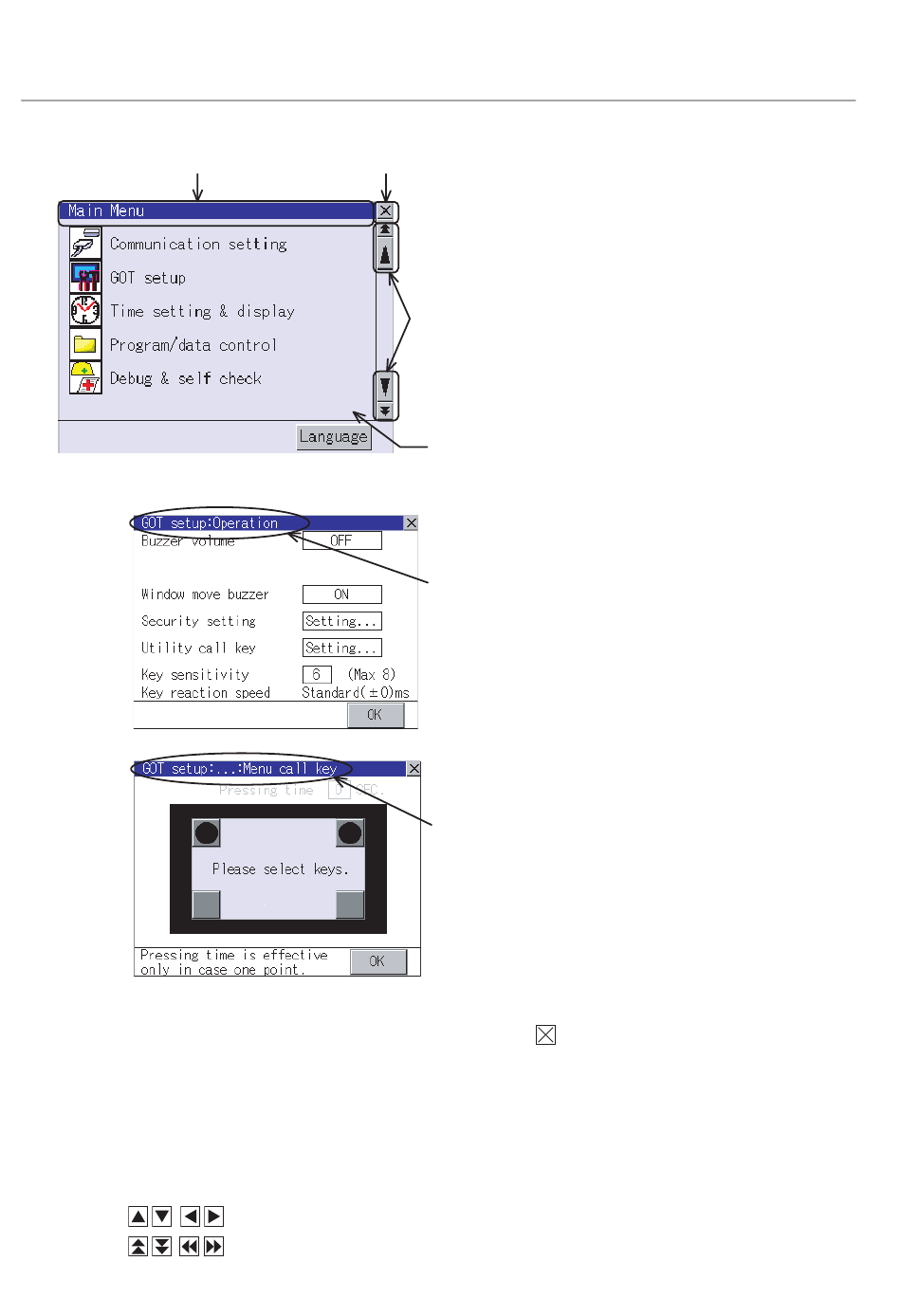

The basic configuration of the screen is as follows.
Title display
(1) Title display
(2) Close/Return button
When a middle screen of the layers is displayed, if the
of screen is touched, returns to the previous screen.
If this button is touched when directly displayed from monitor screen, the screen is closed and
returns to monitor screen.
(3) Scroll button
For screens in which the content does not fit on one screen page, there is a right or down scroll
button on the screen.
9 - 9
9.3 Utility Display
9.3.2 Utility basic configuration
Close/Return button
Scroll one line/column
Scroll window
Scroll key
Screen
The screen title name is displayed in title
display part.
As the screen is composed of multiple
layers, the title including these layers is
Title display
displayed.
If the title overflows the title display area,
the middle section is omitted and "..." is
displayed at the section.
Title display
(Close/return) button in the right corner
