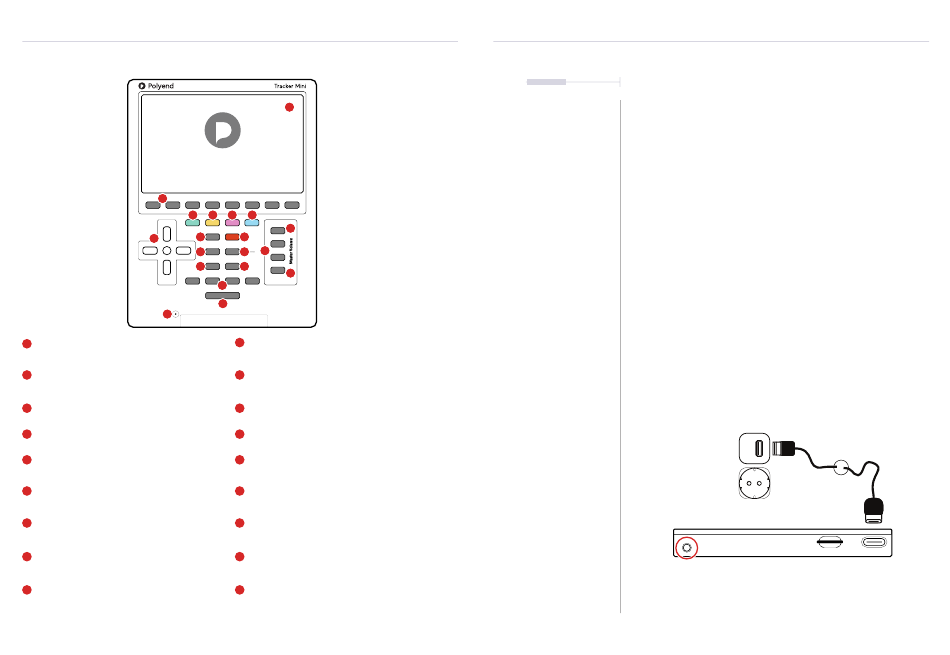

Overview
2
3
18
LCD Display
1
5 Inch, LCD TFT 800 x 480 Display.
D-Pad Navigator Buttons
3
Four navigation pad buttons (Up), (Down), (Left), (Right)
and one (Enter). Manoeuvre through the grid and options.
Dedicated Note Button
5
Selection of the [Note] element of a step.
Dedicated FX1 Button
7
Effect selection for [FX1] of a step.
Play Button
9
Plays when pressing [Play] the pattern or song. Pressing
again stops playback. Play again restarts.
Insert / Home Button
11
Pressing [Insert] will insert. Pressing [Shift] + [Insert] will
return 'home', to the top of the pattern.
Delete Button
13
Pressing [Delete] will reset or step back.
[Shift] + [Delete] will backspace delete the selected item.
Function Buttons
15
Assignable function buttons. Default: 1 - Pattern,
2 - Inst Automation, 3 - Sample Playback, 4 - Master.
Master [+] / [-] Buttons - Fine
17
Increases the master volume +/- in fine increments.
Also navigates and adjusts values within certain menus.
8
1
5 6 7 8
Note Instr FX1 FX 2
16
+
9 Play Rec 10
+
17
11 Insert Menu 12
-
13 14
Delete Copy -
16
1 2 3 4
15
Shift
4
Line In Line Out MIDI In MIDI Out
2
Screen Buttons
Dynamic [Screen buttons] are dependant on the
function displayed above each button.
Shift Button
4
Pressing [Shift] + Another button will select its
secondary function.
Dedicated Instrument Button
6
Selection of the [Instrument] for a step.
Dedicated FX2 Button
8
Effect selection for [FX2] of a step.
Rec Button
10
Pressing [Rec] will toggle the record mode on or off for
editing patterns and perform settings.
Menu Button
12
Hold to open the menu. Navigate to highlight a selection
from the available options. Release to select.
Copy Button
14
Pressing [Copy] will copy the selected item.
Use [Shift] + [Copy] to paste any copied item.
Master [+] / [-] Buttons - Course
16
Adjusts the master volume +/- in large increments. Also
navigates and adjusts values within certain menus.
Microphone
18
Internal microphone.
Polyend Tracker Mini Manual
1.3 Start Up
NOTES
Tracker Mini is powered from the an internal rechargeable battery which is
charged using the supplied USB cable and charger. When restarting
Tracker Mini the previously open project will be be re-opened.
▌ POWERING ON / OFF TRACKER MINI
1. To recharge Tracker Mini, connect the supplied USB-C Mains cable
between Tracker Mini and the supplied USB plug to charge the unit.
Once charged Tracker Mini will operate without the USB power supply
being connected.
2. Ensure the SD Card is installed correctly for Tracker Mini to operate.
Pins should face up towards the front panel.
3. To power up, hold the small power on/off button located on the top right
(looking from the front) for 1 second. Start up will open the previously
opened project.
4. To power off, press and hold the small power button located on the top
right (looking from the top) until the timer bar ends. Tracker Mini will
then power off.
5. To check battery power charge when the unit is off, press quickly the
power button. The battery indicator will display for a short period to
indicate the charging state. The battery state is also displayed if the
power cable is connected while powered off.
The charging supply is 5V, 2A from the supplied mains to USB adapter.
Press the On/Off Button to Power Up
Hold the On/Off Button to Power Down
