Wireless Mode

Many models of the GRAFIK Eye QS control unit support wireless communication with
other Lutron products. This feature allows for easy integration of wireless sensors,
keypads, remotes, and shades for single-room wireless applications
Units supporting wireless communication are labeled "GRAFIK Eye QS Wireless" on the
front label of the unit.
The wireless feature of the GRAFIK Eye QS Wireless control unit has three (3) modes of
operation.
• Ignore Programming (default): The GRAFIK Eye QS Wireless control unit will only
respond to normal operation commands from wireless devices associated while in
Enabled mode.
• Disabled: Use for wired-only systems.
• Enabled (30 minutes): The GRAFIK Eye QS Wireless control unit will respond to any
programming commands from nearby Lutron QS wireless (and compatible) products.
The GRAFIK Eye will automatically revert to "Ignore Programming" mode if there is no
activity for 30 minutes.
Changing the wireless mode of the GRAFIK Eye QS Wireless control unit:

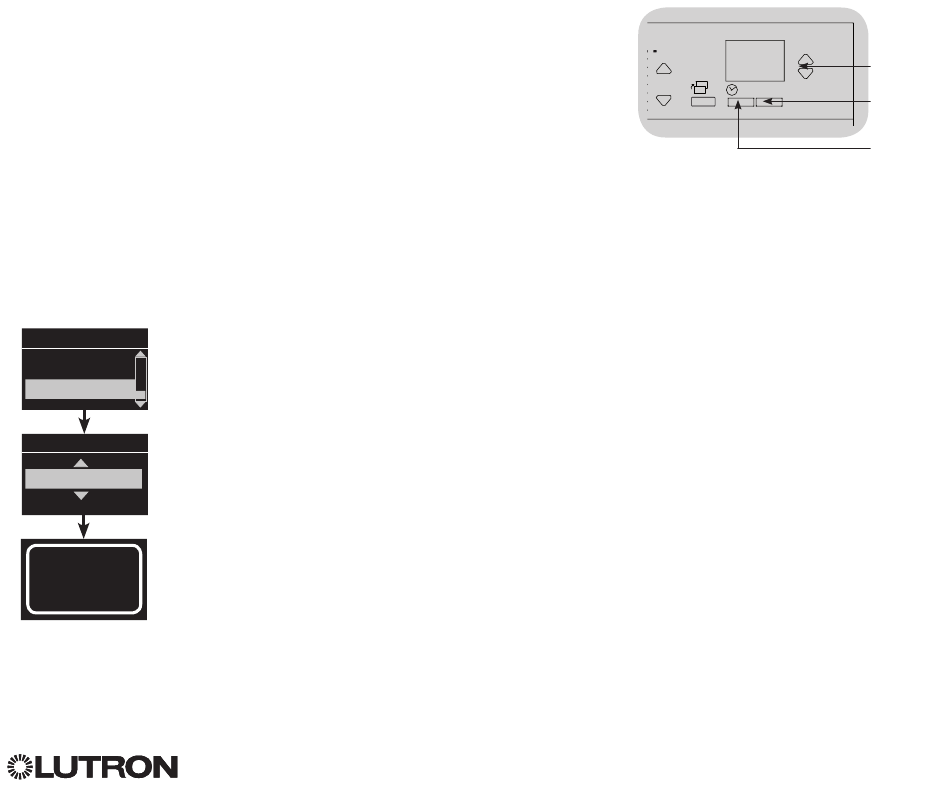

1. Enter programming mode.
Main menu
2. Use the Master buttons to highlight "Wireless Mode" and press
Shade labels
the "OK" button to accept.
Wireless Mode
3. Use the Master buttons to highlight the desired wireless mode,
and press the "OK" button to accept.
4. The info screen will display a confirming "Saved" message.
Wireless Mode
5. Exit programming mode.
Enabled (30 minutes)
Note: The wireless signal has a range of 30 ft (9 m) through
Saved
Saved
®
1 9
standard construction or 60 ft (18 m) line of sight.
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 16
2 10 3 11 4 12 5 13 6 14 7 15 8 16
9-16
1-8
OK

FCC Information

Changes or modifications not expressly approved
by Lutron Electronics Co. could void the user's
authority to operate this equipment.
Note: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
rules. Operation is subject to the following: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
These limits are designed to provide reasonable
protection against harmful interference in a
residential and commercial installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio or television
reception. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
