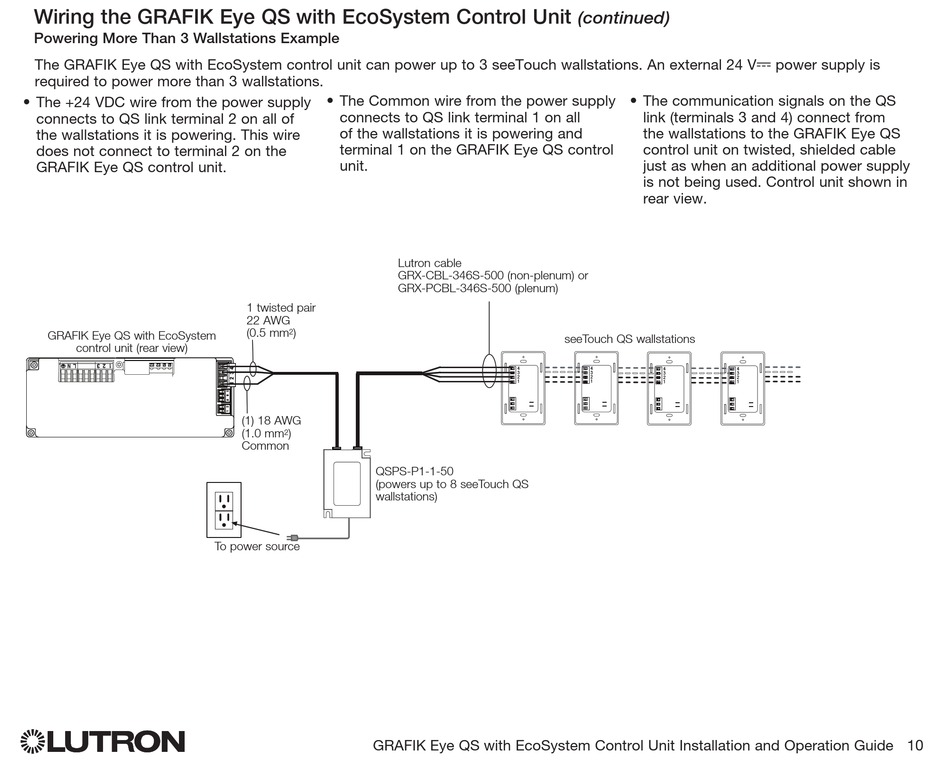

Wiring the GRAFIK Eye QS with EcoSystem Control Unit

Powering More Than 3 Wallstations Example

The GRAFIK Eye QS with EcoSystem control unit can power up to 3 seeTouch wallstations. An external 24 V- power supply is
required to power more than 3 wallstations.
• The +24 VDC wire from the power supply
connects to QS link terminal 2 on all of
the wallstations it is powering. This wire
does not connect to terminal 2 on the
GRAFIK Eye QS control unit.
GRAFIK Eye QS with EcoSystem
control unit (rear view)
®
• The Common wire from the power supply
connects to QS link terminal 1 on all
of the wallstations it is powering and
terminal 1 on the GRAFIK Eye QS control
unit.
1 twisted pair
22 AWG
(0.5 mm )
2
(1) 18 AWG
(1.0 mm )
2
Common
QSPS-P1-1-50
(powers up to 8 seeTouch QS
wallstations)
To power source
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 10
Lutron cable
GRX-CBL-346S-500 (non-plenum) or
GRX-PCBL-346S-500 (plenum)
seeTouch QS wallstations
4
3
2
1
(continued)
• The communication signals on the QS
link (terminals 3 and 4) connect from
the wallstations to the GRAFIK Eye QS
control unit on twisted, shielded cable
just as when an additional power supply
is not being used. Control unit shown in
rear view.
4 4 4
3 3 3
2
2 2
1 1 1
