Setting the Security Password

A four-digit password can be set as a security feature to protect the
programming settings on the GRAFIK Eye QS control unit.

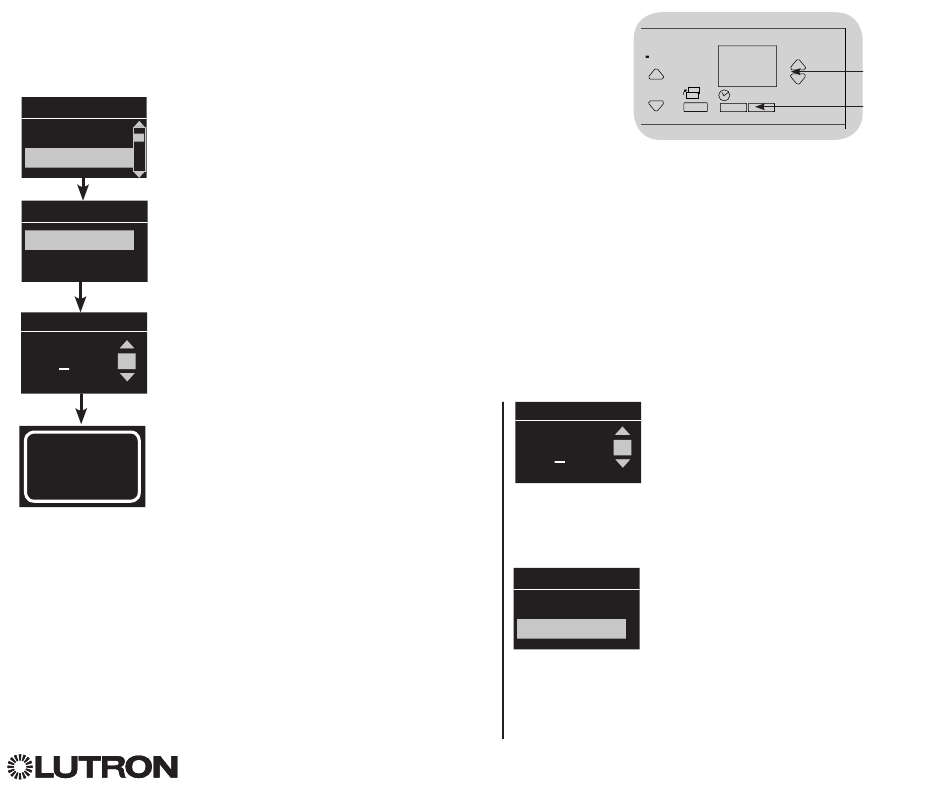

1. Enter programming mode
Diagnostics
2. Select "Diagnostics" and press the "OK" button
Reset USB
to accept.
Password
3. Select "Password" and press the "OK" button
to accept.
4. Select "Set Password" and press the "OK" button
Password
to accept.
5. You will be prompted to input a four-digit password.
Set Password
Use the Master buttons to scroll through the
Disable
characters (uppercase letters and numbers 0 through
9 only). The character you are currently changing
in the password will appear underlined on the info
screen. Press OK to select the desired character,
Password
and repeat for the remaining characters.
4 / 4
The info screen will confirm that your setting has
D
1: ABCD
been saved.
6. Exit programming mode.
Saved
®
(continued)
1 9 2 10 3 11 4 12 5 13
Enter Password
1: * * * *
Password
Set Password
Disable
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 71
6 14 7 15 8 16
9-16
1-8
When you re-enter programming mode
after setting your password, you will be
4 / 4
prompted to enter your password. Use
D
the method in Step 5 above to select and
enter each character.
Note: The characters will appear on the
info screen as asterisks.
To disable your password, follow Steps
1 through 4 of "Setting the Security
Password", and select "Disable" on the
Password menu.
Master
buttons
OK
"OK"
button
