Completing Installation of the GRAFIK Eye QS with EcoSystem Control Unit

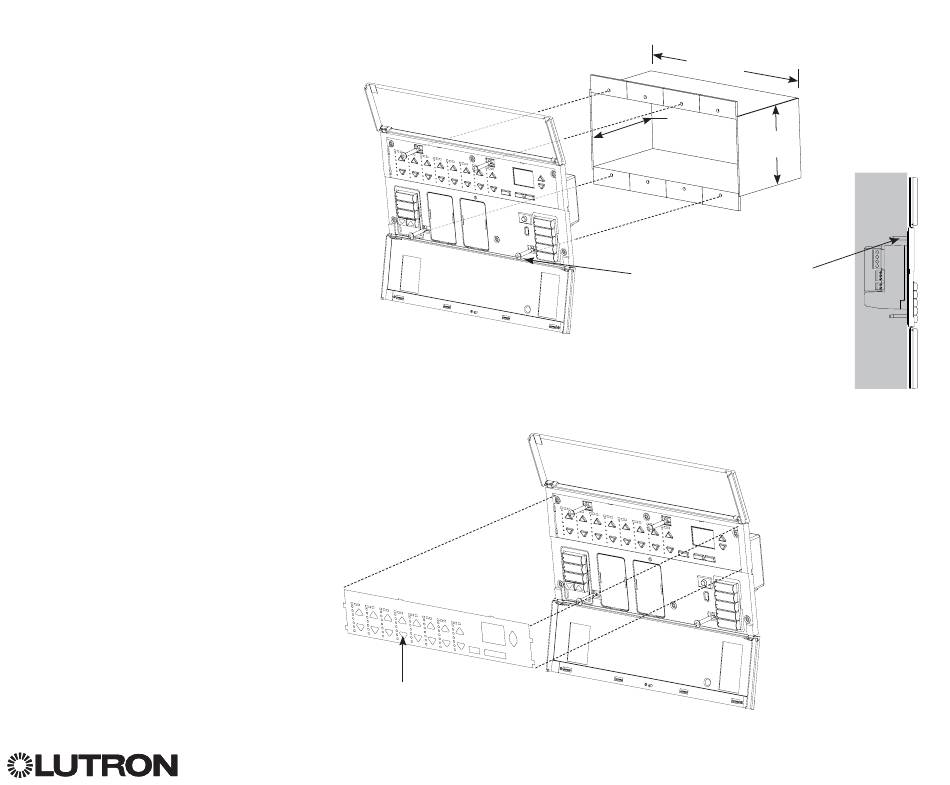

1. Mount the control unit in the wallbox as
shown using the four screws pro vid ed.
Note: Follow all local and national
electrical codes when installing
IEC PELV/NEC Class 2 wiring
®
with line voltage/mains wiring.
2. Verify installation:
• Restore power.
• Press the top scene button. The LED
will light.
• Press the zone raise and lower buttons.
Make sure the control unit is dimming all
connected loads.
3. Apply the protective overlay to the
control unit.
®
Protective overlay
(apply after installation)
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 11
7.9 in
(200 mm)
3.5 in
(87 mm)
3.75 in
(95 mm)
Note: When tightening mounting
screws, make sure that the
hinged cover and faceplate
will open fully, as shown.
Wall
