Zone Button Operation

Each zone column (LEDs and buttons)
represents one zone of lights. On 16-zone
units, the page button toggles between
zones 1 through 8 and zones 9 through
16. Page LEDs above each column will
indicate which zone is currently active on
the control unit. Pressing any button on
a column turns on the info screen and
displays the zone's current light level and
current energy savings.
Pressing the raise and lower buttons on a
zone causes different actions depending
on zone type (see below).
Dimmable zones:
• Press and hold to raise/lower all lights in a
zone; release to stop
• Press raise or lower to stop a zone that is
fading
• Raising lights from off to full on or lowering
from full on to off takes 5 seconds
• Press raise and lower simultaneously to
toggle between full on and off
• Press and hold lower for 6 seconds after
the zone has gone to 0% light level to
set the zone as unaffected in the current
scene. The zone will not change when this
scene is initiated, and the Master buttons
will not raise/lower the zone in this scene.
Non-dim zones:
• Press raise to turn zone on
• Press lower to turn zone off
Note: To set zone types, see the zone
setup section.
®

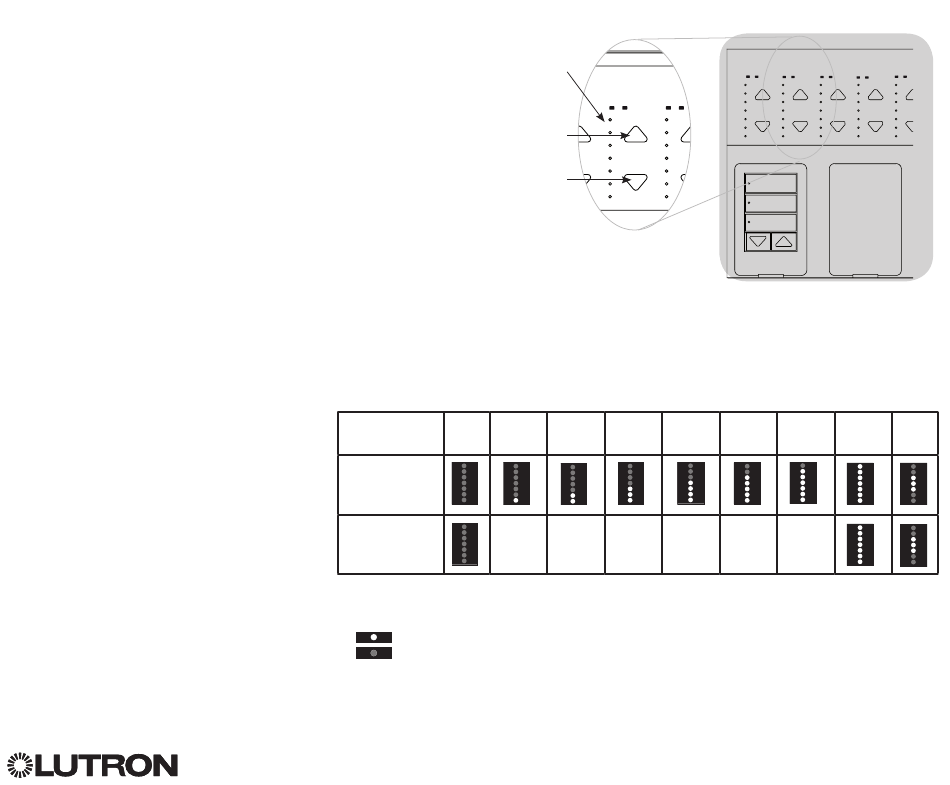

Zone LEDs
LEDs indicate
light level
(see below)
Zone Raise
Zone Lower

Zone LED Displays for % of Lighting Levels

Light Level Off 1–17
(%)
Dimmable
Load Types
Non-Dim
Load Types
Legend:
UA = Unaffected (lights are not affected by
scene button or Master buttons)
LED on
LED off
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 14
1 9 2 10 3 11 4 12
18-33 34-49 50-66 67-82
1 9 2 10 3 11 4 12 5 13
5 13 6 14 7 15
83-99 On/ UA
100
6 14 7
8 16
