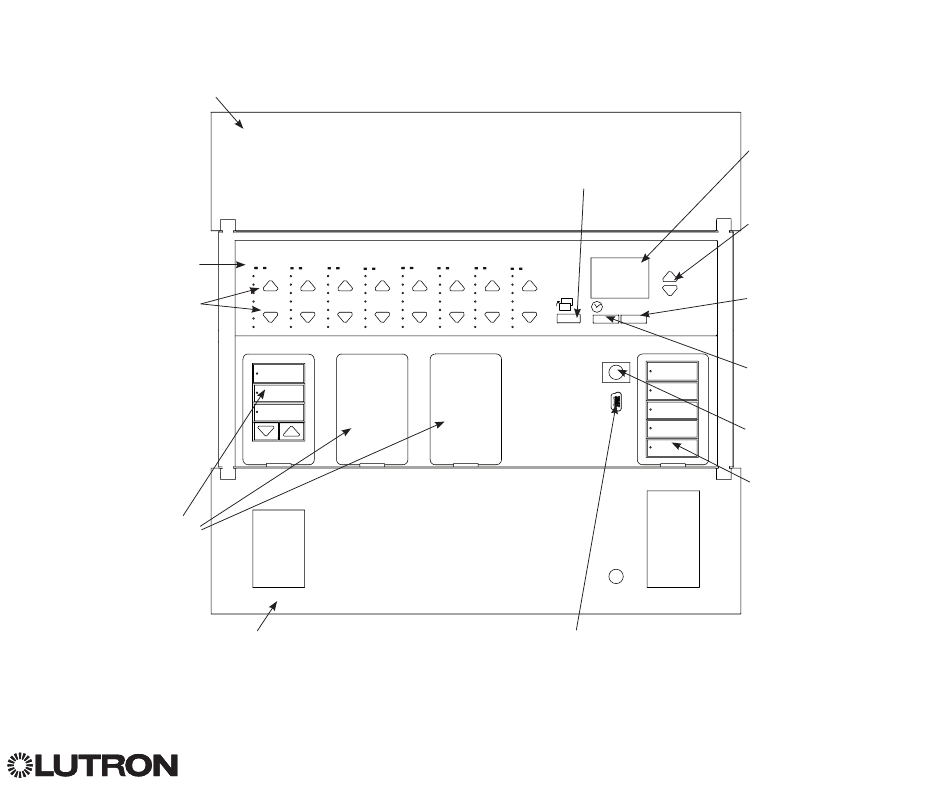

Features and Functions of the GRAFIK Eye QS with EcoSystem Control Unit
Hinged faceplate
Zone numbers
Zone raise/lower buttons
Zone LEDs display current
lighting zone levels
Note: Zones 1, 2, and 3 are
integral line voltage dimming
zones that can control line
voltage loads. Remaining zones
are EcoSystem zones only.
Zones 1, 2, and 3 can be either
EcoSystem zones or line voltage
zones (no zone can be both)
Optional Shade
button groups
Preset and raise/lower
buttons with integral LEDs
(maximum of 3 button
groups)
Hinged faceplate
Note: 6-zone control unit will show only zones 1 through 6.
®
1 9 2 10 3 11 4 12 5 13
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 3
Page button
Switches between displaying
zones 1 to 8 and 9 to 16 on
16-zone unit
6 14 7 15 8 16
9-16
1-8
USB type mini B
For programming via PC
Info screen
Displays status or
programming functions
Master buttons
Temporarily raise and lower
lighting levels on unit
"OK" button
OK
Used for programming
Timeclock button
Displays current
timeclock info
Infrared receiver
For handheld remote use
Scene buttons
With integral scene
indicator LEDs
