Labeling a Scene (optional)

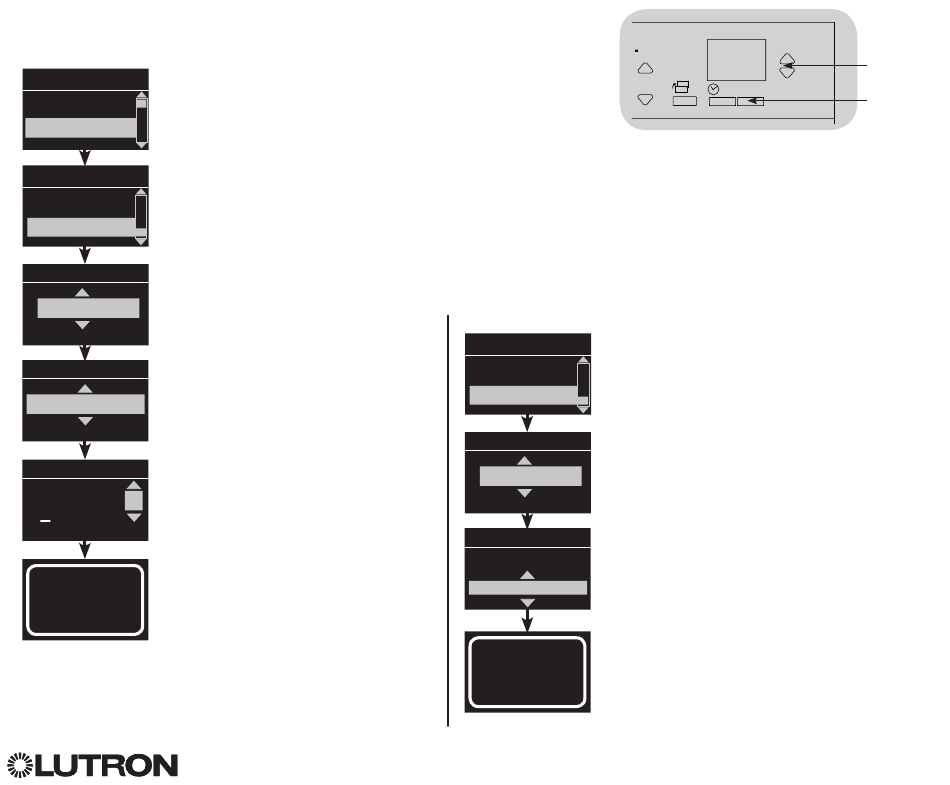

1. Enter programming mode.
Main menu
2. Use the Master buttons to highlight
Timeclock
"Scene setup" and press the
"OK" button to accept.
Scene setup
3. Use the Master buttons to highlight
"Labels" and press the "OK" button
Scene setup
to accept.
4. Use the Master buttons to highlight
Levels
your desired scene. Press the
Labels
Labels
"OK" button to accept.
5. Use the Master buttons to
highlight "Custom" and press the
Select scene:
"OK" button to accept.
6. Use the Master buttons to scroll
Scene 1
through the characters (lowercase
and uppercase letters, plus numbers
0 through 9). The character you are
Label scene 1
currently changing will be underlined
on the screen. Press OK to select
Custom
the character you want, then repeat
for all available characters. Choose
a space (no character) and press OK
for any remaining characters. Press
Label scene 1
the "OK" button to accept.
1 / 10
7. The info screen will confirm that
A
1: A your name has been saved.
8. Exit programming mode.
Saved
®
1 9 2 10 3 11 4 12 5 13

Enabling/Disabling Daylighting in a Scene

Scene setup
Labels
Labels
Daylighting
Daylighting
Scene 1
Scene 1
Daylighting
Enable
Saved
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 22
6 14 7 15 8 16
9-16
1-8
1. Enter programming mode.
2. Use the Master buttons to highlight "Scene
setup" and press the "OK" button to accept.
3. Use the Master buttons to highlight "Daylighting"
and press the "OK" button to accept.
4. Use the Master buttons to highlight your desired
scene. Press the "OK" button to accept.
5. Use the Master buttons to select "Enable" or
"Disable". When daylighting is disabled in a
scene, the GRAFIK Eye QS control unit will
not respond to daylight sensors information
when that scene is active.
Press OK to save.
6. Exit programming mode.
