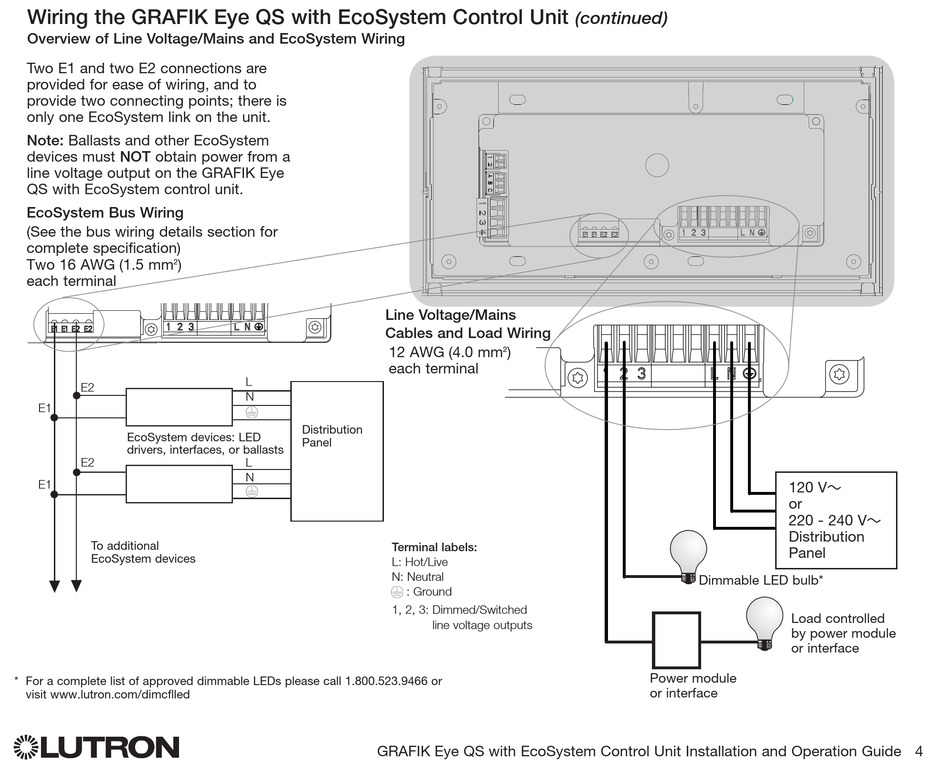

Wiring the GRAFIK Eye QS with EcoSystem Control Unit
Overview of Line Voltage/Mains and EcoSystem Wiring
Two E1 and two E2 connections are
provided for ease of wiring, and to
provide two connecting points; there is
only one EcoSystem link on the unit.
Note: Ballasts and other EcoSystem
devices must NOT obtain power from a
line voltage output on the GRAFIK Eye
QS with EcoSystem control unit.
EcoSystem Bus Wiring
(See the bus wiring details section for
complete specification)
Two 16 AWG (1.5 mm
)
2
each terminal
E2
E1
EcoSystem devices: LED
drivers, interfaces, or ballasts
E2
E1
To additional
EcoSystem devices
* For a complete list of approved dimmable LEDs please call 1.800.523.9466 or
visit www.lutron.com/dimcflled
®
Line Voltage/Mains
Cables and Load Wiring
12 AWG (4.0 mm
each terminal
L
N
Distribution
Panel
L
N
Terminal labels:
L: Hot/Live
N: Neutral
: Ground
1, 2, 3: Dimmed/Switched
GRAFIK Eye QS with EcoSystem Control Unit Installation and Operation Guide 4
(continued)
)
2
line voltage outputs
120 V~
or
220 - 240 V~
Distribution
Panel
Dimmable LED bulb*
Load controlled
by power module
or interface
Power module
or interface
