Chapter 2 DSAM Meter Operation
Using AutoTests Mode
Using Cable
Modem
Autotest
46

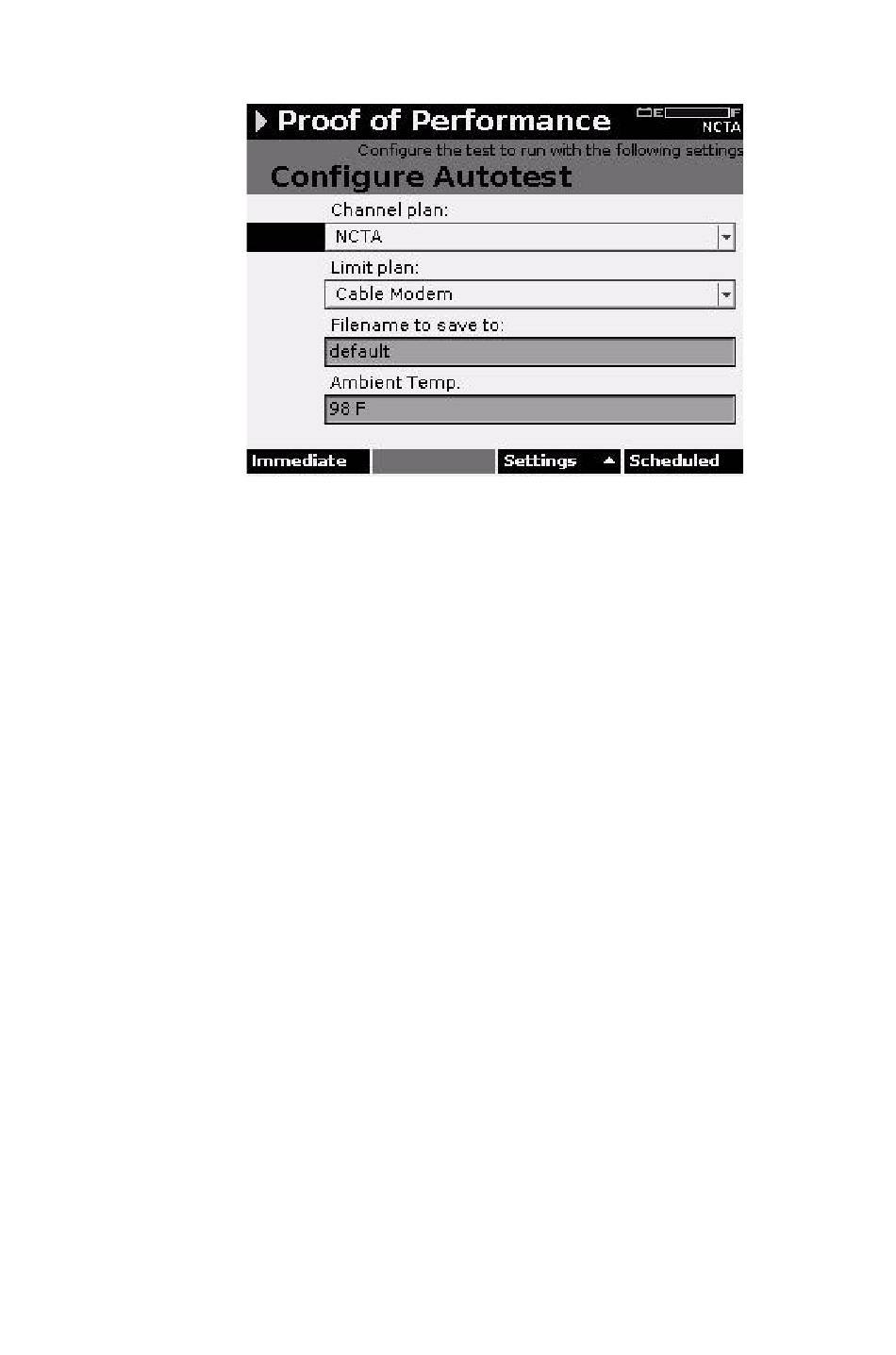

Figure 33 Proof of Performance Autotest Mode
Screen
Each Proof of Performance AutoTest is based on four
types of configuration:
– The selection of channels to be tested
– The parameters of your limit sets
– Your selection of a set measurement limits based on
test location information (Location Type, Amp ID,
Area, etc.)
– As an option the selection of a configured schedule
Press the Immediate softkey to begin a test that does not
require a specified time period. Press the Scheduled
softkey to schedule a test for a specified time period.
(Figure 33).
To access the Cable Modem Autotest mode, use the arrow
keys to highlight the Cable Modem option on the
AutoTests mode menu
Enter. The first Combo Test screen you see will look
similar to Figure 34 on page
DSAM Product Family Quick-Start Guide Rev. 001
(Figure 29 on page
47.
42), and press
