Chapter 2 DSAM Meter Operation
Using Measure Mode
36
primary DOCSIS® channels should be configured in the
channel plan, but they will not show up in the list of
DOCSIS® channels.
To access DOCSIS® Mode, use the arrow keys to high-
light the DOCSIS® option on the Measure mode menu
(Figure 16 on page
Shift key and the DOCSIS® softkey.) The first DOCSIS®
mode screen you see will look similar to

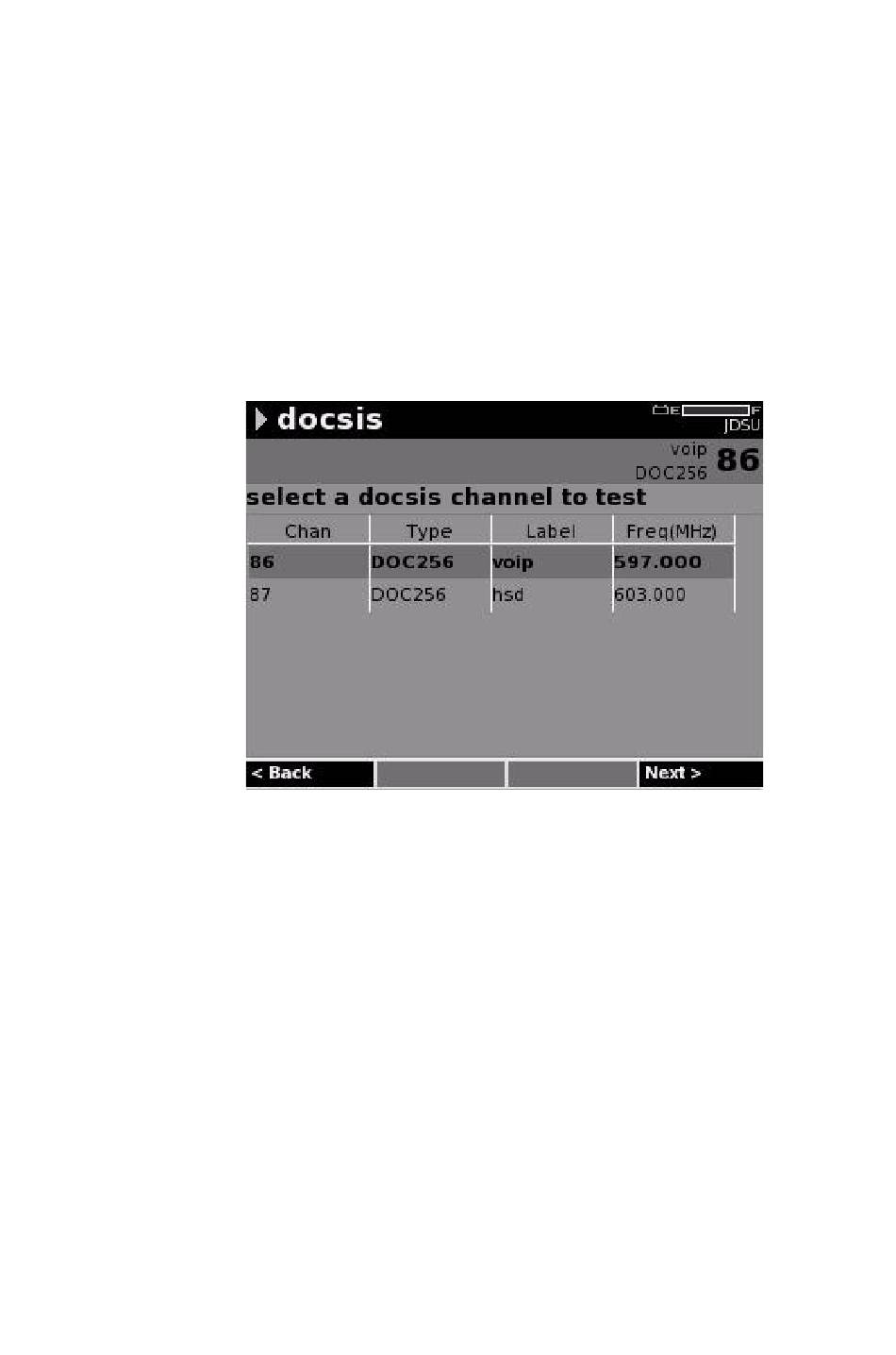

Figure 22 DOCSIS® Mode Screen
To configure DOCSIS® Mode:
– Confirm that you are testing the correct channel plan
(plan label is in upper right corner),
– Confirm that you are testing the correct DOCSIS®
channel in that plan,
– Confirm (if required by the system administrator) that
the roving MAC address on this meter is recognized
by the CMTS,
– Select a set of measurement limits (based on test
location), and
DSAM Product Family Quick-Start Guide Rev. 001
30), and press Enter. (Or, press the
Figure 22.
