Chapter 2 DSAM Meter Operation
Initial Set-Up

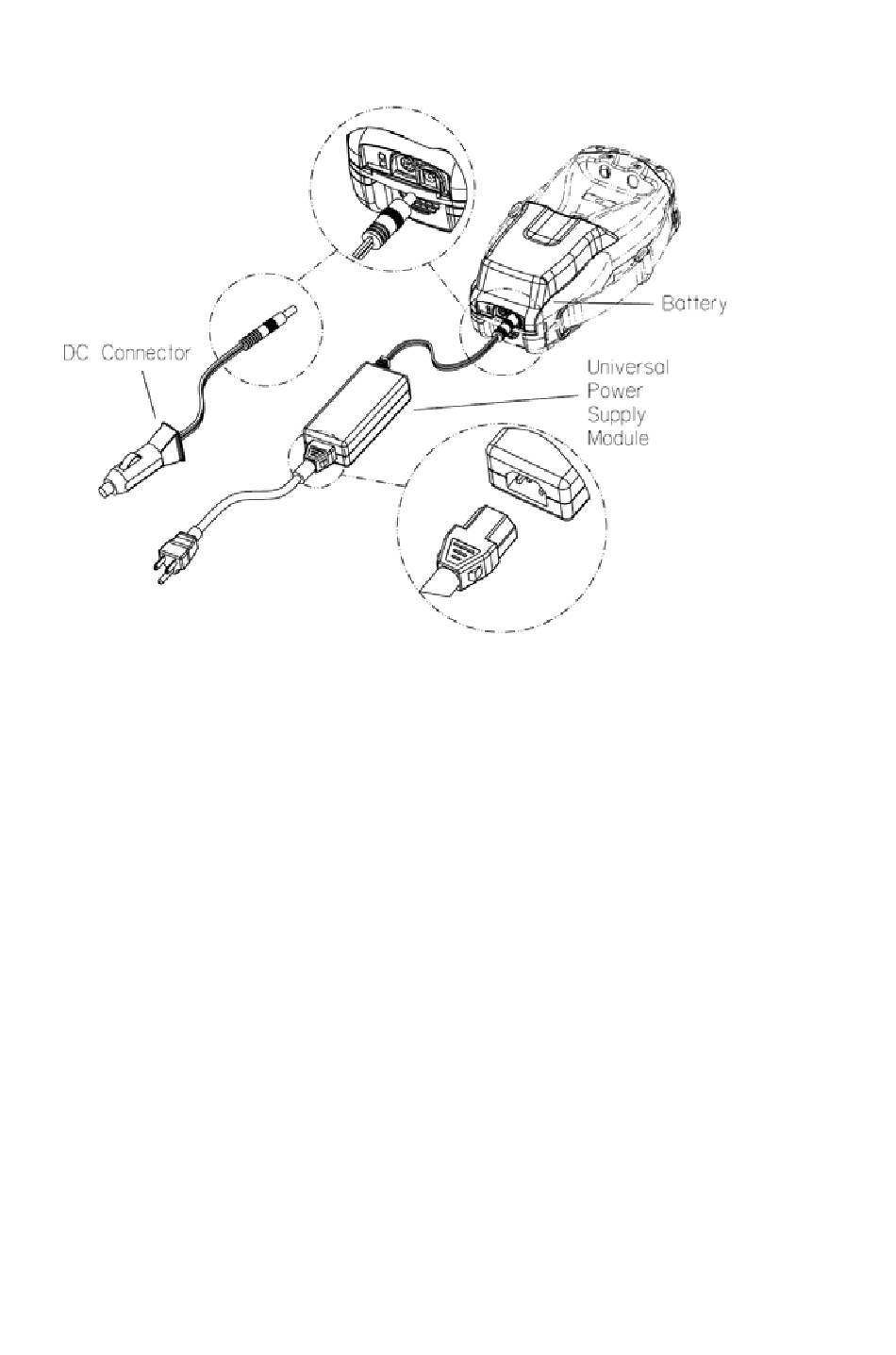

Figure 2 External Power Components
Connecting
the RF Cable
Making
Additional
Connections
12
To conduct measurements with your DSAM meter,
connect the RF cable of the system you are servicing to
the RF connection port on the back panel of the meter.
Use the Ethernet port located on the top of the meter to
clone settings with other DSAM meters (see
DSAM Meters" on page
with optional FDM utility software (see
Mode" on page 47).
(The headphone jack and USB ports located on the top of
the meter will be used in future DSAM meter applications.)
DSAM Product Family Quick-Start Guide Rev. 001
52) or to synchronize your data
"Using Access
"Cloning
