Chapter 2 DSAM Meter Operation
Initial Set-Up
Removing the
Battery
10
To remove the battery
1 Ensure the power is off.
CAUTION INSTRUMENT DAMAGE
Failure to turn the power off before removing the batter-
ies from the DSAM meter could damage internal com-
ponents and/or corrupt the software. Always power
down the unit before removing the batteries.
2 Hold the meter securely with the display screen facing
away from you and the keypad in the palm of your
hand.
3 Press the release button
above the battery in the center of the back of the
meter.

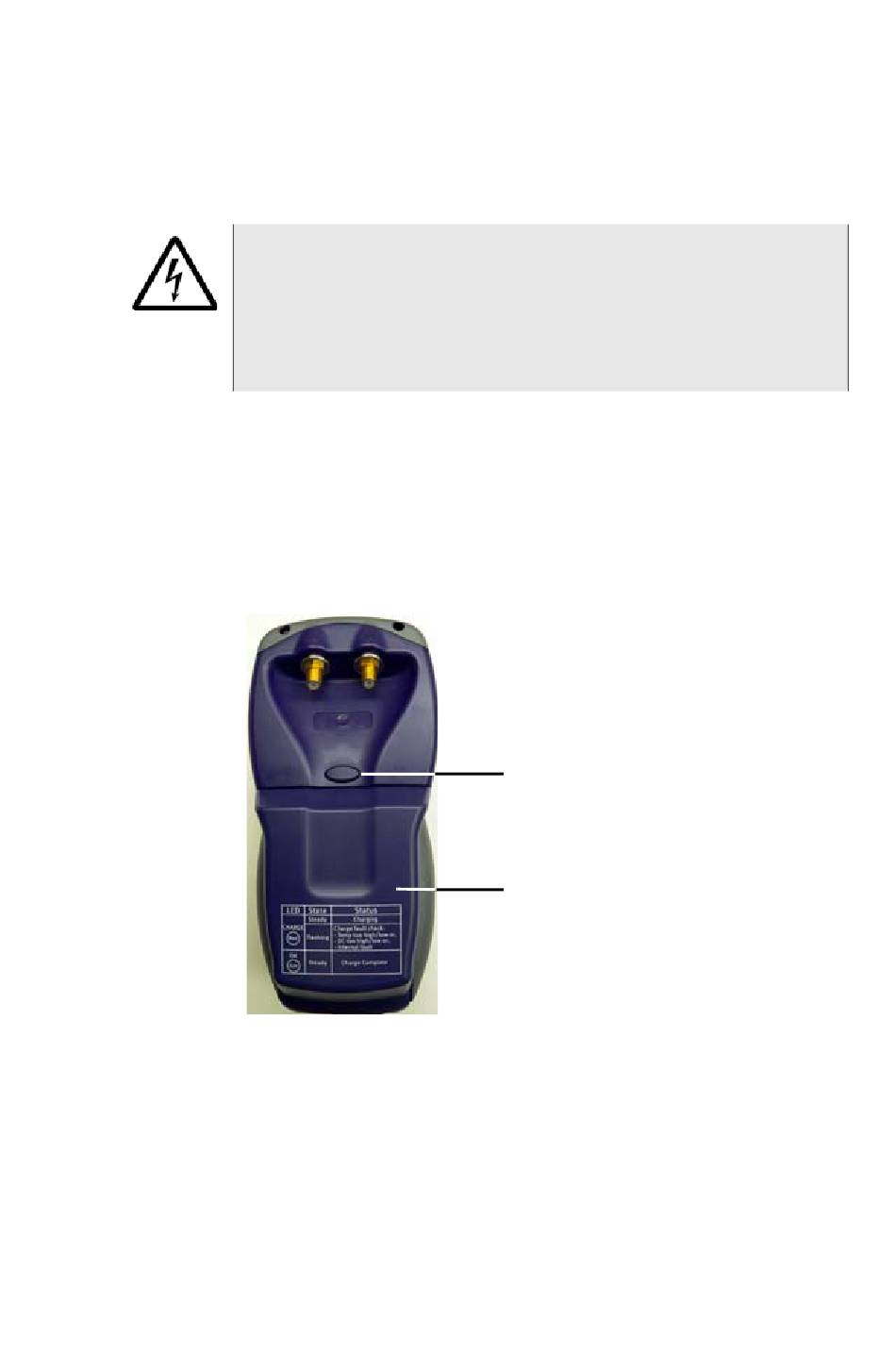

Figure 1 Back of DSAM Meter
4 When released, gently pull the battery out of the
cavity in the back of the meter
DSAM Product Family Quick-Start Guide Rev. 001
(Figure 1) located directly
Battery Release
Button
Battery
