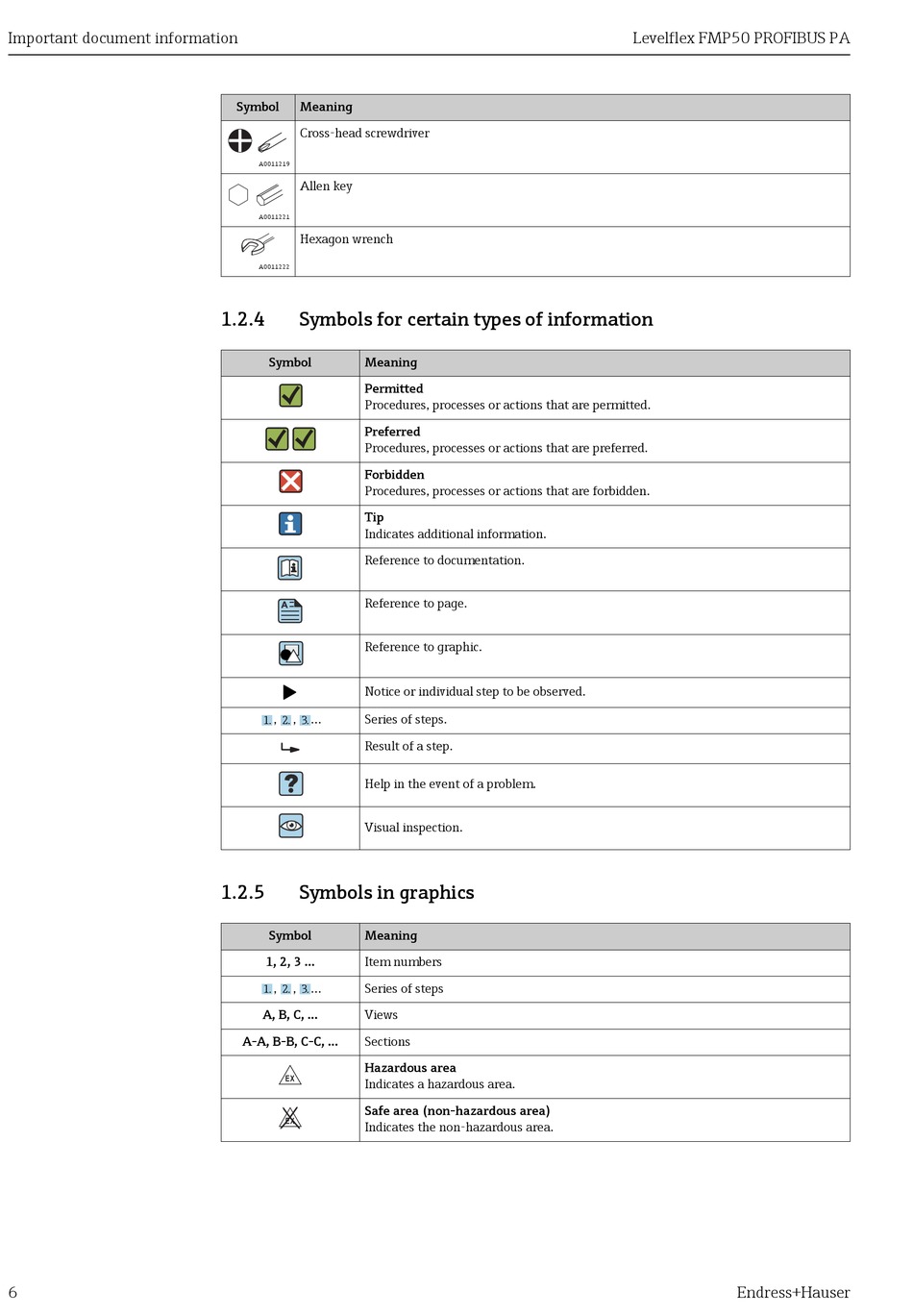

Important document information
6
Symbol Meaning
Cross-head screwdriver
A0011219
Allen key
A0011221
Hexagon wrench
A0011222
1.2.4

Symbols for certain types of information

Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
Reference to page.
A
Reference to graphic.
Notice or individual step to be observed.
, , ... Series of steps.
1. 2. 3.
Result of a step.
Help in the event of a problem.
Visual inspection.
1.2.5

Symbols in graphics

Symbol Meaning
1, 2, 3 ... Item numbers
, , ... Series of steps
1. 2. 3.
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
-
Indicates a hazardous area.
Safe area (non-hazardous area)
.
Indicates the non-hazardous area.
Levelflex FMP50 PROFIBUS PA
Endress+Hauser
