Electrical connection
54
 15 Dimensions: mm (in)

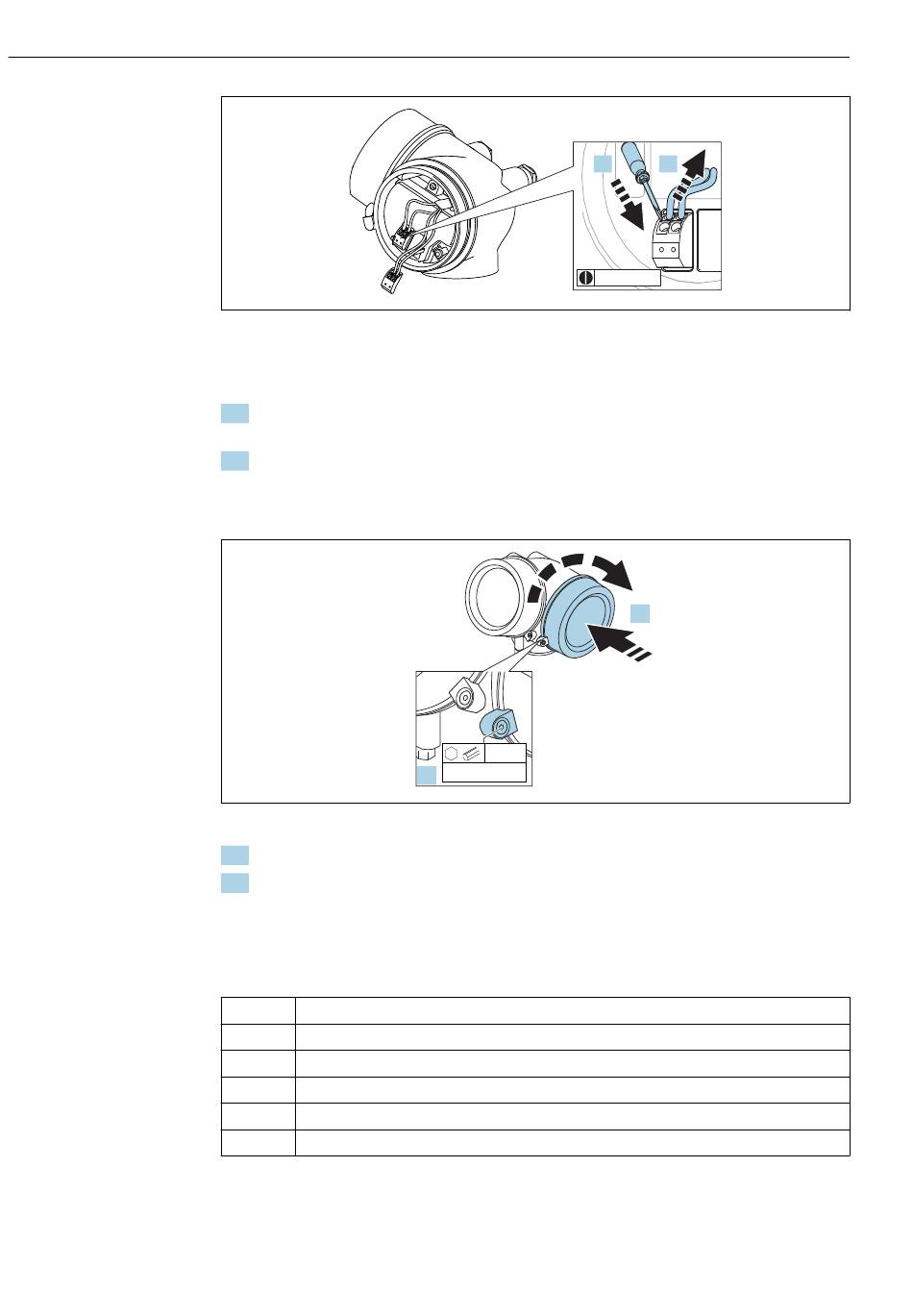

To remove cables from the terminal:
1. Using a flat-blade screwdriver ≤ 3 mm, press down on the slot between the two
terminal holes
2. while simultaneously pulling the cable end out of the terminal.
7.2.4

Closing connection compartment cover

1. Screw back firmly connection compartment cover.
2. Turning securing clamp 90 ° counterclockwise and tighten the clamp with
2.5 Nm (1.84 lbf ft) again using the Allen key (3 mm).
7.3

Post-connection check

 Is the device or cable undamaged (visual check)?
 Do the cables comply with the requirements ?
 Do the cables have adequate strain relief?
 Are all cable glands installed, securely tightened and leak-tight?
 Does the supply voltage match the specifications on the nameplate?
 Is the terminal assignment correct?
3 mm
2,5 Nm
2.
Levelflex FMP50 PROFIBUS PA
1. 2.
≤ 3 (0.12)
1.
Endress+Hauser
A0013661
A0021491
