4
BASIC OPERATION

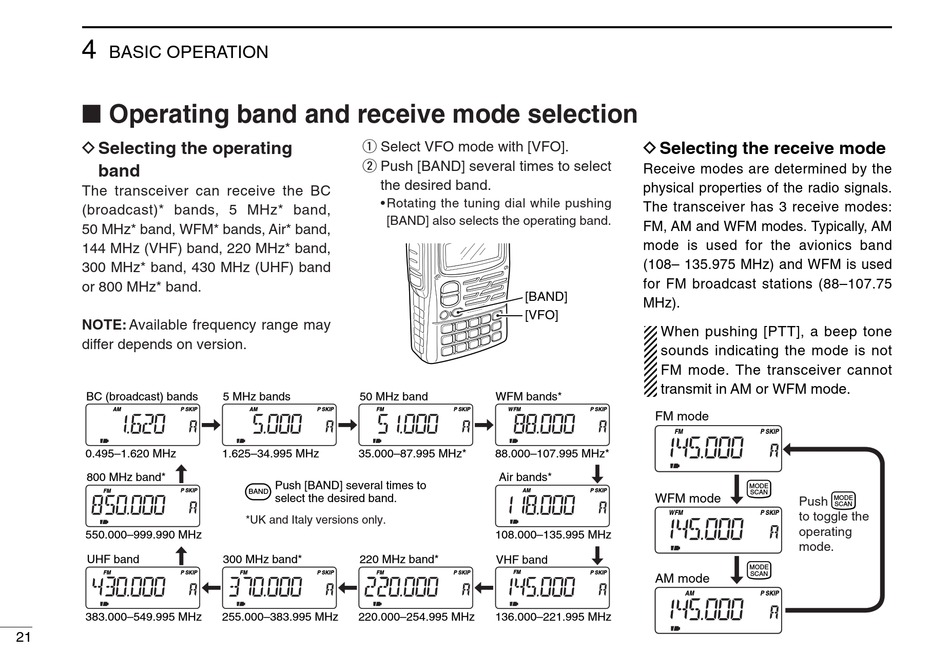

■ Operating band and receive mode selection

D Selecting the operating
band
The transceiver can receive the BC
(broadcast)* bands, 5 MHz* band,
50 MHz* band, WFM* bands, Air* band,
144 MHz (VHF) band, 220 MHz* band,
300 MHz* band, 430 MHz (UHF) band
or 800 MHz* band.
NOTE: Available frequency range may
differ depends on version.
BC (broadcast) bands
AM
P SKIP
0.495–1.620 MHz
800 MHz band*
FM P SKIP
550.000–999.990 MHz
UHF band
FM P SKIP
383.000–549.995 MHz
21
q Select VFO mode with [VFO].
w Push [BAND] several times to select
the desired band.
• Rotating the tuning dial while pushing
[BAND] also selects the operating band.
5 MHz bands 50 MHz band
AM P SKIP FM
1.625–34.995 MHz 35.000–87.995 MHz*
Push [BAND] several times to
BAND
select the desired band.
*UK and Italy versions only.
300 MHz band* 220 MHz band*
FM P SKIP FM
255.000–383.995 MHz 220.000–254.995 MHz
[BAND]
[VFO]
WFM bands*
P SKIP W FM P SKIP
88.000–107.995 MHz*
Air bands*
AM P SKIP
108.000–135.995 MHz
VHF band
FM
P SKIP P SKIP
136.000–221.995 MHz
D Selecting the receive mode
Receive modes are determined by the
physical properties of the radio signals.
The transceiver has 3 receive modes:
FM, AM and WFM modes. Typically, AM
mode is used for the avionics band
(108– 135.975 MHz) and WFM is used
for FM broadcast stations (88–107.75
MHz).
When pushing [PTT], a beep tone
sounds indicating the mode is not
FM mode. The transceiver cannot
transmit in AM or WFM mode.
FM mode
FM P SKIP
MODE
SCAN
WFM mode
Push
W FM P SKIP
to toggle the
operating
mode.
MODE
SCAN
AM mode
AM P SKIP
MODE
SCAN
