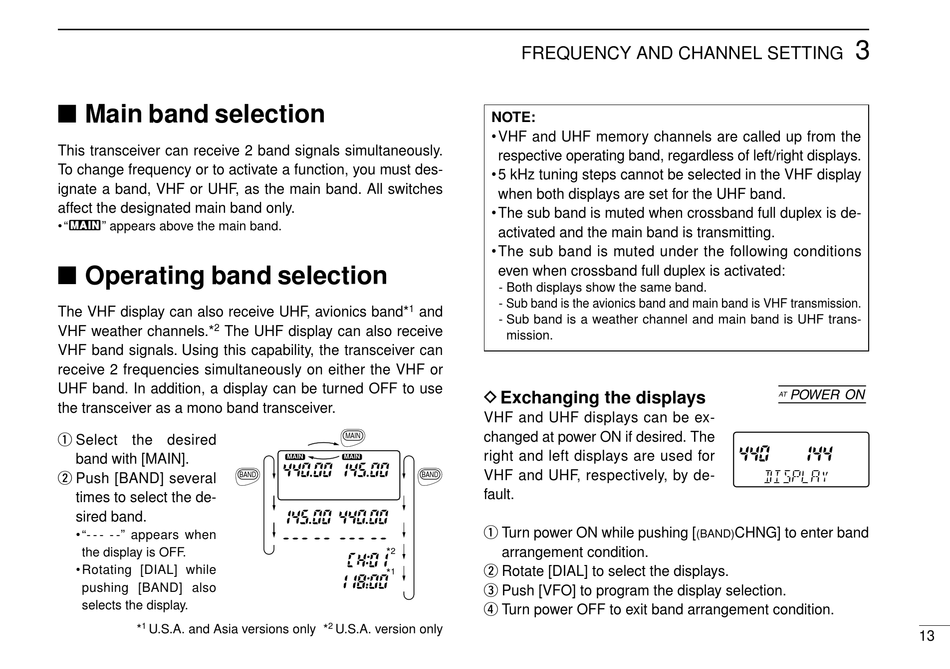

Main band selection

This transceiver can receive 2 band signals simultaneously.
To change frequency or to activate a function, you must des-
ignate a band, VHF or UHF, as the main band. All switches
affect the designated main band only.
• "Q" appears above the main band.

Operating band selection

The VHF display can also receive UHF, avionics band*
2
VHF weather channels.* The UHF display can also receive
VHF band signals. Using this capability, the transceiver can
receive 2 frequencies simultaneously on either the VHF or
UHF band. In addition, a display can be turned OFF to use
the transceiver as a mono band transceiver.
q Select the desired
band with [MAIN].
w Push [BAND] several
times to select the de-
sired band.
• "- - - - -" appears when
the display is OFF.
• Rotating [DIAL] while
pushing [BAND] also
selects the display.
1
* U.S.A. and Asia versions only *
1
and
MAIN
MAIN MAIN
BAND
* 2
1
*
2
U.S.A. version only
FREQUENCY AND CHANNEL SETTING
NOTE:
• VHF and UHF memory channels are called up from the
respective operating band, regardless of left/right displays.
• 5 kHz tuning steps cannot be selected in the VHF display
when both displays are set for the UHF band.
• The sub band is muted when crossband full duplex is de-
activated and the main band is transmitting.
• The sub band is muted under the following conditions
even when crossband full duplex is activated:
- Both displays show the same band.
- Sub band is the avionics band and main band is VHF transmission.
- Sub band is a weather channel and main band is UHF trans-
mission.
D Exchanging the displays
VHF and UHF displays can be ex-
changed at power ON if desired. The
right and left displays are used for
VHF and UHF, respectively, by de-
BAND
fault.
q Turn power ON while pushing [
arrangement condition.
w Rotate [DIAL] to select the displays.
e Push [VFO] to program the display selection.
r Turn power OFF to exit band arrangement condition.
3
]
CHNG] to enter band
(BAND)
13
