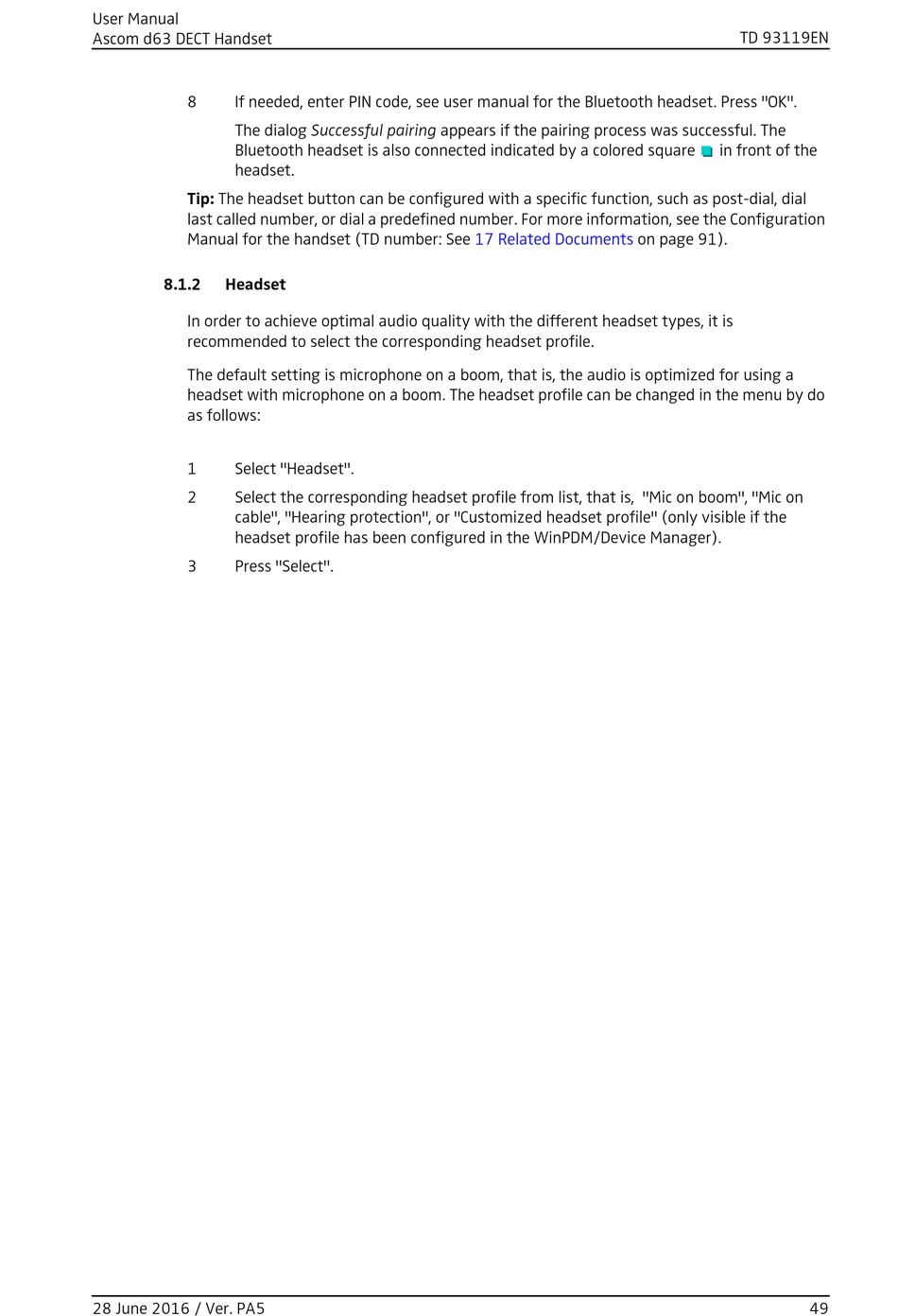

Headset - ASCOM d63 User Manual

User Manual
Ascom d63 DECT Handset
8 If needed, enter PIN code, see user manual for the Bluetooth headset. Press "OK".
The dialog Successful pairing appears if the pairing process was successful. The
Bluetooth headset is also connected indicated by a colored square

headset.

Tip: The headset button can be configured with a specific function, such as post-dial, dial
last called number, or dial a predefined number. For more information, see the Configuration
Manual for the handset (TD number: See
8.1.2 Headset
In order to achieve optimal audio quality with the different headset types, it is
recommended to select the corresponding headset profile.
The default setting is microphone on a boom, that is, the audio is optimized for using a
headset with microphone on a boom. The headset profile can be changed in the menu by do
as follows:
1 Select "Headset".
2 Select the corresponding headset profile from list, that is, "Mic on boom", "Mic on
cable", "Hearing protection", or "Customized headset profile" (only visible if the
headset profile has been configured in the WinPDM/Device Manager).
3 Press "Select".
28 June 2016 / Ver. PA5
17 Related Documents on page 91).
TD 93119EN
in front of the
49
