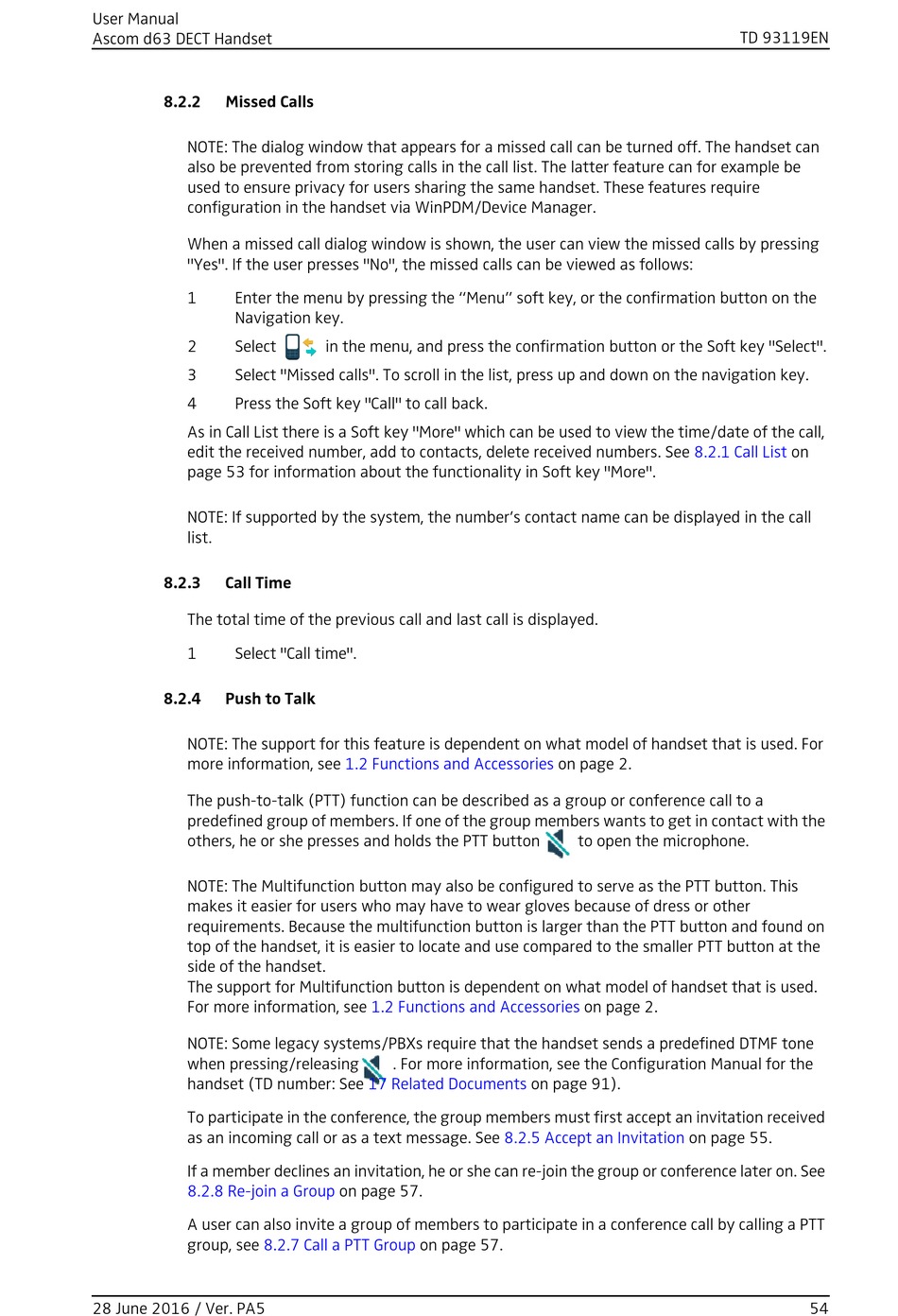

Missed Calls; Call Time; Push To Talk - ASCOM d63 User Manual

User Manual
Ascom d63 DECT Handset
8.2.2

Missed Calls

NOTE: The dialog window that appears for a missed call can be turned off. The handset can
also be prevented from storing calls in the call list. The latter feature can for example be
used to ensure privacy for users sharing the same handset. These features require
configuration in the handset via WinPDM/Device Manager.
When a missed call dialog window is shown, the user can view the missed calls by pressing
"Yes". If the user presses "No", the missed calls can be viewed as follows:
1 Enter the menu by pressing the "Menu" soft key, or the confirmation button on the
Navigation key.
2 Select
3 Select "Missed calls". To scroll in the list, press up and down on the navigation key.
4 Press the Soft key "Call" to call back.
As in Call List there is a Soft key "More" which can be used to view the time/date of the call,
edit the received number, add to contacts, delete received numbers. See
page 53 for information about the functionality in Soft key "More".
NOTE: If supported by the system, the number's contact name can be displayed in the call
list.
8.2.3

Call Time

The total time of the previous call and last call is displayed.
1 Select "Call time".
8.2.4

Push to Talk

NOTE: The support for this feature is dependent on what model of handset that is used. For
more information, see
The push-to-talk (PTT) function can be described as a group or conference call to a
predefined group of members. If one of the group members wants to get in contact with the
others, he or she presses and holds the PTT button
NOTE: The Multifunction button may also be configured to serve as the PTT button. This
makes it easier for users who may have to wear gloves because of dress or other
requirements. Because the multifunction button is larger than the PTT button and found on
top of the handset, it is easier to locate and use compared to the smaller PTT button at the
side of the handset.
The support for Multifunction button is dependent on what model of handset that is used.
For more information, see
NOTE: Some legacy systems/PBXs require that the handset sends a predefined DTMF tone
when pressing/releasing
handset (TD number: See
To participate in the conference, the group members must first accept an invitation received
as an incoming call or as a text message. See
If a member declines an invitation, he or she can re-join the group or conference later on. See
8.2.8 Re-join a Group
A user can also invite a group of members to participate in a conference call by calling a PTT
group, see
28 June 2016 / Ver. PA5
in the menu, and press the confirmation button or the Soft key "Select".
1.2 Functions and Accessories
1.2 Functions and Accessories
. For more information, see the Configuration Manual for the
17 Related Documents
on page 57.
8.2.7 Call a PTT Group on page 57.
on page 2.
to open the microphone.
on page 2.
on page 91).
8.2.5 Accept an Invitation
TD 93119EN
8.2.1 Call List on
on page 55.
54
