Ascom d63 DECT Handset

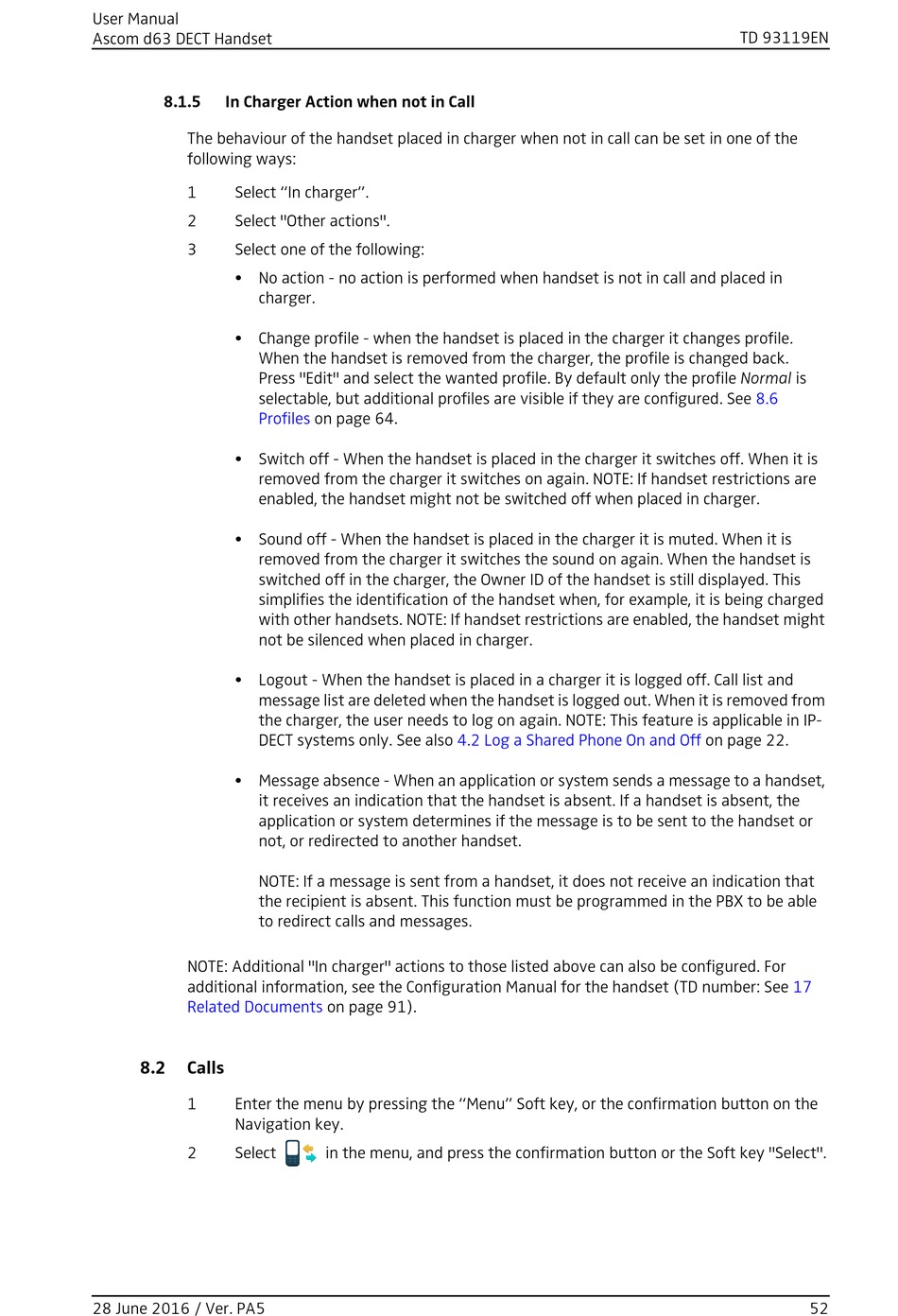

8.1.5

In Charger Action when not in Call

The behaviour of the handset placed in charger when not in call can be set in one of the
following ways:
1 Select "In charger".
2 Select "Other actions".
3 Select one of the following:
• No action - no action is performed when handset is not in call and placed in
charger.
• Change profile - when the handset is placed in the charger it changes profile.
When the handset is removed from the charger, the profile is changed back.
Press "Edit" and select the wanted profile. By default only the profile Normal is
selectable, but additional profiles are visible if they are configured. See
Profiles
• Switch off - When the handset is placed in the charger it switches off. When it is
removed from the charger it switches on again. NOTE: If handset restrictions are
enabled, the handset might not be switched off when placed in charger.
• Sound off - When the handset is placed in the charger it is muted. When it is
removed from the charger it switches the sound on again. When the handset is
switched off in the charger, the Owner ID of the handset is still displayed. This
simplifies the identification of the handset when, for example, it is being charged
with other handsets. NOTE: If handset restrictions are enabled, the handset might
not be silenced when placed in charger.
• Logout - When the handset is placed in a charger it is logged off. Call list and
message list are deleted when the handset is logged out. When it is removed from
the charger, the user needs to log on again. NOTE: This feature is applicable in IP-
DECT systems only. See also
• Message absence - When an application or system sends a message to a handset,
it receives an indication that the handset is absent. If a handset is absent, the
application or system determines if the message is to be sent to the handset or
not, or redirected to another handset. 

NOTE: If a message is sent from a handset, it does not receive an indication that
the recipient is absent. This function must be programmed in the PBX to be able
to redirect calls and messages.
NOTE: Additional "In charger" actions to those listed above can also be configured. For
additional information, see the Configuration Manual for the handset (TD number: See
Related Documents
8.2

Calls

1 Enter the menu by pressing the "Menu" Soft key, or the confirmation button on the
Navigation key.
2 Select
28 June 2016 / Ver. PA5
on page 64.
4.2 Log a Shared Phone On and Off
on page 91).
in the menu, and press the confirmation button or the Soft key "Select".
TD 93119EN
8.6
on page 22.
17
52
